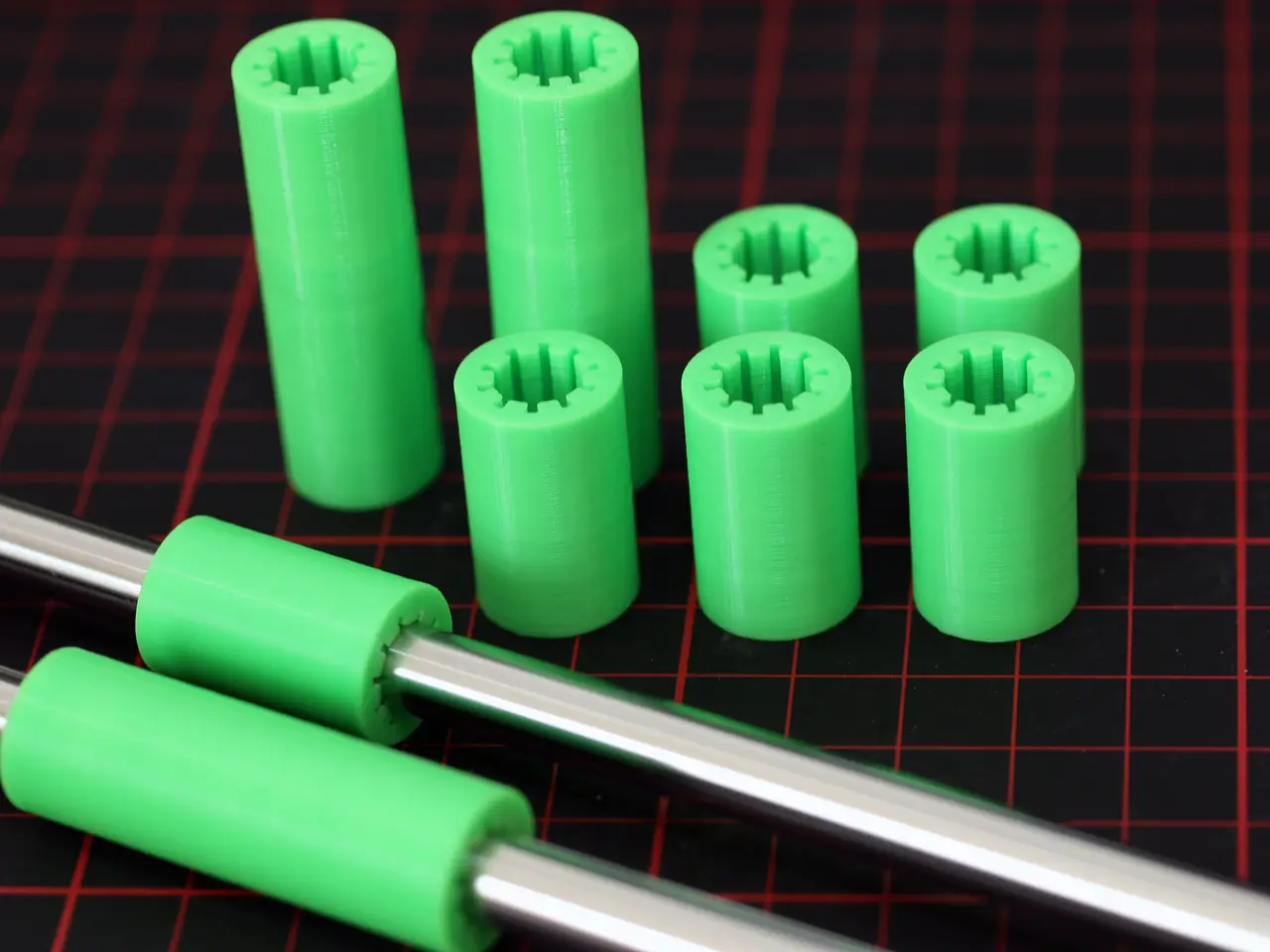

Customizable Linear Bushing / Bearing - LM8UU, LM8LUU, LM12UU, LM12LUU, LM16UU, ... IGUS like
por Dennis H. en Thingiverse
With this customizable design, you are able to create bushings, that will be printed in an optimal way. You can set the inner and outer diameter, the length, the extrusion width, number of perimeters and number of teeth. You can find a more detailed description above each variable in the MakerBot...
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Dennis H..
Archivos (19)
- linear_bushing_LM6UU_6.15ID_12.00OD.stl STL · 163 KB
- linear_bushing_LM6LUU_6.15ID_12.00OD.stl STL · 163 KB
- linear_bushing_LM8UU_8.15ID_15.00OD.stl STL · 174 KB
- linear_bushing_LM8LUU_8.15ID_15.00OD.stl STL · 174 KB
- linear_bushing_LM10UU_10.15ID_19.00OD.stl STL · 175 KB
- linear_bushing_LM10LUU_10.15ID_19.00OD.stl STL · 175 KB
- linear_bushing_LM12UU_12.15ID_21.00OD.stl STL · 165 KB
- linear_bushing_LM12LUU_12.15ID_21.00OD.stl STL · 165 KB
- linear_bushing_LM16UU_16.15ID_28.00OD.stl STL · 175 KB
- linear_bushing_LM6UU_chamfer_6.15ID_12.00OD.stl STL · 492 KB
- linear_bushing_LM6LUU_chamfer_6.15ID_12.00OD.stl STL · 492 KB
- linear_bushing_LM8UU_chamfer_8.15ID_15.00OD.stl STL · 515 KB
- linear_bushing_LM8LUU_chamfer_8.15ID_15.00OD.stl STL · 515 KB
- linear_bushing_LM10UU_chamfer_10.15ID_19.00OD.stl STL · 536 KB
- linear_bushing_LM10LUU_chamfer_10.15ID_19.00OD.stl STL · 536 KB
- linear_bushing_LM12UU_chamfer_12.15ID_21.00OD.stl STL · 488 KB
- linear_bushing_LM12LUU_chamfer_12.15ID_21.00OD.stl STL · 488 KB
- linear_bushing_LM16UU_chamfer_16.15ID_28.00OD.stl STL · 526 KB
- customizable_linear_bushing__v1.8.scad SCAD · 7 KB
- Categoría
- Para tu impresora
- Formatos
- STL, SCAD
- Descargas
- 99,024
- Publicado
Sobre este modelo

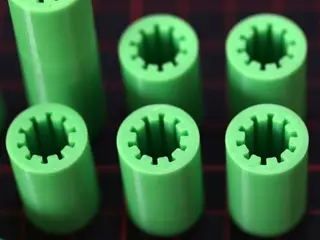

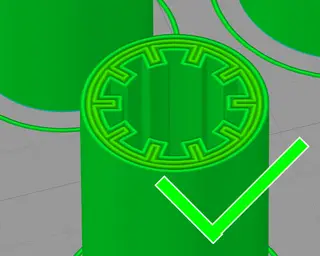

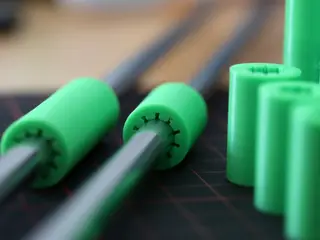

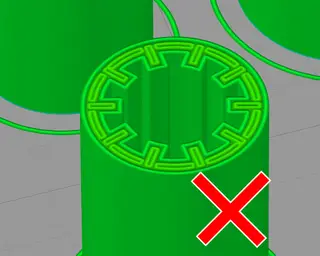

With this customizable design, you are able to create bushings, that will be printed in an optimal way. You can set the inner and outer diameter, the length, the extrusion width, number of perimeters and number of teeth. You can find a more detailed description above each variable in the MakerBot Customizer or OpenSCAD file. Please leave a comment, if you have any questions or problems! Updates - 2018-02-15: Groove settings added. - 2018-01-09: fixed inner diameter. Thanks to kerusursaone! - 2017-12-21: added chamfer angle option. - 2017-10-02: I still can't recognize any wear to the bushings. I seasoned the bushings a second time with PTFE spray (this time from WD-40), just to be sure. - 2017-08-15: partial fixed graphic glitch in customizer, if you are setting a chamfer - 2017-08-07: added chamfer setting in customizer. There will be a graphic glitch in the preview, but the .stl-File will be generated without any glitch. - 2017-06-14: After 3 months and 4kg filament, i couldn't recognize any wear to these bushings, printed in PLA. I used one drop PTFE oil per bearing in the beginning and the bushings are still wet. For me, they perform much better, than the IGUS Japan bushings.
How to support me? Do you like my things and do you want to support me? You can use these links if you want to buy something. This helps me doing more things. Thanks! Banggood: https://nozz.li/bg AliExpress: https://nozz.li/ali
Descripción original del autor, publicada en Thingiverse.
