Customizable elbow for joining PVC pipe
por Aaron Kerr en Thingiverse
This is a general-purpose elbow for creating frames or covers with PVC pipe or conduit. I was working with "15-mm" pipe that had an outside diameter of 21.5-mm (~27/32 of an inch) but you can easily change pipe_ext_diameter variable/parameter for different pipe dimensions. You can also specif how...
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Aaron Kerr.
Archivos (3)
- Categoría
- Jardín
- Formatos
- STL, SCAD
- Descargas
- 9,346
- Publicado
Sobre este modelo

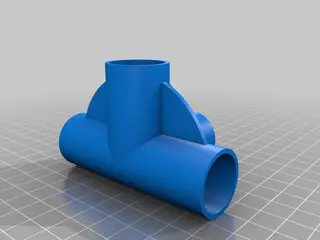

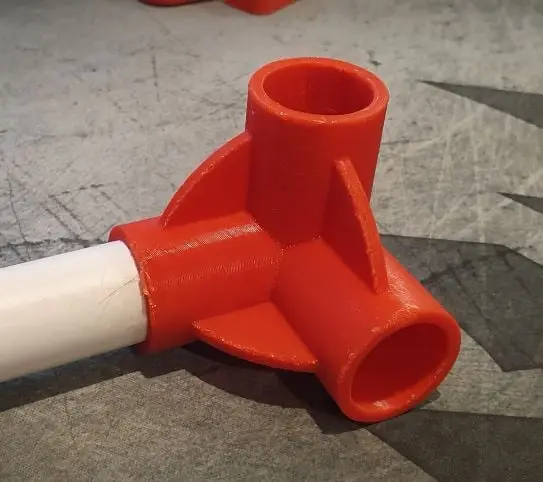

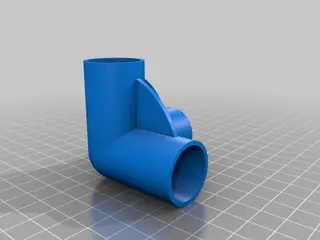

This is a general-purpose elbow for creating frames or covers with PVC pipe or conduit. I was working with "15-mm" pipe that had an outside diameter of 21.5-mm (~27/32 of an inch) but you can easily change pipe_ext_diameter variable/parameter for different pipe dimensions. You can also specif how many arms/way the elbow join needs by changing the pipe_arms variable. It works to make elbows to join 1 (why would ya?!?) to 5 pipes but I have only test printed 3-way and 4-way. The internal diameter tapers very slightly so the pipe will stay in there without glue. Let me know if you need changes made.
Descripción original del autor, publicada en Thingiverse.
