Cross X-Cut Cutter

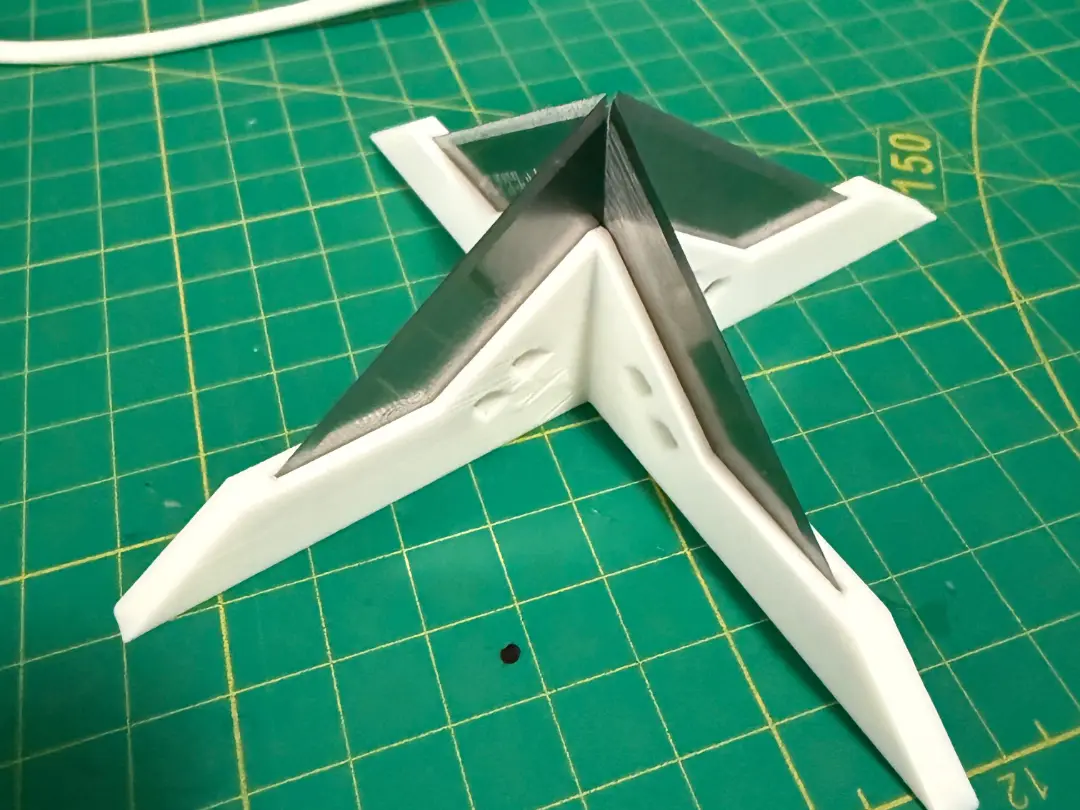

✂️ Cross X-Cut Cutter A simple tool designed to create fast, repeatable and consistent X-shaped cuts in cardboard.

The cutter uses 4 standard utility knife blades positioned at engineered angles so their cutting ends meet precisely at the centre.

Instead of cutting each X manually with scissors or a knife, simply position the tool over the cardboard and press down to create a clean, repeatable X cut.

📝 BOM

- Link to amazon: link

🔧 Blade Installation This cutter requires 4 utility knife blades.

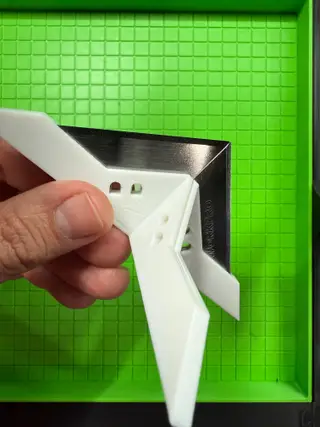

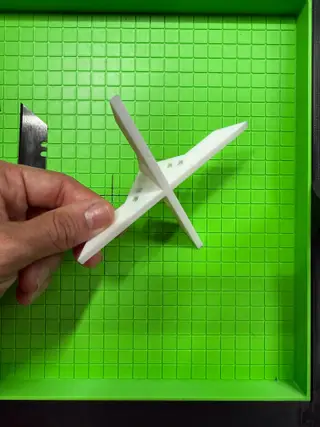

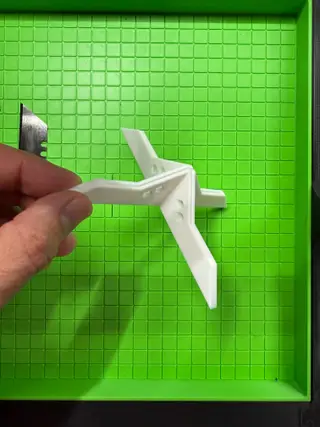

- First insert the blades into the slots marked LH and RH.

- Push each blade fully into its dedicated recess until it reaches the end of the receptacle and the tips align correctly at the centre.

- Insert the second pair into the slots marked LV and RV.

- Again, make sure each blade is pushed completely into position.

- Check that all 4 blades meet evenly at the centre before use.

- Optional: User M3 bolts to secure the blades in place.

The internal angles are designed to guide the blades into the correct X configuration.

⚠️ Use pliers to hold, position and push the blades into place. Avoid manipulating exposed blades directly with your fingers. ✨ Why Use It?

- Creates consistent X cuts

- Much faster than repeatedly using scissors or a knife

- Repeatable positioning and geometry

- Useful for cardboard packaging, craft projects, templates and repetitive cutting tasks

- Replaceable standard utility knife blades

⚠️ Safety & Use at Your Own Risk This model uses real utility knife blades and is therefore a sharp cutting tool.

- Handle and assemble it carefully

- Use pliers when installing or removing blades

- Keep fingers and hands away from the cutting area

- Always cut against a suitable sacrificial surface

- Keep away from children and pets

- Inspect the printed part and blades before every use

- Do not use the cutter if the printed body is cracked, damaged or allowing any blade to move

- Store it safely so the blades cannot be accidentally touched

By printing, assembling or using this model, you accept responsibility for determining whether it is suitable and safe for your intended application. The designer cannot control your printer, material, assembly, blade condition or method of use and cannot accept responsibility for injury, property damage or other loss resulting from improper assembly, handling or use. This notice is provided as a safety reminder and is not a substitute for appropriate precautions or local safety requirements.
