Creality nebula camera mount for the ender 3 v3 ke
I wanted my camera to be mounted on the left, because i had problems with lighting, but I couldn't find one that fit my needs, so I designed this one! I mounted this to the left side of the x-axis so it can move up with the print. Because there isn't a place to securely mount it on the x-axis itself
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Arthur B.
Archivos (2)
- camera mount adapter.stp STP · 34 KB
- camera mount.stp STP · 73 KB
- Categoría
- Para tu impresora
- Formatos
- STP
- Descargas
- 75
- Publicado
Sobre este modelo

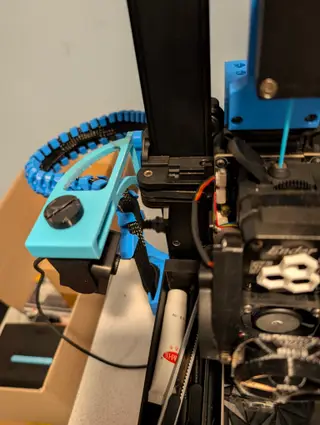

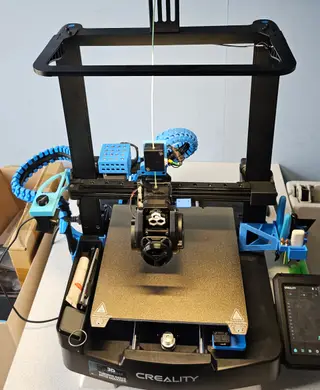

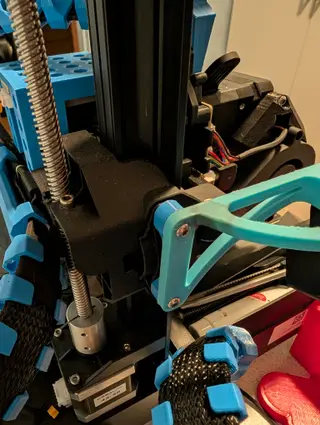

I wanted my camera to be mounted on the left, because i had problems with lighting, but I couldn't find one that fit my needs, so I designed this one! I mounted this to the left side of the x-axis so it can move up with the print. Because there isn't a place to securely mount it on the x-axis itself you do have to take out the screws for the bearing on the left side and replace them with some longer M3x25 bolts (M3x20 might work as well, haven't tried that).

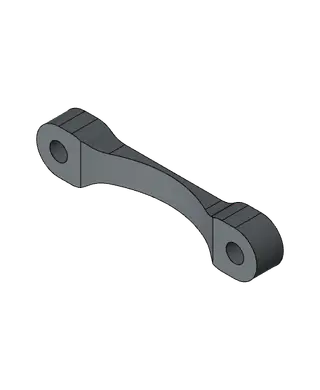

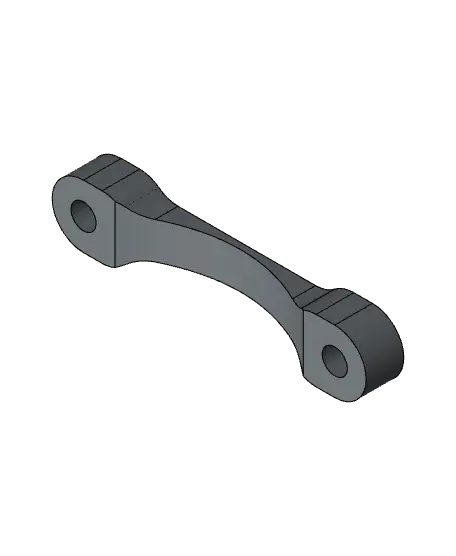

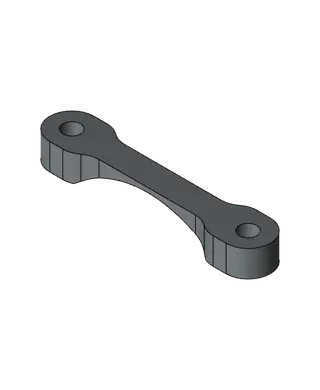

It consists of 2 parts: the adapter and the mount itself, the adapter was needed because it is mounted on the piece for the bearing in that part is rounded. It is split in 2 parts to reduce support, for the mount itself you do still need support.
I printed it in ABS so it is really rigid and the camera doesn't wobble around when it's printing at high speeds, but I guess PLA and PETG both would work too.
The cable for the nebula camera is just long enough to go to the top of the printer if you guide it under the printer to the display.
The screw to hold the camera can be found here: https://www.thingiverse.com/thing:6428774
