Creality K1 Max Cable Chain simple fix
por SmokingHandbag en Printables

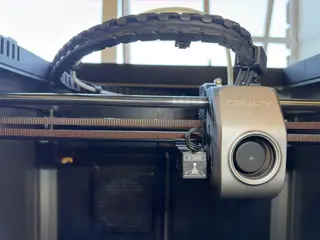

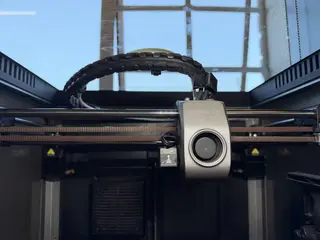

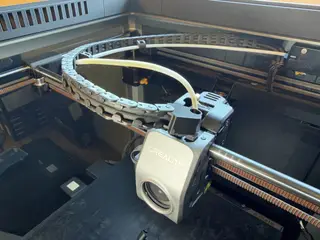

I created this to simply solve the issue of the cable chain drooping, I specifically wanted a simple OEM-like solve.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a SmokingHandbag.
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo

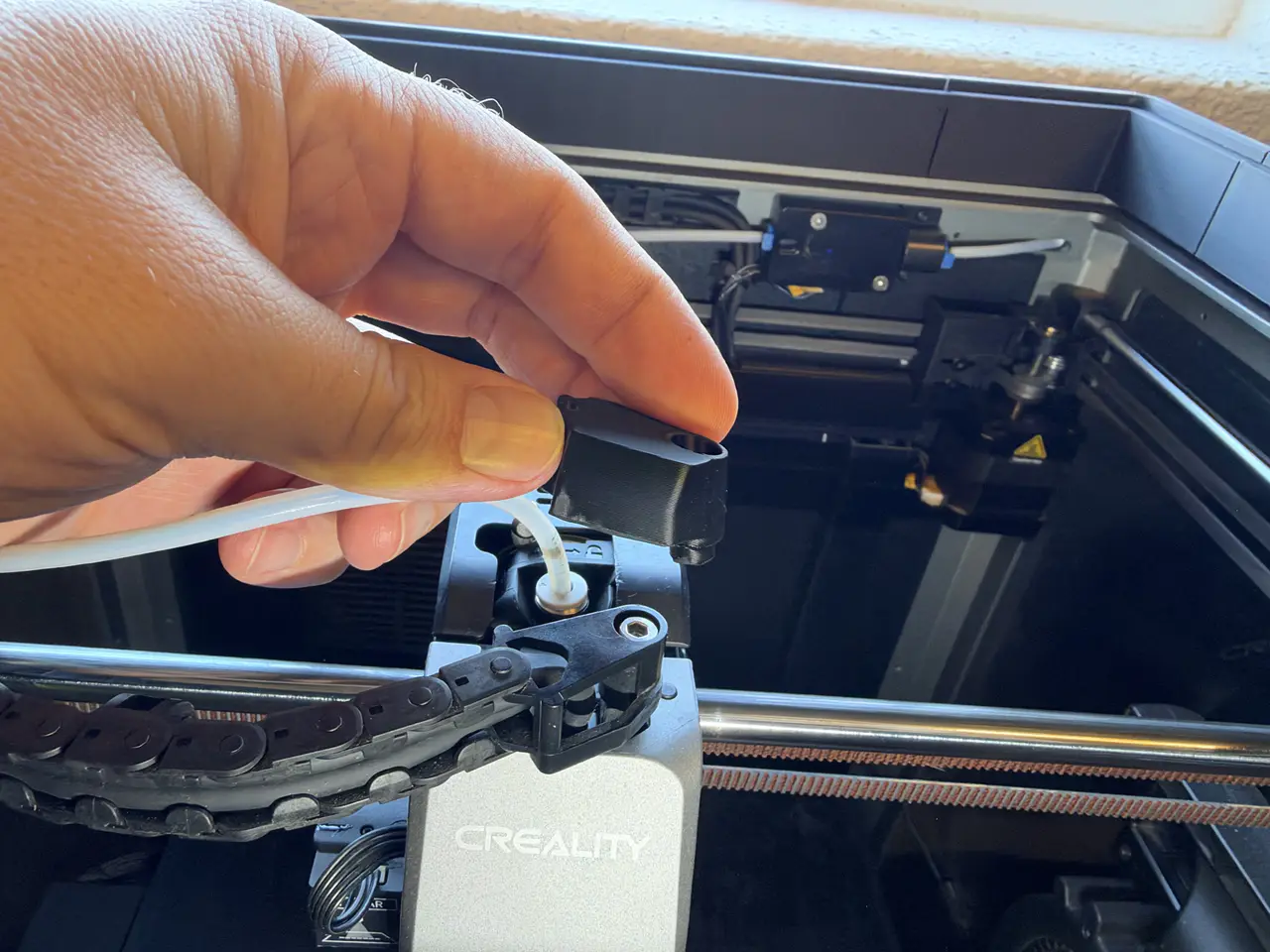

K1 Max Cable Chain Link (15° Angled Tunnel) This is a modified cable chain link for the Creality K1 Max. The pivot tunnel is tilted 15° inward around its mid-height, which changes how the chain sits and routes. Would advise to use this with a lid riser for clearance. Features - 15° angled pivot tunnel with a Ø7.5 mm socket and spigot and a Ø4.25 mm through hole
- Ø3.2 mm link pins top and bottom, with a 23.8 mm pitch
- Built-in stop notch to limit articulation
- Flat base so it prints with minimal supports
- Size: 32.0 x 19.9 x 21.3 mm
