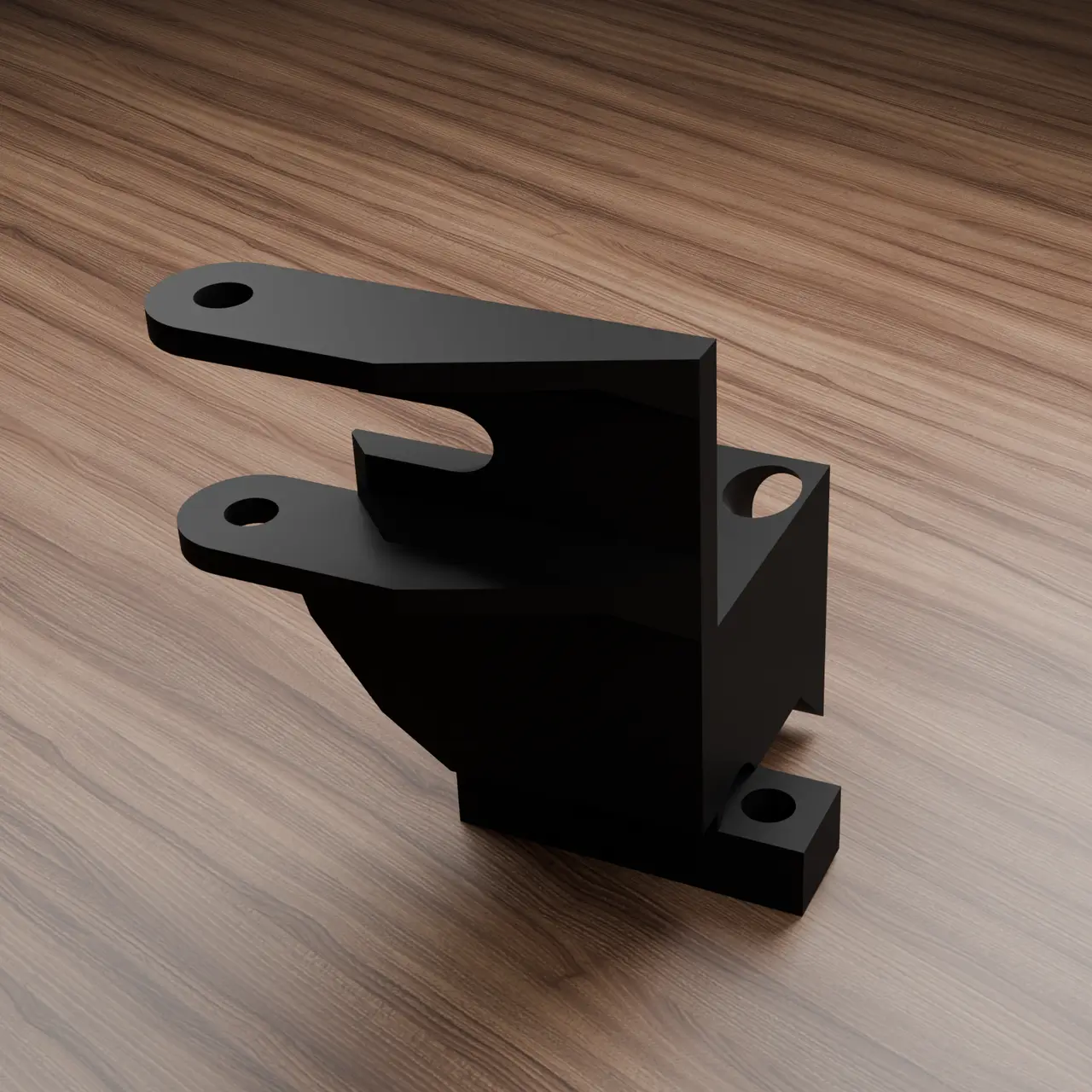

Creality K1/K1 SE Enclosure Drag Chain Riser - Single Body & Corrected Cable Clearance
por BabaConner en Printables
Single-body Creality K1/K1 SE drag-chain riser with corrected mounting screw and power-cable spacing for improved fit.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a BabaConner.
Archivos (2)
- Categoría
- Para tu impresora
- Formatos
- STL, STP
- Descargas
- 3
- Publicado
Sobre este modelo

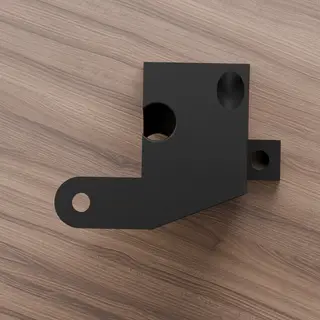

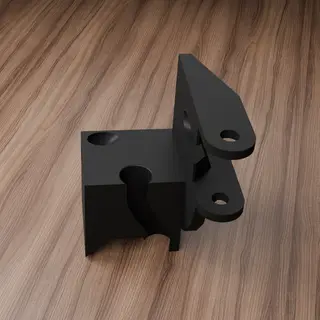

Creality K1/K1 SE Enclosure-Compatible Drag Chain Riser This is a functional remix of the enclosure-compatible drag chain riser and Bowden guide. I made two primary changes to improve the part's fit and simplify printing and installation: - Converted the model into one single body. The geometry has been combined into a unified solid rather than separate/intersecting bodies.
- Corrected the spacing between the mounting screw and power cable. The distance in this area was adjusted to better match the actual printer geometry and provide the proper clearance for the power cable.
The goal was to retain the functionality and enclosure compatibility of the original design while correcting the mounting/cable relationship and making the model a cleaner single-body part. Compatibility Designed around the Creality K1 platform and enclosure-compatible drag-chain setup. Credit This model is a remix of the Creality K1 enclosure-compatible drag chain riser & Bowden guide by Gear & Solder. Thanks to the original designer for providing the design this remix is based on.
Descripción original del autor, publicada en Printables.
