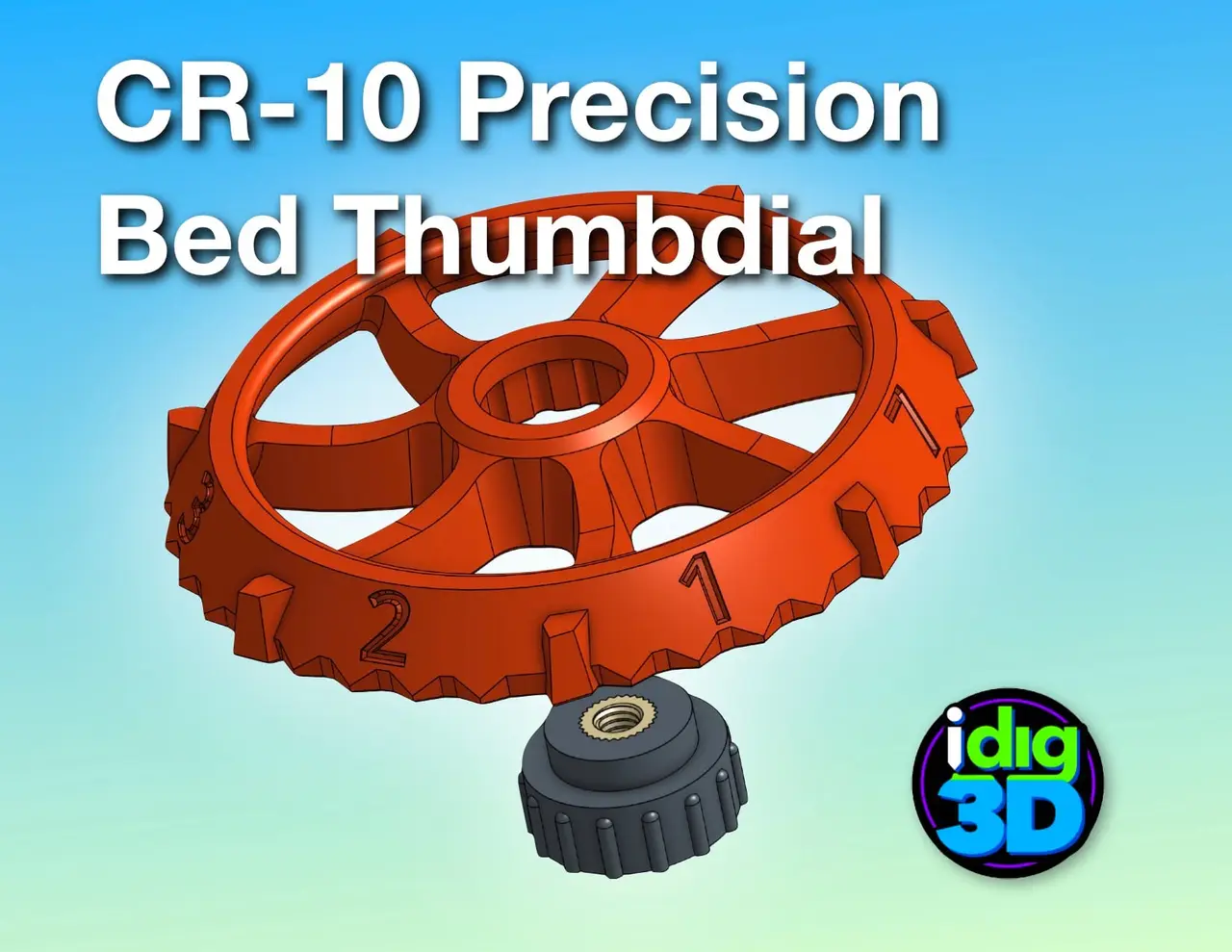

CR-10 Precision Thumbdial
por Russ Taber en Thingiverse
A more precise way to dial in your CR-10's bed. Fits over existing bed knobs. M4 threads have a 0.7mm pitch, so turning the knobs 1/7 of a turn will change the distance 0.1mm. I beveled the face and added numbers so you could read numerical adjustment. Each big point is 0.1mm. Small points are...
Licencia
Solo uso personalCC BY-NC-ND 4.0 — Atribución, no comercial, sin derivadas
Solo para uso personal, sin modificarlo y dando crédito. No se permite vender ni redistribuir cambios.
Al descargar aceptas respetar la licencia y dar crédito a Russ Taber.
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 33,768
- Publicado
Sobre este modelo

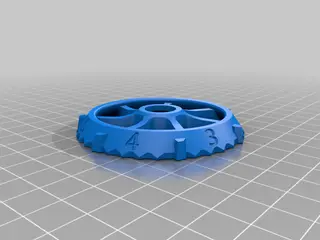

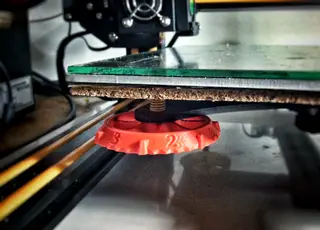

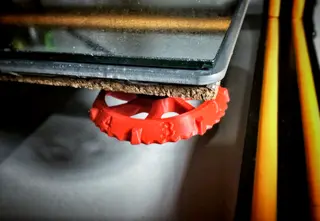

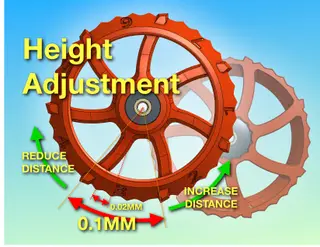

A more precise way to dial in your CR-10's bed. Fits over existing bed knobs. M4 threads have a 0.7mm pitch, so turning the knobs 1/7 of a turn will change the distance 0.1mm. I beveled the face and added numbers so you could read numerical adjustment. Each big point is 0.1mm. Small points are 0.02mm. Bigger numbers mean a bigger gap. The file named "cr10_thumbdial_ws_idig3d.stl" is with support. The support is a solid ring you can snap out when the print is completed. A screwdriver may help. Contribute to my coffee fund if you find this useful and want to encourage my insanity. Thanks!
Descripción original del autor, publicada en Thingiverse.
