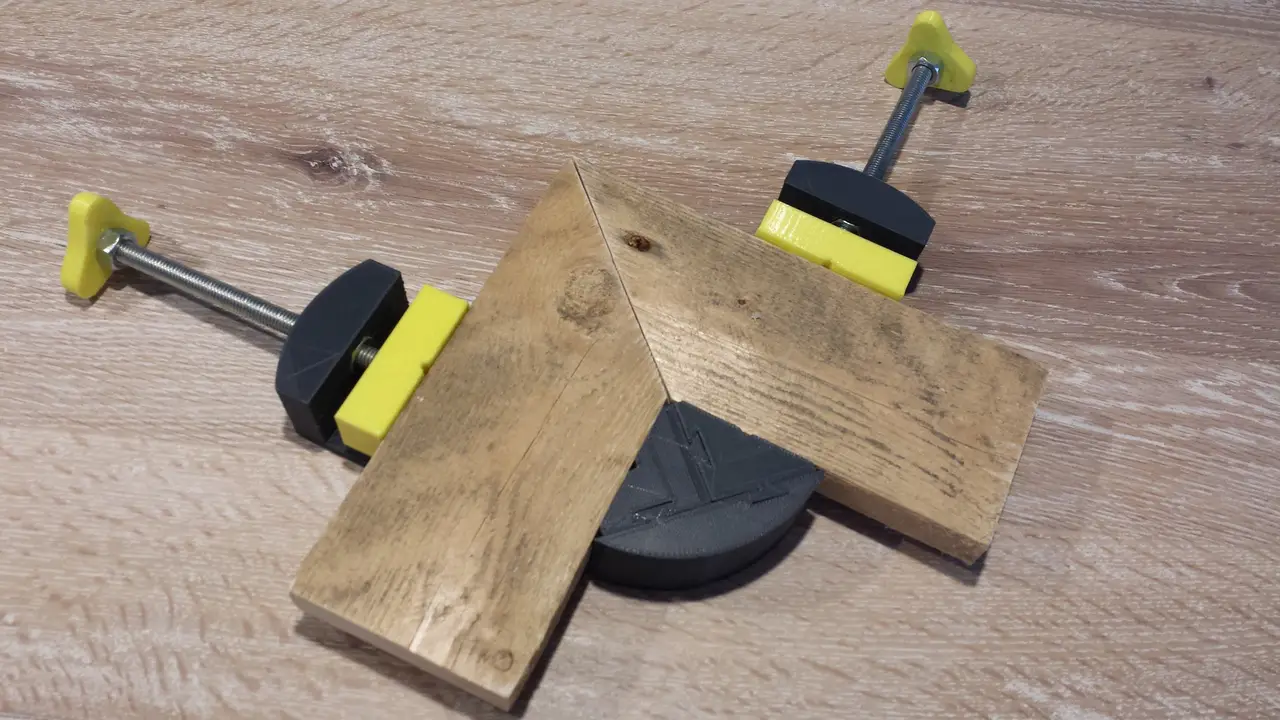

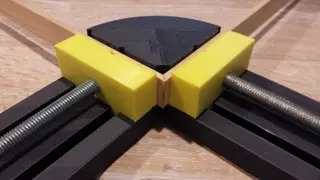

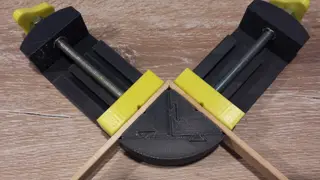

Corner clamp
por Bastien Bruy en Thingiverse
A while back I was making a list for one of my paintings. I found it was not easy to make 45º wood conections so I decided to make a 3d printed tool for this. I used one of my former designs of a small vise as a guide. The main reason for making puzzle connections is that this design can be printed.
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Bastien Bruy.
Archivos (16)
- Endcap_V4.STL STL · 6 KB
- base_V4.STL STL · 17 KB
- Endcap_V4.STEP STEP · 28 KB
- Single_Endcap_V4.STEP STEP · 37 KB
- Endcap_V4.SLDPRT SLDPRT · 117 KB
- Knob_V4.STEP STEP · 118 KB
- base_V4.STEP STEP · 106 KB
- Single_Endcap_V4.STL STL · 6 KB
- Slider_V4.STEP STEP · 45 KB
- Slider_V4.STL STL · 10 KB
- Single_Endcap_V4.SLDPRT SLDPRT · 157 KB
- Knob_V4.STL STL · 207 KB
- Knob_V4.SLDPRT SLDPRT · 341 KB
- base_V4.SLDPRT SLDPRT · 394 KB
- Slider_V4.SLDPRT SLDPRT · 255 KB
- Base_longer_109mm.STL STL · 45 KB
- Categoría
- Herramientas
- Formatos
- STL, STEP, SLDPRT
- Descargas
- 17,500
- Publicado
Sobre este modelo

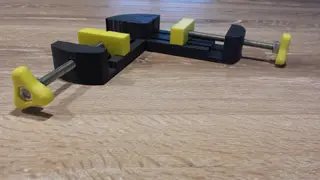

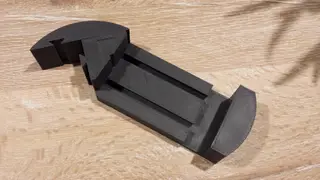

A while back I was making a list for one of my paintings. I found it was not easy to make 45º wood conections so I decided to make a 3d printed tool for this. I used one of my former designs of a small vise as a guide. The main reason for making puzzle connections is that this design can be printed nearly twice as big as your printbed. Parts needed: M8 bolt rod about 120 mm long (5/16 inch, 4,5 inch long) 2x M8 hex nut's (5/16 inch) 6x Printed parts: Base_V4 2x Slider_V4 2x Knob_V4 2x Endcap_V4 1x Single Endcap_V4 does NOT need to printed. It's optional for people who print only one base. Insert the m8 nuts in place, use a solder iron to heat the nuts so that they melt in place and stay locked if the fits are a little tight.
Descripción original del autor, publicada en Thingiverse.
