Corner Bracket v2 (optimized for 3D printing)
por 3D_Workspace en Printables
no support, no bridging, strong design
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a 3D_Workspace.
Archivos (13)
- Bracket_32x16.stl STL · 498 KB
- Bracket_32x32.stl STL · 992 KB
- Bracket_32_3-sides.stl STL · 752 KB
- Bracket_32x16_flat.stl STL · 569 KB
- Bracket_32x32_flat.stl STL · 1,1 MB
- Bracket_32_3-sides_flat.stl STL · 859 KB
- Bracket_24x12.stl STL · 498 KB
- Bracket_24x24.stl STL · 990 KB
- Bracket_24_3-sides.stl STL · 750 KB
- Bracket_24x12_flat.stl STL · 568 KB
- Bracket_24x24_flat.stl STL · 1,1 MB
- Bracket_24_3-sides_flat.stl STL · 856 KB
- Corner_Bracket_v2_drill_distances.pdf PDF · 92 KB
- Categoría
- Repuestos
- Formatos
- STL, PDF
- Descargas
- 13,614
- Publicado
Sobre este modelo

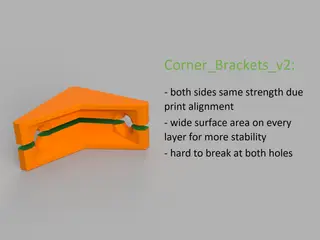

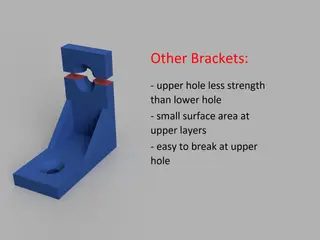

Normal 3d-printed brackets can easily break if you overtighten the screws. These brackets are specially designed for FDM-3D-printing. Because of their wide surface areas on every layer they can withstand multiple times more force than other 3d-printed brackets.

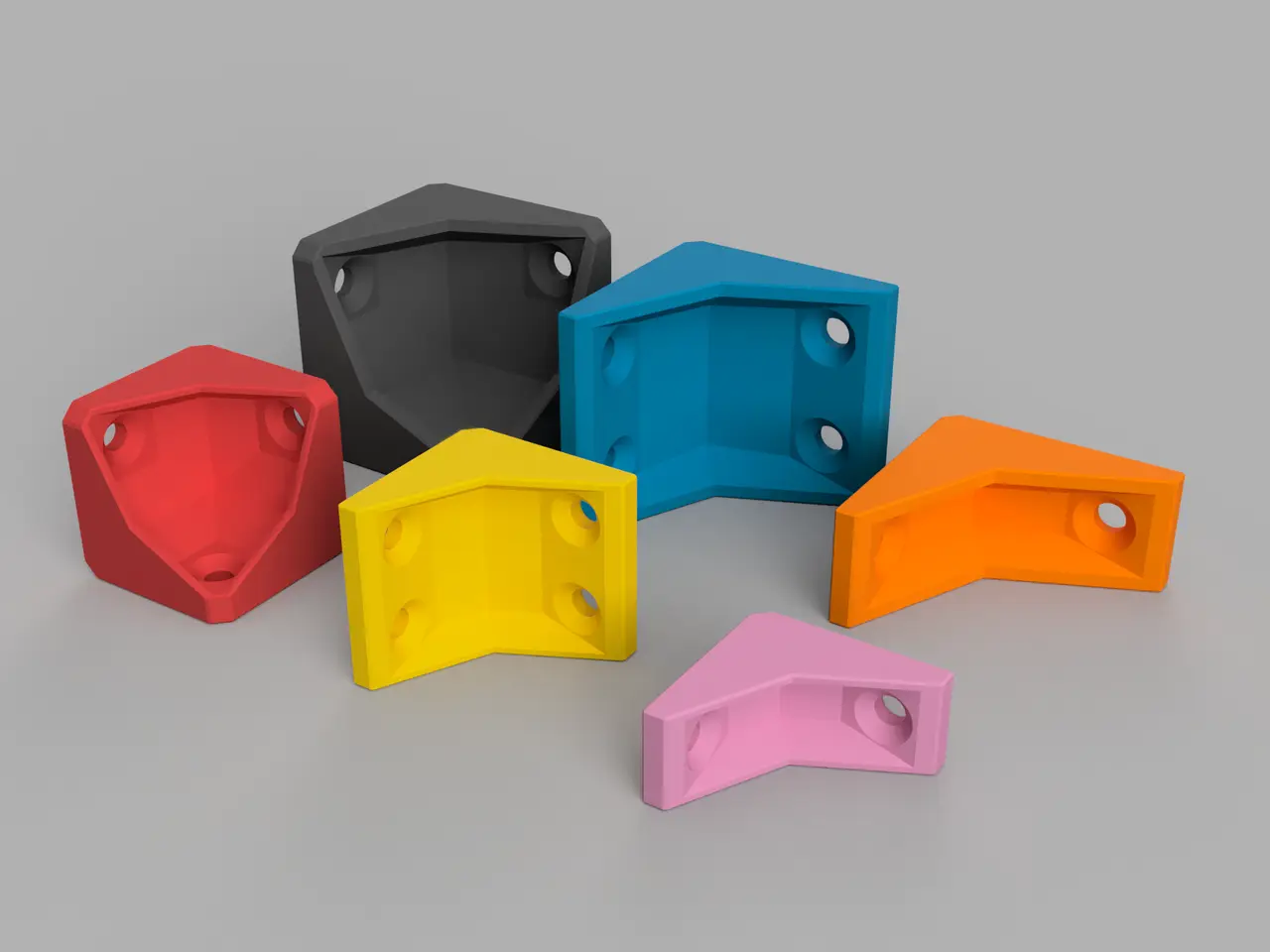

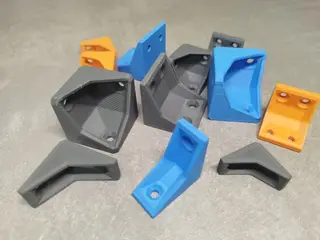

There are 3 brackets in 2 sizes: - 32x16 - 32x32 - 32_3-sides - - 24x12 - 24x24 - 24_3-sides

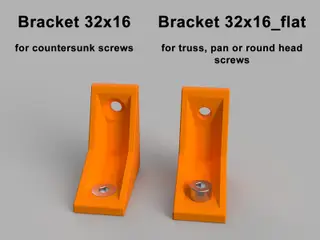

You can download 2 versions of every bracket. The normal versions are made for countersunk screws and the “_flat” versions are for truss, pan or round head screws.
You can find the drilling distances of every version in the pictures or as PDF download in scale 1:1.
