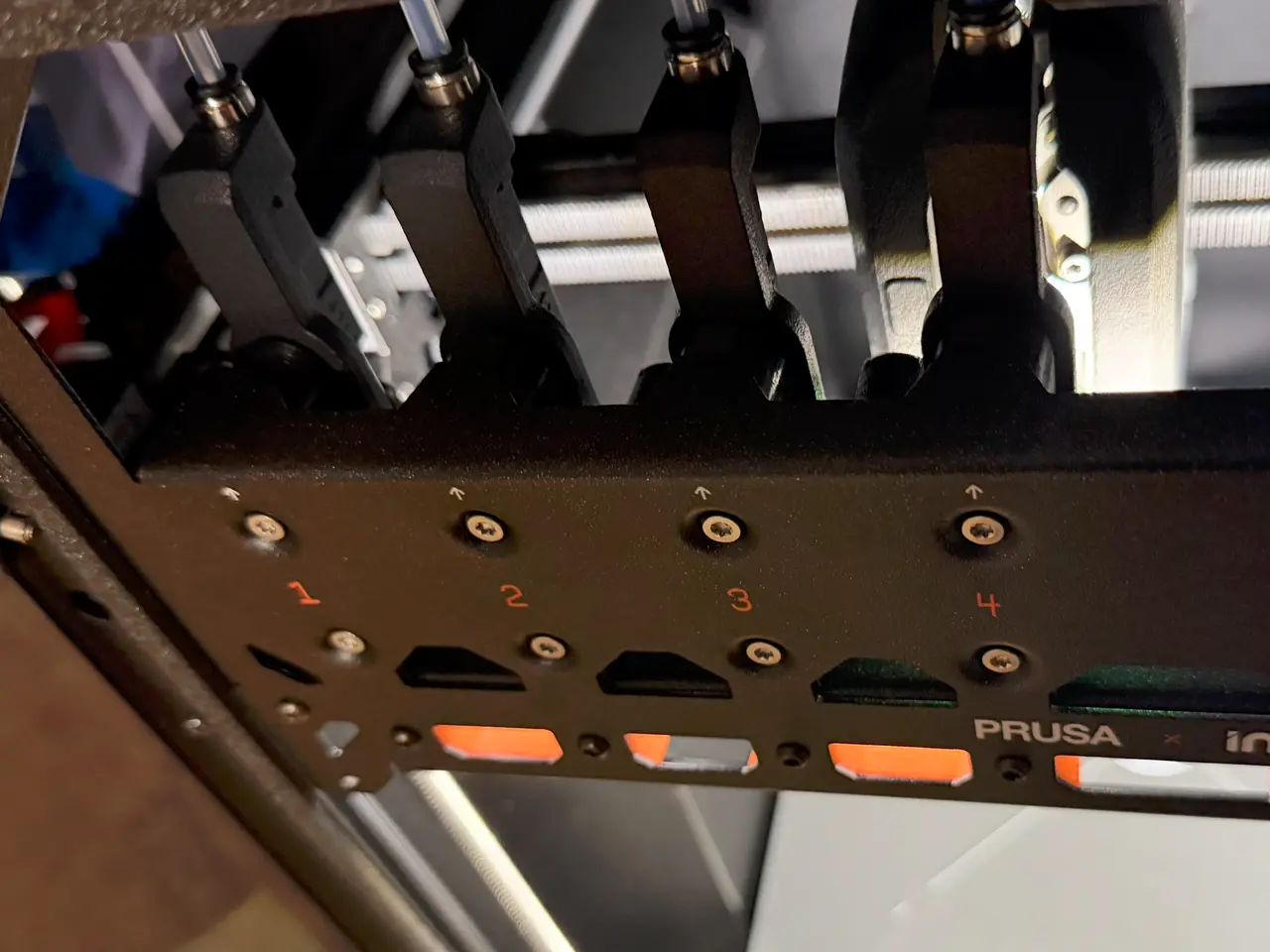

CoreOne+(Gen2) INDX Tool Holder upgrade with magnet tool
por SLAYEROFALL3050 en Printables
A modified tool holder for 3 x 10 mm magnets, a magnet removal hole, and m3 lock nuts.
Licencia
Revisa las condicionesEl autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a SLAYEROFALL3050.
Archivos (5)
- Categoría
- Para tu impresora
- Formatos
- STL, STEP, F3D
- Descargas
- 14
- Publicado
Sobre este modelo
The tool holders I got had some pretty weak magnets causing loads of docking issues. I got better magnets that were 3 x 10 mm cylinder magnets. I expanded the holes in the original holder to fit the new ones and made a removal hole in the bottom to make removing them easier and not destructive. I also added two holes to fit m3 lock nuts, as constantly screwing and unscrewing into plastic did not and does not fill me with the most confidence. The part was printed in PETG with standard printing options. The only difference was that I changed the infill to 20% and used gyroid. Additionally, depending on the orientation, you should not need any supports.
Descripción original del autor, publicada en Printables.
