Coralboard SL Dev Dock for IKEA SKÅDIS
por DELLOO2008 en Printables
A SKÅDIS shelf for the Synaptics Coralboard SL with swappable modules: a half-size breadboard holder, a parts bin and a
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a DELLOO2008.
Archivos (4)
- Categoría
- Tecnología
- Formatos
- STEP, 3MF
- Descargas
- 7
- Publicado
Sobre este modelo

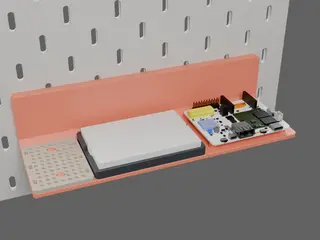

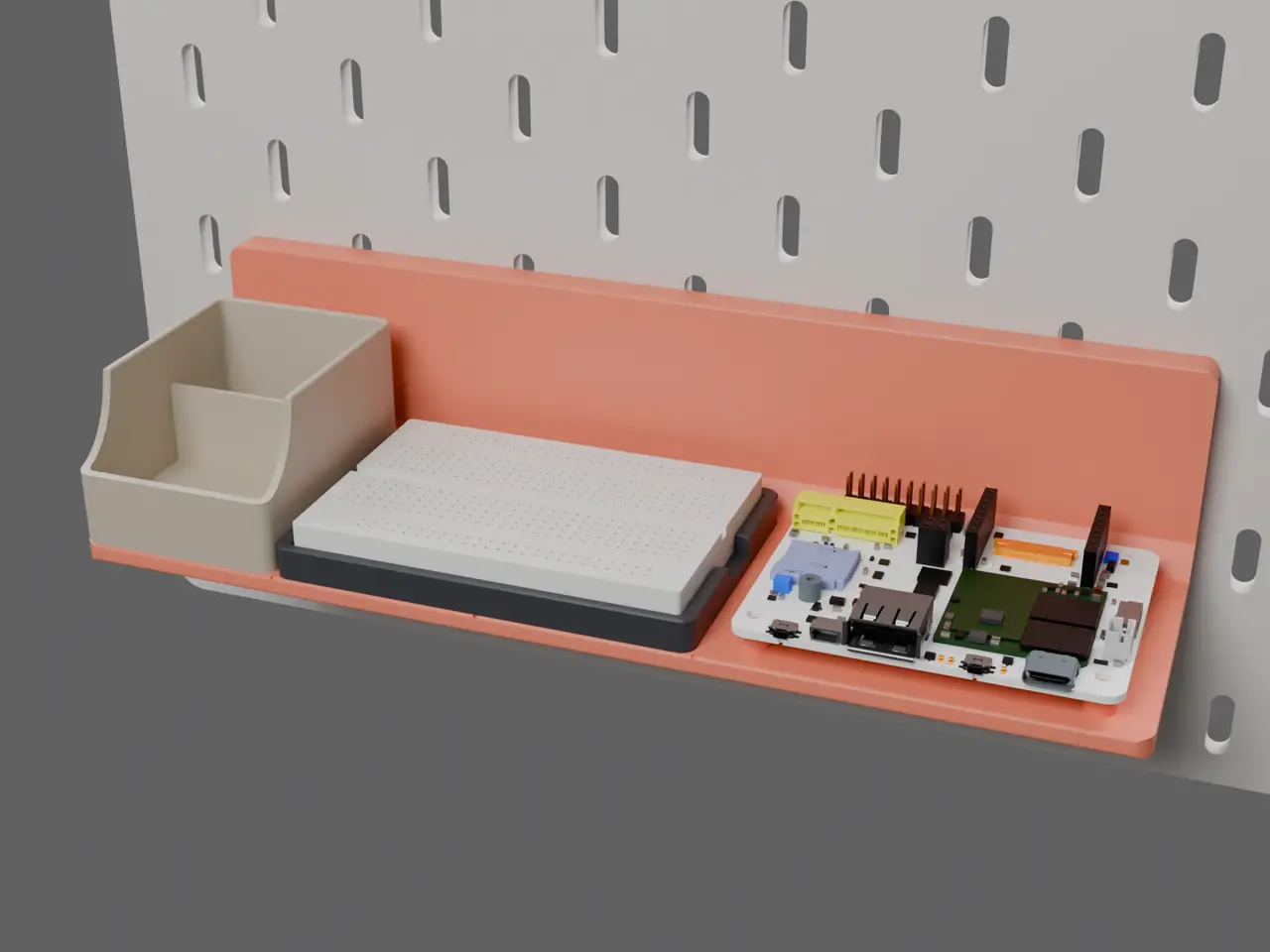

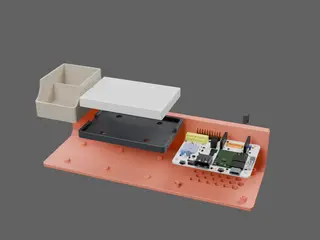

A small edge-AI workstation for your pegboard. The Coralboard SL sits on the shelf with all ports facing you. Next to it are three slots for modules that drop onto pegs and swap in seconds: a holder for a half-size breadboard, a parts bin, and a hole-grid plate for add-on boards. Hardware: 4x M3 x 8 mm screws. Print 2 clips and slide them into the channel on the back, hooks pointing down. The dock hangs on two slots 160 mm apart. Made for the Coralboard SL and checked against Coral’s official model, but not test printed yet.
Descripción original del autor, publicada en Printables.
