Coralboard NoTools Case
por Zurrie en Printables
A Coralboard enclosure with build-in buttons, made to print quick and strong with ZERO screws/tools, and no supports
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Zurrie.
Archivos (25)
- Front V2.1 HARD.stl STL · 1,5 MB
- Front V2.1 SOFT.stl STL · 1,7 MB
- RightClip V2.1.stl STL · 372 KB
- LeftClip V2.1.stl STL · 375 KB
- Top V2.1 Clip Icon Text.stl STL · 2,3 MB
- Top V2.1 Clip Icon.stl STL · 5,6 MB
- Top V2.1 Clip Vents.stl STL · 2,5 MB
- Top V2.1 Clip blank.stl STL · 2,3 MB
- Bottom V2.1 Clip.stl STL · 1,8 MB
- Top V2.1 M2.5 Icon Text.stl STL · 1,8 MB
- Top V2.1 M2.5 bolt Icon.stl STL · 20,9 MB
- Top V2.1 M2.5 bolt vent.stl STL · 9,9 MB
- Top V2.1 M2.5 bolt blank.stl STL · 9,6 MB
- Bottom V2.1 M2.5 bolt.stl STL · 2,1 MB
- Top V2.1 M3 Icon Text.stl STL · 1,8 MB
- Top V2.1 M3 bolt Icon.stl STL · 20,9 MB
- Top V2.1 M3 bolt vent.stl STL · 9,9 MB
- Top V2.1 M3 bolt blank.stl STL · 9,6 MB
- Bottom V2.1 M3 bolt.stl STL · 2,0 MB
- ClipsAndFront V1.stl STL · 317 KB
- TopFixed V1.stl STL · 424 KB
- Bottom V1.stl STL · 1,8 MB
- LeftClip V1.stl STL · 366 KB
- RightClip V1.stl STL · 363 KB
- Front V1.stl STL · 957 KB
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 8
- Publicado
Sobre este modelo

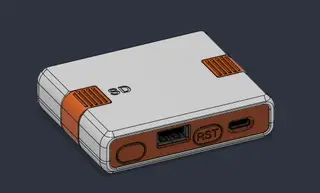

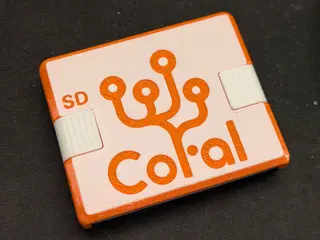

A compact case designed around the Coralboard reference model.
Easy access to the SD Card in the "Clip" design. Designed for 0.2mm layerheight printing, no supports needed. No componets other than the 3D prints are needed in the "Clip" design. The front buttons has the highest load of stress over time, so its easily replaceable, instead of printing a whole new casing. I designed two different versions depending on preference.

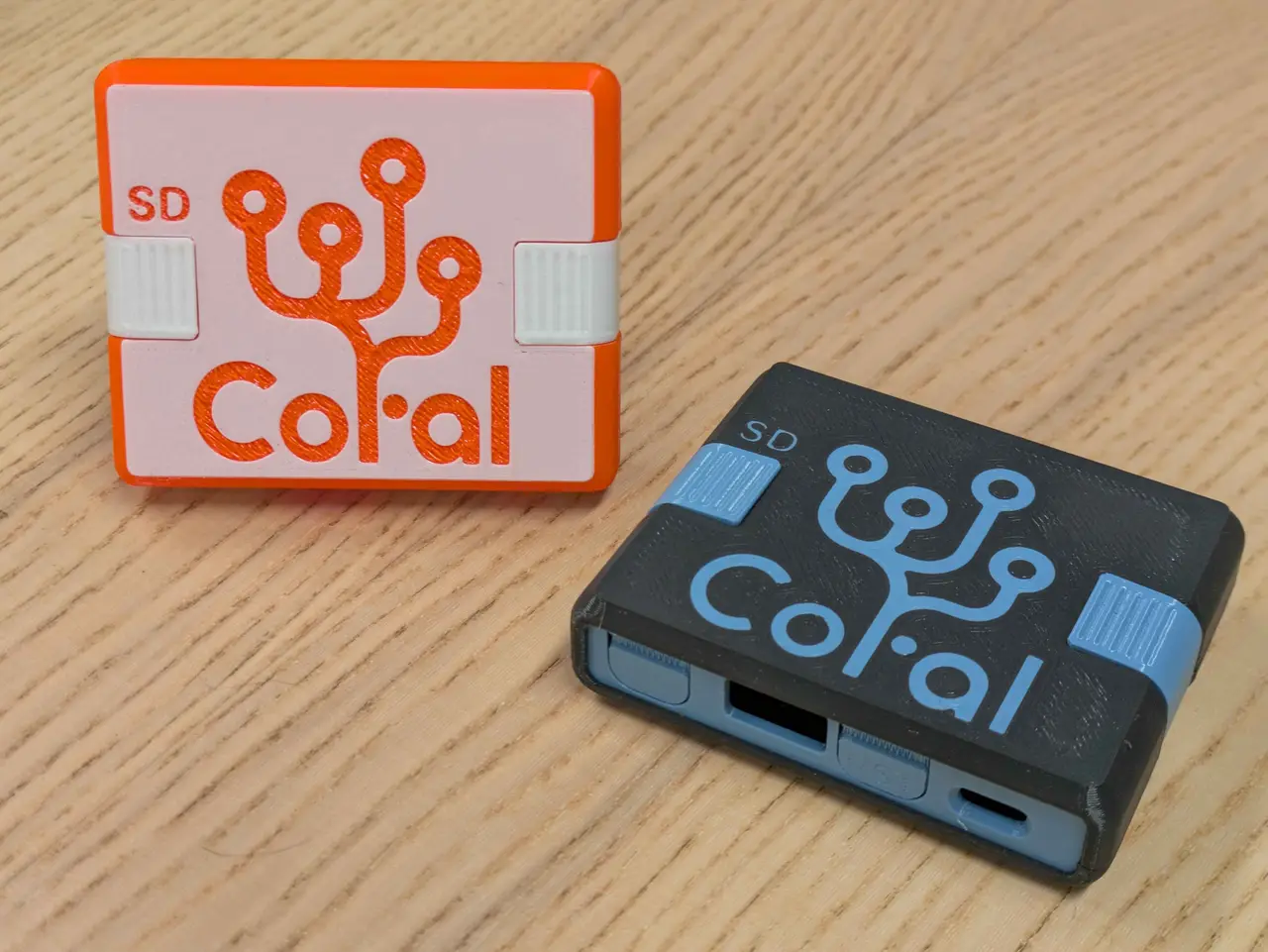

The case clips together easily, one clip is placed over the SDcard slot for access without taking the case fully apart. I added a M3 and M2.5 version if you want to secure it differently. (7 to 16mm lenght) I printed a PETG version and it seems perfect so far.
Descripción original del autor, publicada en Printables.
