CORAL CASE-01

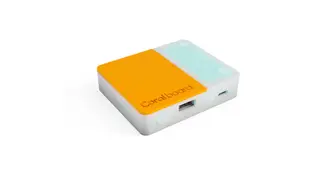

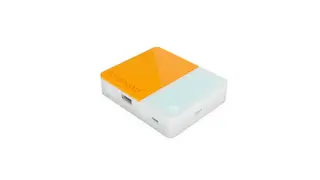

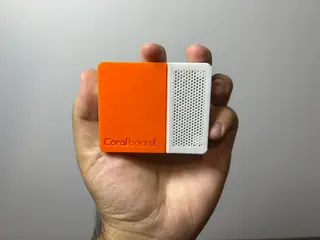

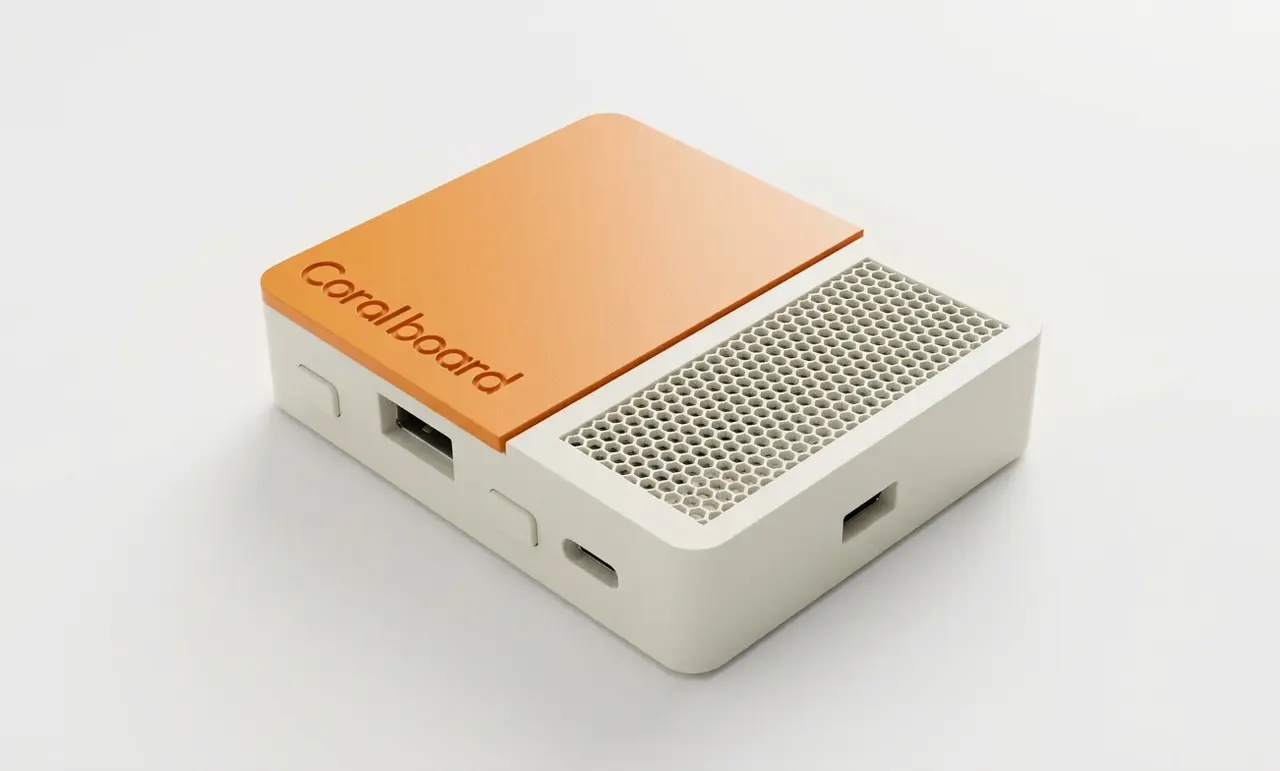

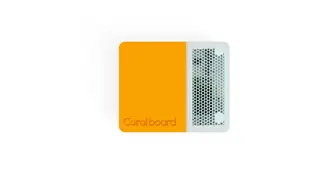

CORAL CASE-01 is a Teenage Engineering-inspired enclosure for the Coral Board, designed with a focus on minimalist industrial design and 3D-printing practicality.
3D Printing
• All parts are designed to print without supports. • The geometry is optimized specifically for FDM 3D printing.
Hardware Required
• 4 × M3 × 10 mm screws
Assembly Instructions
1. Install the Button Caps Snap the two button cap halves together, trapping the housing between them.
2. Check the Button Assembly The images show the assembled button from both the outside and inside of the enclosure.
3. Repeat for the Second Button Repeat the same process for the second button.
4. Install the Board and Secure the Cover Place the Coral Board inside the enclosure and secure the cover using the M3 × 10 mm screws.
