Collapsing Swords and Lightsabers Test Print
por 3D Printing World en Printables

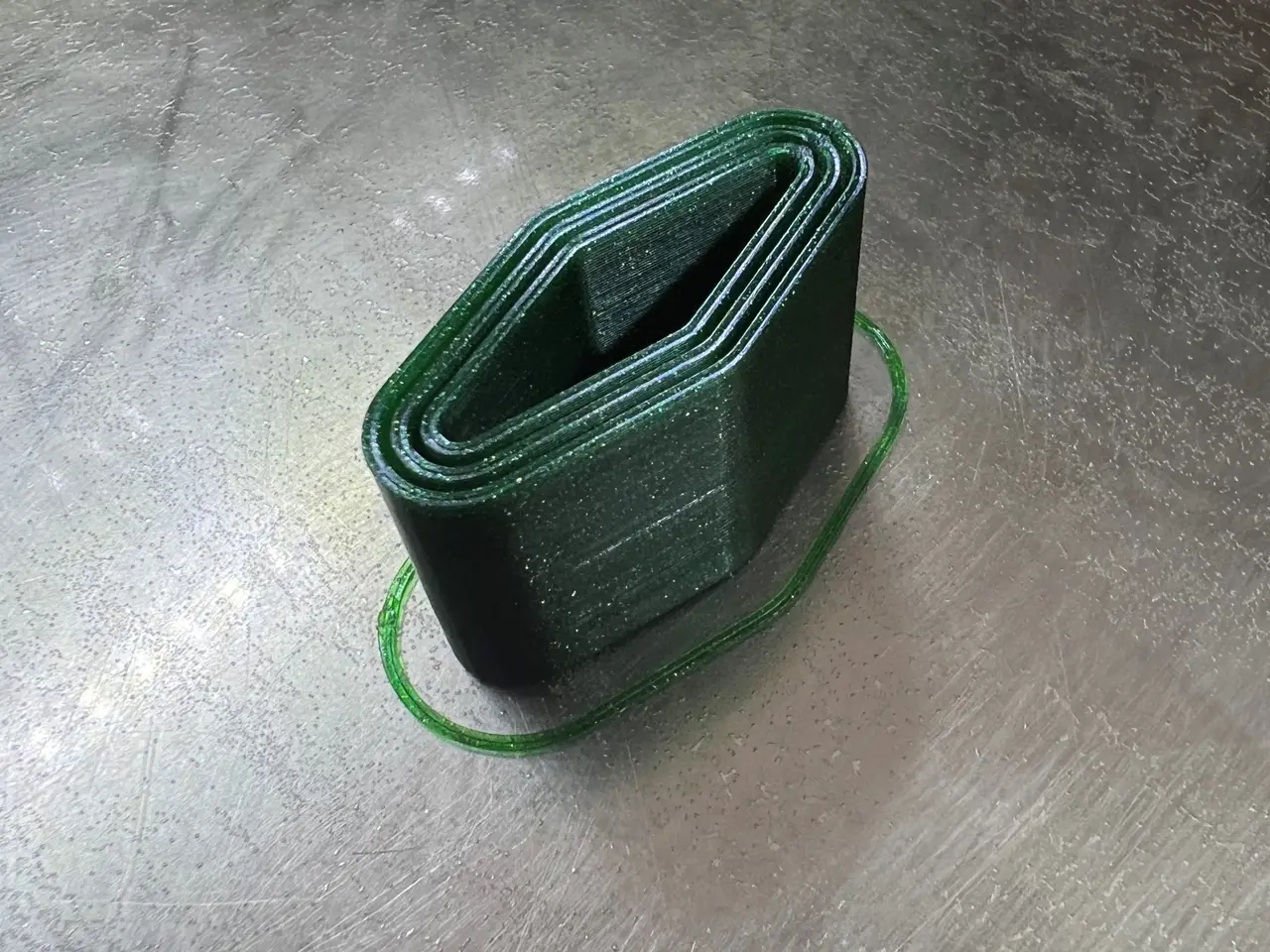

This is a test print for printing collapsing swords and lightsabers
Licencia
Solo uso personalStandard Digital File License
Licencia estándar de archivos digitales: solo uso personal. No se permite compartir, revender ni subir el archivo a otros sitios, ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a 3D Printing World.
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 34,117
- Publicado
Sobre este modelo
If you can successfully print this with NOTHING attaching the rings together, then you should be able to successfully print the print-in-place version or the blades concentrically.
There is a new “clearance” test print, you can find here. I would use that print to test your printers ability to print a clearance, and this print to better tune the seam.
Be sure to to look closely, even if nothing is attached try tuning for the smallest seam.
The test print is a total of 24mm high so I change settings every 8mm(3x) then compare the changes until I achieve the best result. The settings that will have the most impact are; flowrate, retraction distance/speed, coast, wipe, and extra restart distance. You may also try; seam location, speed, temperature, and z-hop.
Find detailed instructions on how to print collapsing swords on my website.
Do not repost, distribute, sell or trade the files or physical models of this object.
Descripción original del autor, publicada en Printables.
