Collapsing Gift Box

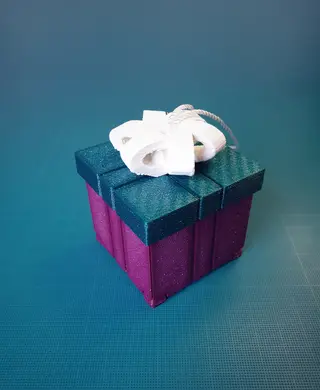

This gift box has a twist lock that when opened, allows the box to collapse when the lid is lifted, revealing the gift inside.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Jouni A.
Archivos (4)
- Gift Box V1.0 - Bow.stl STL · 872 KB
- Gift Box V1.0 - Box.stl STL · 2,2 MB
- Gift Box V1.0 - Lid.stl STL · 38 KB
- Gift Box V1.0 - Lock.stl STL · 157 KB
- Categoría
- Jardín
- Formatos
- STL
- Descargas
- 382
- Publicado
Sobre este modelo
This gift box has a twist lock that when opened, allows the box to collapse when the lid is lifted, revealing the gift inside.
See it in action here: https://youtube.com/shorts/W2r6U9RT4QQ

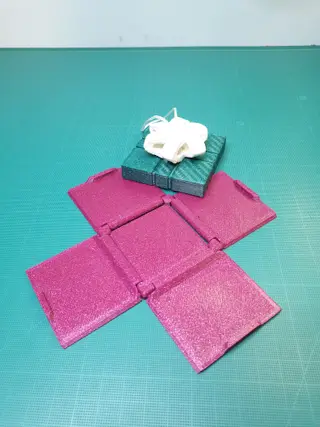

After printing the box, carefully pry the hinges loose of any fused spots. You may need to wiggle the box walls for a while to loosen them enough for them to tip and fall easily on their own, especially if you're using a glitter filament. You can also try applying some silicone lubricant to the hinges to help things along.

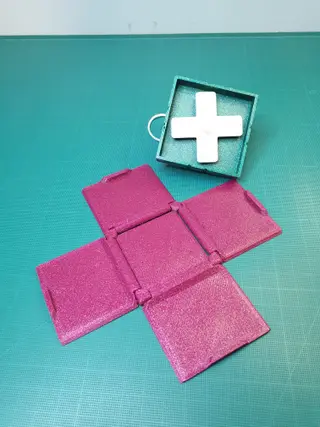

Assembly is simple; push the lock cylinder through the lid from underneath and glue the bow into it on the top side. Careful not to spill the glue and glue everything to the lid! Rotate the lock so the blades point the corners, lift up the box walls and push in the lid. Then rotate the lock 45 degrees to lock the present.
The bow and lock has a hole for a string or ribbon if you want to hang it.
---
Don't forget to check out my Instagram and YouTube channel for more interesting projects! https://www.instagram.com/jaatinen3d https://www.youtube.com/@Jaatinen3D
