Close coupled toilet cistern feed pipe hand spanner
por Tenchy UK en Thingiverse

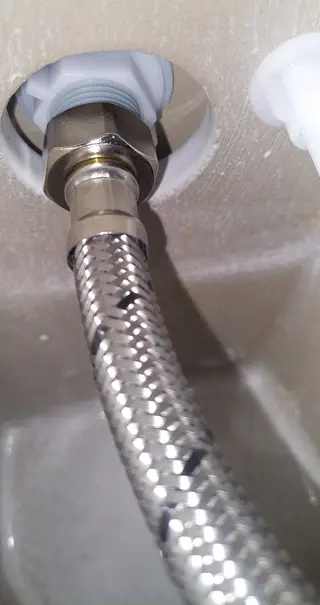

I recently fitted a new close coupled toilet in my bathroom and was sure that I tightened up the flexible feed pipe to the inlet valve but found it leaking when plumbed in. As the nut was recessed into the ceramic I couldn't get in there to tighten it fully. So designed this. Two halves are...
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Tenchy UK.
Archivos (1)
- Categoría
- Hogar
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo

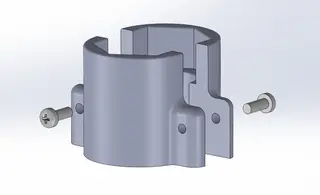

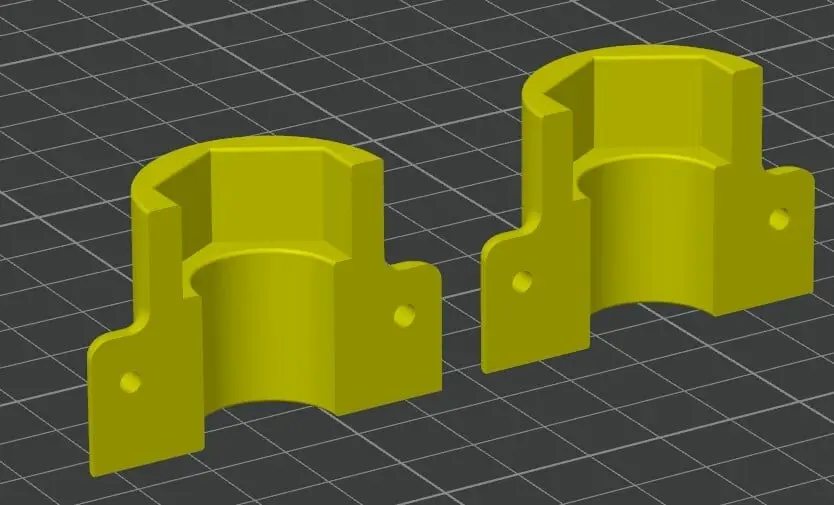

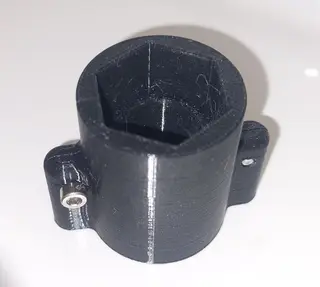

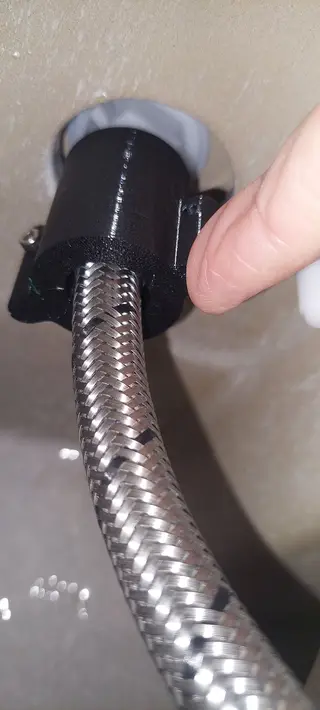

I recently fitted a new close coupled toilet in my bathroom and was sure that I tightened up the flexible feed pipe to the inlet valve but found it leaking when plumbed in. As the nut was recessed into the ceramic I couldn't get in there to tighten it fully. So designed this. Two halves are identical, each half has a 2.8mm hole the other a 3.2mm for an M3 screw. Screw together by hand as shown in exploded view over the pipe, slide up, tighten, leak gone. Job done.
Descripción original del autor, publicada en Thingiverse.
