Sobre este modelo

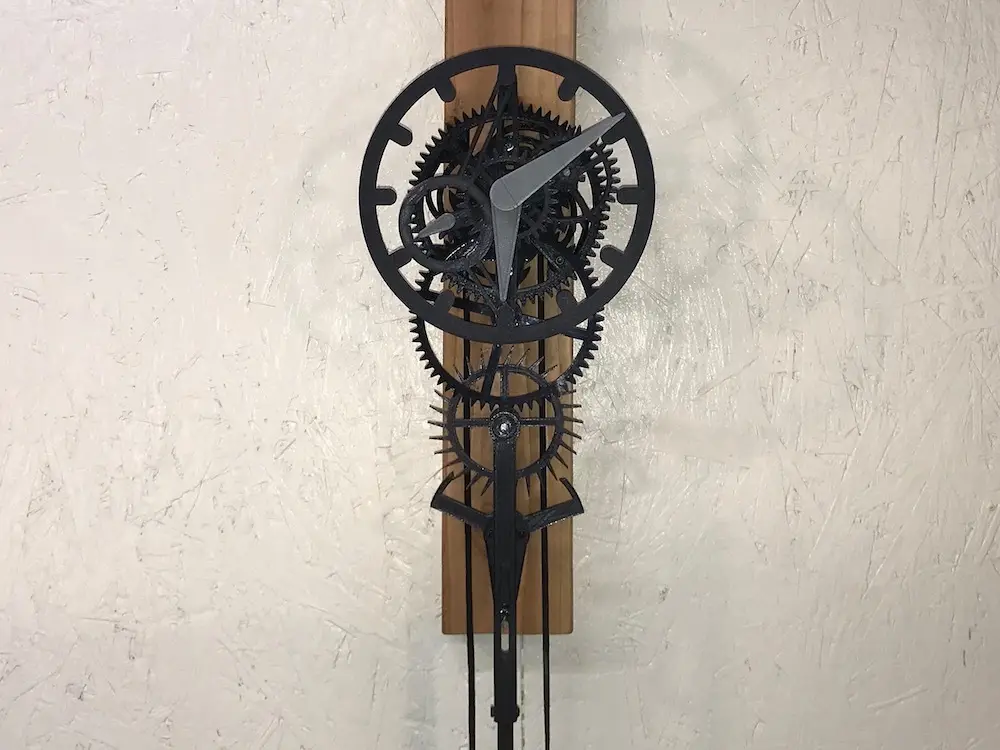

Clock One

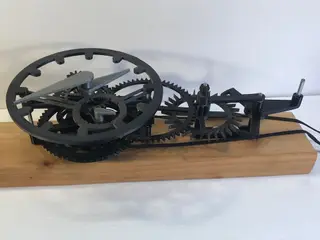

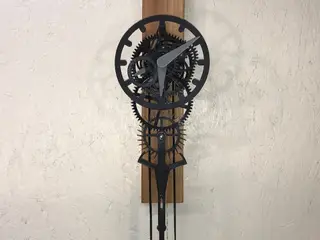

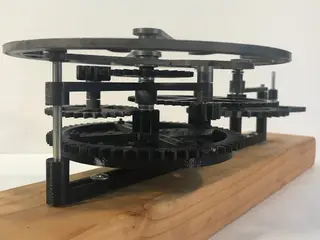

This a mechanical clock that I have designed and built using 3D printed parts
Find more detailed instructions on the pdf in Files:
Clock One build instructions.pdf

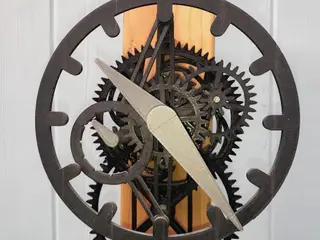

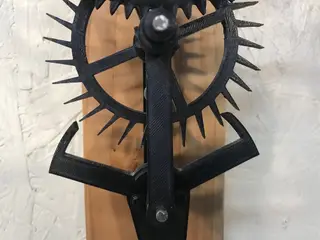

It has hours, minutes and seconds, a Graham, or dead beat escapement, it is powered by weights, it has ratchets on the pulley to facilitate rewinding.
It will run for about 5 hours, there is a nut to fine tune the speed on the pendulum
See it here:
https://youtu.be/wh0CArhOsug
https://youtu.be/j6-ea6O72f4
https://youtu.be/KoyZZXEglnw
Designed with Fusion 360
Sliced with Cura
Printed in PLA on Anet A8 with Solutech 3D
Tags:
3D printed, Graham, Escapement, Deadbeat, mechanical clock
