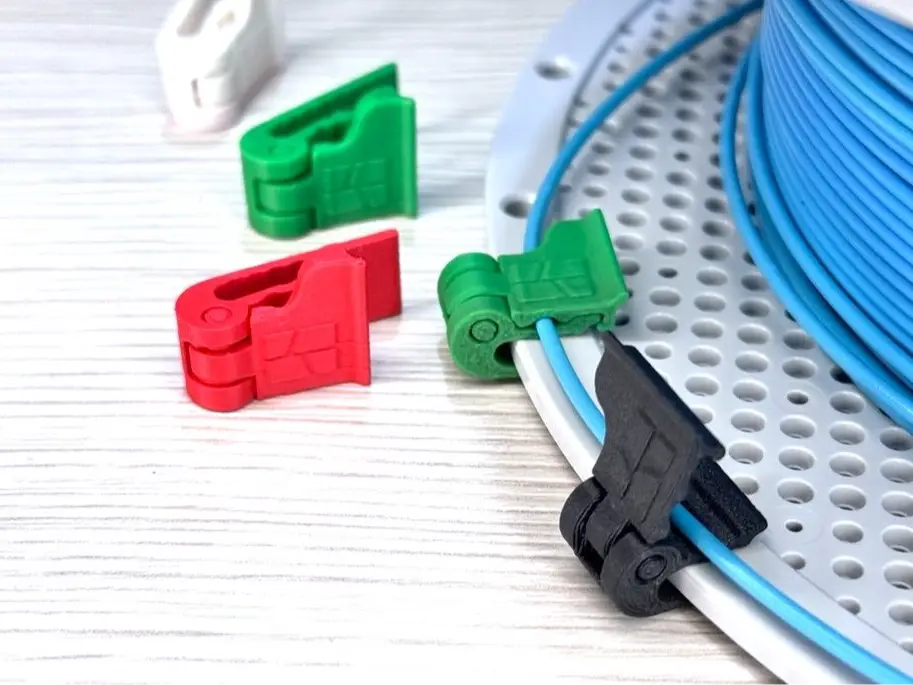

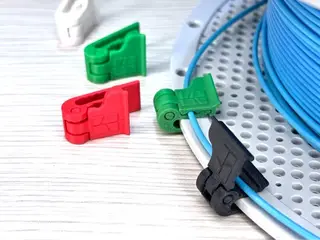

Clip Filament Click (Print in Place)

Boost MeYour Boosts are giving me energy, keep it up please I've seen quite a few filament clips, but I wanted to give the MC2 a touch of customization. I hope you like it, it drives me crazy personally.

It wasn't easy to design such a small and functional piece, but I have had experience with mini zippers.

Designed to make its application simple on all coils, the piece is universal.

Revision V2: date gg/mm/aaaa 19/11/2024 The image below explains the changes, I inserted some shims to block the wire, it tended to slip

Revision V3: date gg/mm/aaaa 24/11/2024

I have placed the off-set between the 2 bodies as you suggested so you won't have the feeling of breaking, so the piece is ready for use. I also fixed the stitching on the new .3mf, now they don't come close together.

Thanks for your support, I read every comment.

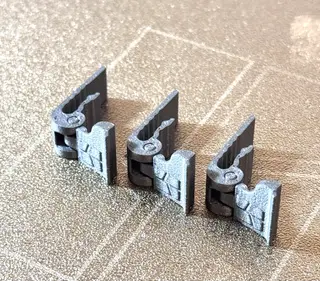

Drastic changes V3

Seams V3

PROJECT: Fusion 360

Opening: For the opening I created a functional block

Closure: For the closure I designed a very resistant mini gate, with the right offset.

Movement: Thanks to its integrated mini zipper with on-site printing, movement is simple without any jams.

PRINT SETTINGS: It can also be printed in PLA but PETG is recommended.

Print it with any material, I used Bambu material. -Ugello 0.4mm -Layer height 0.12mm -No Supports -Ironing -100% filling -4 Walls

Post production: -Wait for the piece to cool a little before removing it from the plate. -Now start moving the zipper, there should be no impediments.

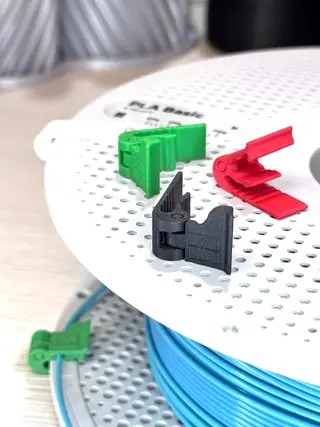

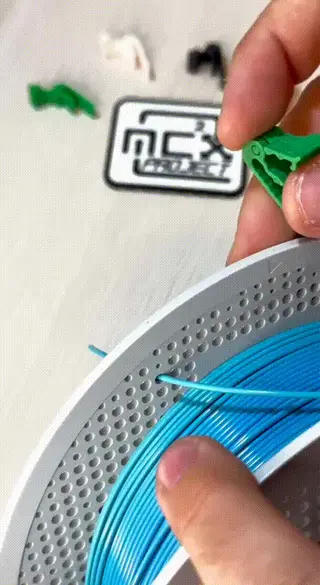

Usage: Fit the Filament Click Clip onto the spool, take the thread, position it and zip it closed

Note: Created for 1.75mm filament but if you like and need I can also do it for other sections

Happy printing, if you like follow me for other projects.

See you next time from MC2.project3D
