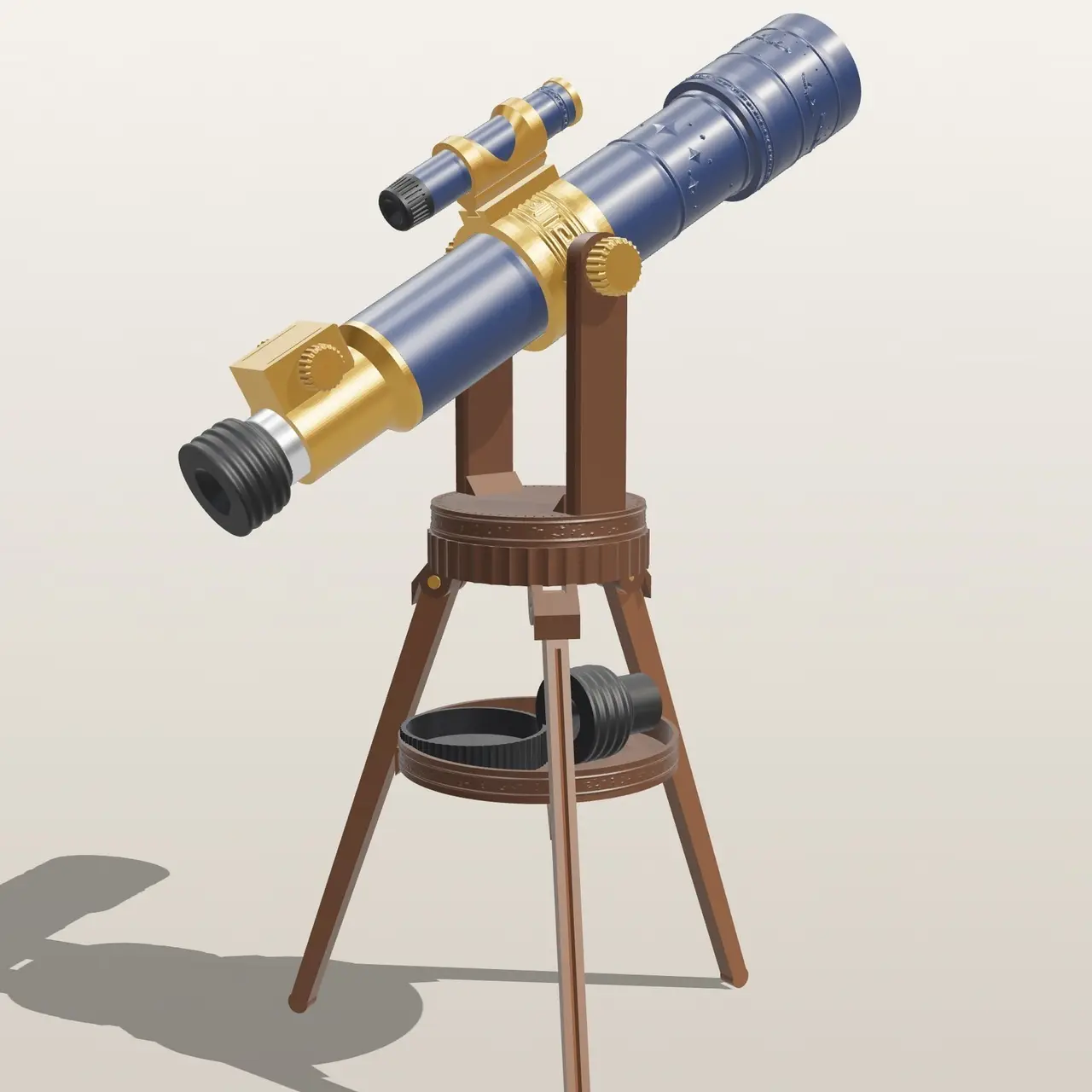

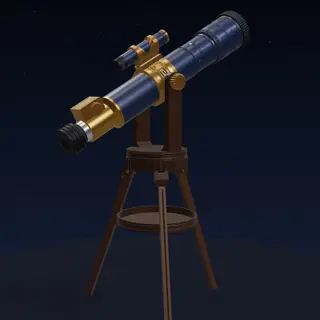

Classic Brass Refractor Telescope on Tripod - Desk Showpiece

A detailed, fully working-style refractor telescope on a folding wooden-look tripod - a showpiece for a desk, shelf, study or observatory corner. Navy lacquered tube with a raised starry-sky band, planets on the dew shield, a Greek-key brass cradle collar, knurled brass knobs and a walnut-style tripod with an accessory tray.

Generated with the DIATEH GEN parametric engine.

WHAT MOVES

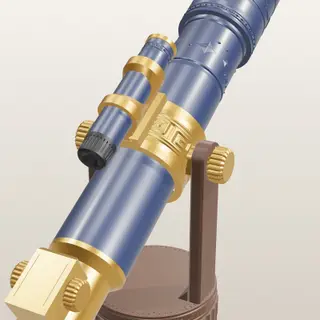

- Altitude: the cradle collar turns on two knurled trunnion knobs in the fork (free range -30 to +55 degrees). Press depth of the knobs sets the friction.

- Azimuth: the fork turns 360 degrees on a pivot pin in the tripod head, with a 5-degree scale engraved on the fork base.

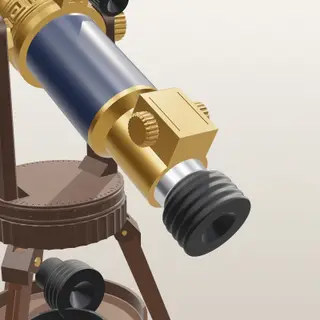

- Friction focuser: the focus knobs turn a roller that drives the drawtube in and out. The eyepiece slides into the drawtube.

- Finder scope slides into a dovetail on the cradle collar.

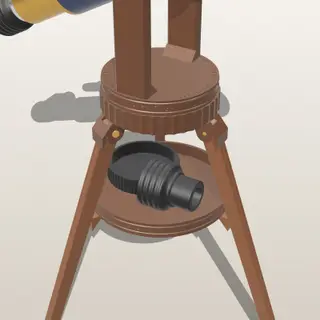

- Tripod legs fold on hinge pins and lock at 20 degrees against a stop. The accessory tray rests on leg cleats and keeps the legs spread.

- Removable dew shield (stops on the objective cell) and lens cap.

WHAT YOU GET

24 part files (30 parts printed incl. 2 eyepieces, 3 legs, 3 hinge pins, 2 altitude knobs), all already oriented for printing, plus a README with assembly steps and colour suggestions.

SIZE

Approx. 370 mm tall with the tube at 28 degrees, tripod footprint approx. 215 mm, main tube 44 mm diameter x 200 mm. Largest part 200 mm (main tube, printed upright); legs 196 mm long, printed flat.

PRINTING

No supports needed. PLA, 0.4 mm nozzle, 0.16-0.2 mm layers, 3 walls, 15 % infill. Sliding clearances are 0.25-0.6 mm; tube fits use small crush ribs. Objective and finder lenses look best in clear PETG/PLA. Suggested colours: navy, gold/brass, silver, black, walnut brown.
