ClampDock (modular clamp-on system)
This is the core of my ClampDock system of modular accessories, which can be attached to a table, desk or shelf edge. It is adjustable to varying thicknesses of materials and can host an array of accessories. The clamping mechanism allows you to quickly attach and remove the device and adapt it to v
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesLP NC License 20241029
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Paul B.
Archivos (6)

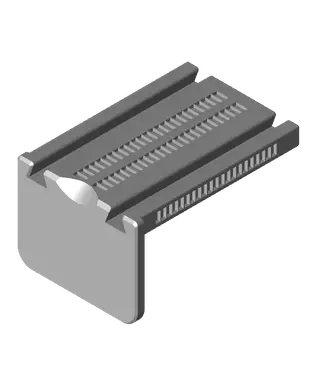

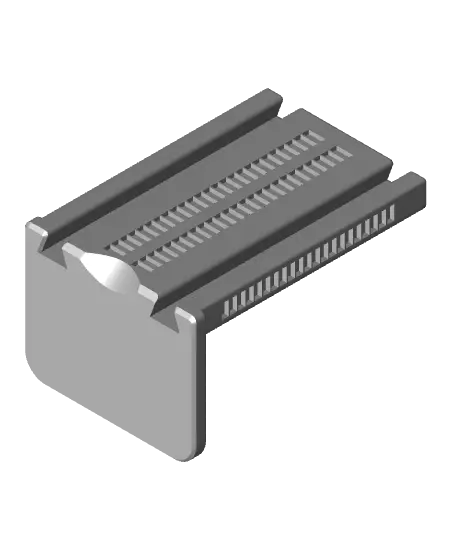

- ClampDock 1v00a_101 Main.stl STL · 2,5 MB
- ClampDock 1v00a_102 Slider.stl STL · 1,0 MB
- ClampDock 1v00a_103 Lever.stl STL · 317 KB
- ClampDock 1v00a_105 Slide Grip (print with TPU-95A).stl STL · 750 KB
- ClampDock 1v00a_106 Compression Grip (print with TPU-95A).stl STL · 438 KB
- ClampDock 1v00a_103b short lever.stl STL · 302 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 2,666
- Publicado
Sobre este modelo

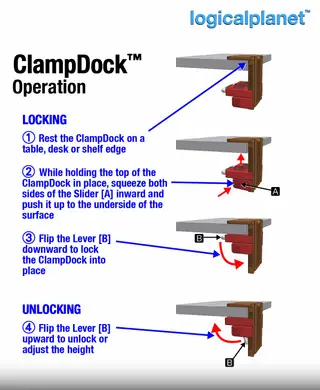

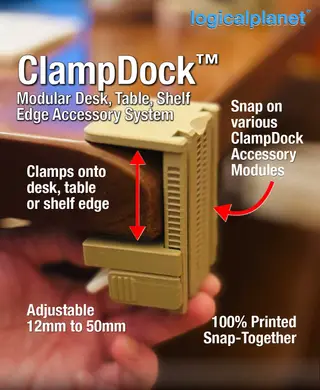

This is the core of my ClampDock system of modular accessories, which can be attached to a table, desk or shelf edge. It is adjustable to varying thicknesses of materials and can host an array of accessories. The clamping mechanism allows you to quickly attach and remove the device and adapt it to various installations.

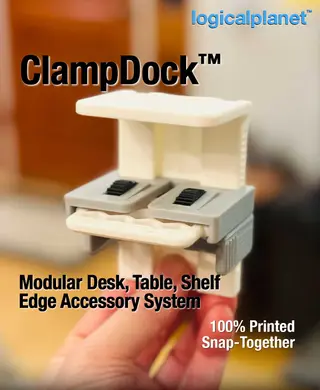

The ClampDock is 100% printed and snaps together; no hardware, fasteners or adhesives are required.
This download contains the ClampDock host files only. You must download the snap-on ClampDock Accessories separately.
Print Settings
For the best results, I suggest the following: Material = PLA / PETG, use TPU95A for the grips. Nozzle = 0.4mm Layer Height = 0.2mm Line Width = 0.4mm Wall Count = 4 (1.6mm) Top and Bottom Layer Count = 5 Detect Thin Walls = ON Wall Generator = Arachne Infill = 40% (Cubic) Brim = Should not be needed Support = No Print orientation = As per the STL/3MF files.

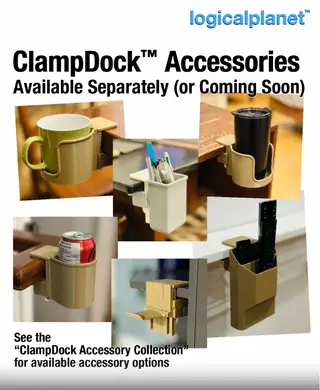

Related Links
The collection of ClampDock compatible accessories is available here… https://thangs.com/mythangs/collections/132194
The ClampDock Vertical mount is available here... https://than.gs/m/1267912
The ClampDock Over Under mount is available here... https://than.gs/m/1267972
Visit my blog for more details and other designs: https://www.logicalplanet.com/
Revisions and Updates I occasionally update and revise my designs. When I do, I’ll document the changes here. Check back periodically for the latest revision notes or if you’re experiencing any issues with a model.
2025-02-08: I have added a shortened lever (file "ClampDock 1v00a_103b short lever.stl") which is a substitute for the original lever. This new "short" lever allows you to position the ClampDock in a tighter space but at the expense of making the lever more difficult to feel and rotate. I suggest printing both and testing them for your applications.
