Add a movable 100 mm accessory grid lower on a 26 mm tripod column and lock it at the required height with an M6 clamp.

Need a custom part for your setup? I design print-ready models from photos, sketches and measurements. Request a custom design (https://roqd.one/ith)

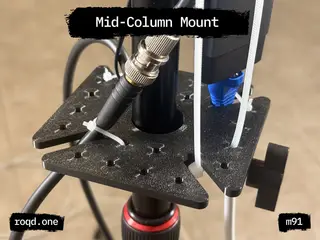

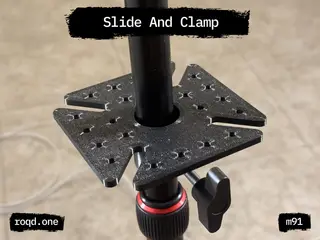

After adding an accessory plate beneath the tripod head, I wanted a second attachment point lower on the column for cables and small electronics. This version slides over the tripod tube, can be positioned where needed and uses an M6 clamping screw with a small pressure pad to hold the plate without pressing the screw directly into the column surface.

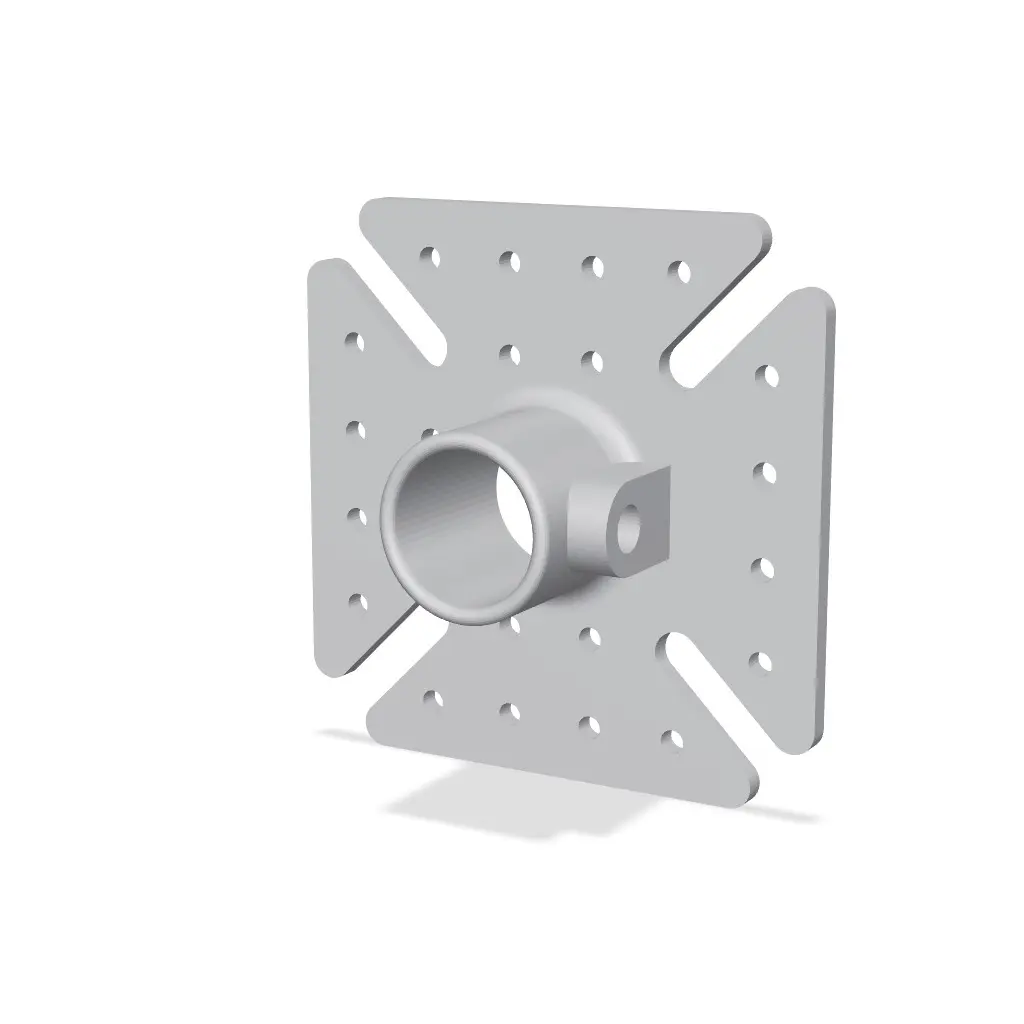

Key details - Plate size: 100 x 100 x 33 mm - Central sleeve outside diameter: 32 mm - Tripod column bore: 26 mm diameter - Accessory holes: 4.2 mm diameter - M6 heat-set insert pocket: 8 mm diameter x 10 mm deep - Small pressure pad protects the column from the clamp screw

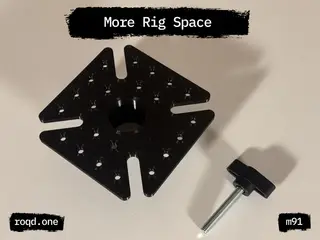

Files included - Clamp-on tripod-column cheese plate - Small clamp pressure pad - included as a separate component in the same STL

Important

Confirm the 26 mm column fit before printing. Use an M6 heat-set insert and a suitable M6 screw, tighten only enough to prevent sliding and place the included pad between the screw and tripod column.
