Cheap Tripod Tilt Plate Fix - 22mm diameter
por Shubhankar S en Thangs

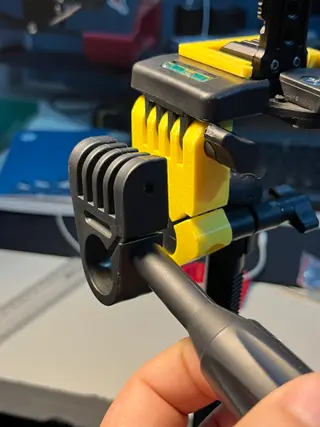

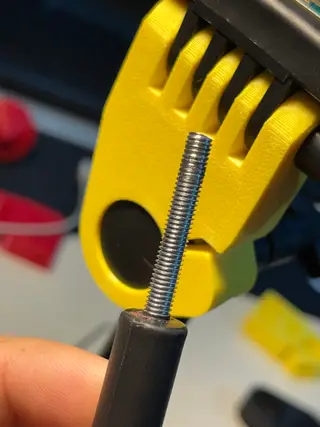

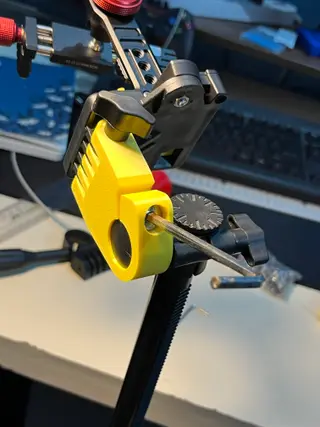

The threads on the tilt lock handle and the square nut inside were badly worn and no longer worked. I had a few sets of M6x30 nut & bolts lying around. So I reverse engineered it to fit the base plate above. Its not amazing, requires an allen key to adjust, but it saved this $10 tripod from becoming
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Shubhankar S.
Archivos (1)
- Tripod Fix-XY plate M6x30.3mf 3MF · 178 KB
- Categoría
- Repuestos
- Formatos
- 3MF
- Descargas
- 0
- Publicado
Sobre este modelo

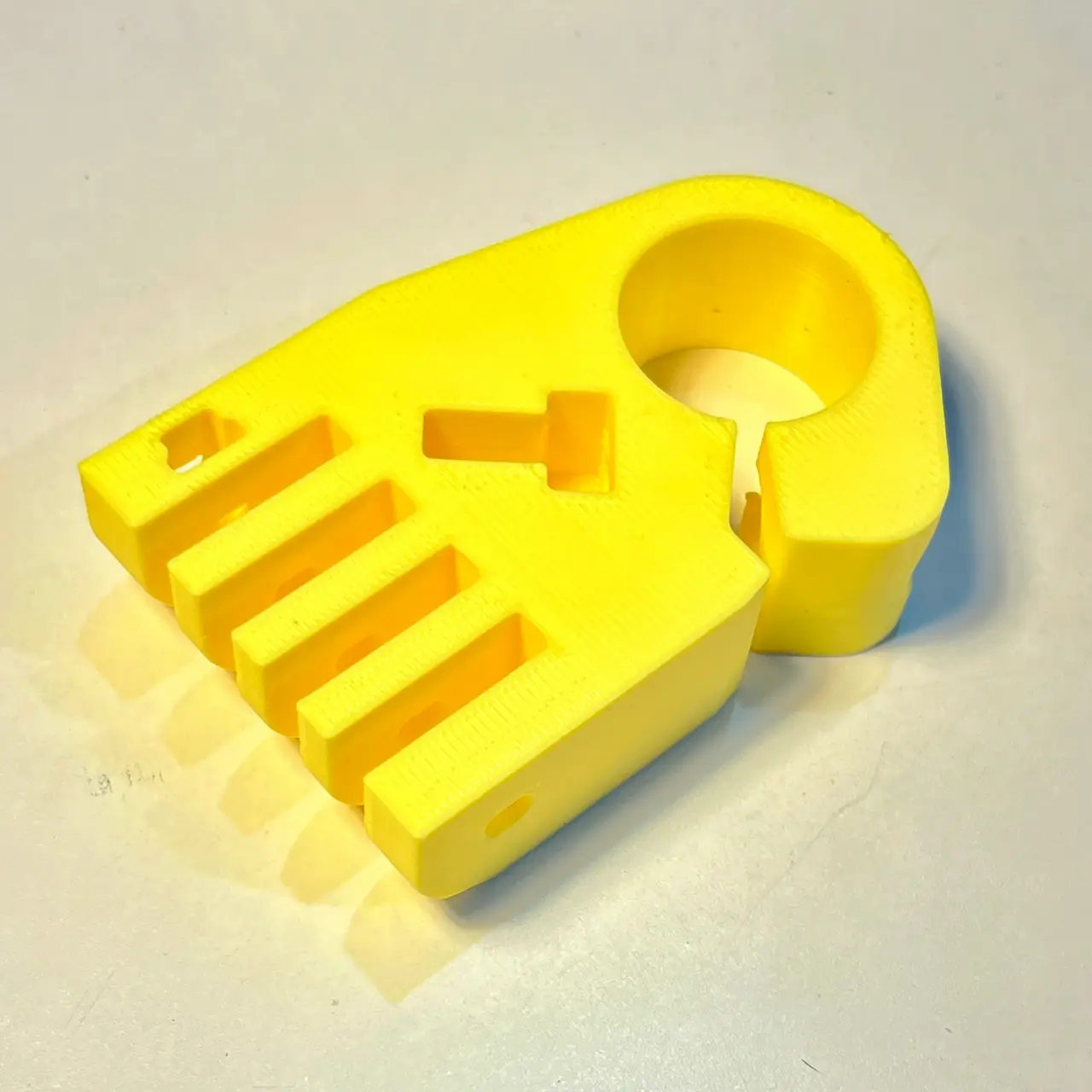

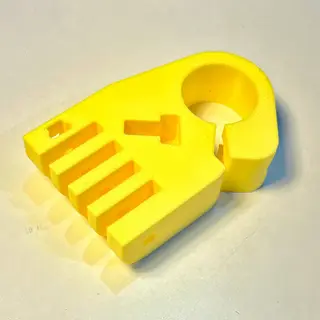

The threads on the tilt lock handle and the square nut inside were badly worn and no longer worked. I had a few sets of M6x30 nut & bolts lying around. So I reverse engineered it to fit the base plate above. Its not amazing, requires an allen key to adjust, but it saved this $10 tripod from becoming $10 junk 🙃 The Diameter is 22mm for the 3mf for simple download and print. And there is the FreeCAD file if you want to make adjustments.
PRINTING INSTRUCTIONS - Print slow (60mm/s outer and 100mm/s inner) for better bonding - 0.16mm layer height - Infill rectilinear at 25% - Perimeters/Walls 6
Designed for an M6x30 Nut and Bolt set
