CELLDROP Battery Dispenser - AA/AAA/9V Wall Rack
A wall-mounted battery dispenser with three gravity-feed channels for AA, AAA and 9V batteries. Load from the open top and take batteries from the trays at the bottom - the next one drops into place automatically.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Shuie B.
Archivos (1)
- CELLDROP_RACK.stl STL · 1007 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 8
- Publicado
Sobre este modelo

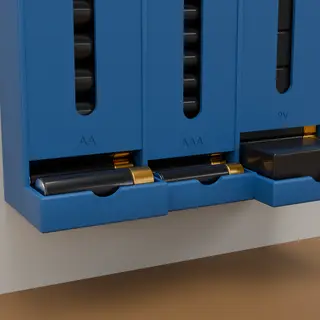

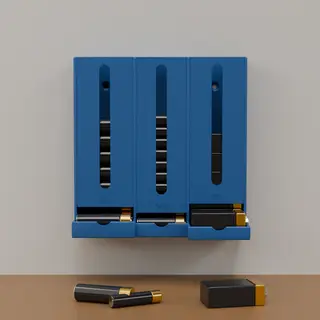

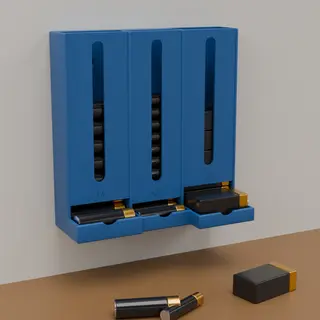

A wall-mounted battery dispenser with three gravity-feed channels for AA, AAA and 9V batteries. Load from the open top and take batteries from the trays at the bottom - the next one drops into place automatically. - Capacity: about 8 AA, 12 AAA and 7 x 9V - Viewing windows show how many are left in each channel - AA / AAA / 9V labels debossed into the front - Mounts with nano tape (recessed pocket on the back) or two countersunk screws, reached through the window slots - Prints upright with NO supports - Size: 160.6 x 165 x 66 mm - fits a 256 mm bed (Bambu Lab A1 etc.)
Print settings: PLA or PETG, 0.2 mm layers, 3 walls, 15% infill, no supports, print standing upright with the trays at the bottom. Optional 5 mm brim.
Great for repair benches, garages, kitchens, offices and junk drawers.
Descripción original del autor, publicada en Thangs.
