Cathedral Lamp - Gothic Lantern E27 Lamp Shade with Tracery Table and Wall Stand
An octagonal gothic lantern with Y-tracery lancet windows, quatrefoil oculi, buttresses, pinnacles and trefoil vents on the roof. The stand is a wrought bracket filled with lancet and trefoil tracery and crowned by a spire, on a clustered pier column and a stepped octagonal plinth.
Cults3D entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalLicencia de uso privado de Cults3D: puedes imprimirlo para ti. No se permite compartir el archivo ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a VRam3D.
Archivos (5)
- Cathedral_Lamp_Arm.stl STL
- Cathedral_Lamp_Shade.stl STL
- Cathedral_Lamp_Table_Base.stl STL
- Cathedral_Lamp_Table_Column.stl STL
- Cathedral_Lamp_Wall_Plate.stl STL
- Categoría
- Hogar
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo
An octagonal gothic lantern with Y-tracery lancet windows, quatrefoil oculi, buttresses, pinnacles and trefoil vents on the roof. The stand is a wrought bracket filled with lancet and trefoil tracery and crowned by a spire, on a clustered pier column and a stepped octagonal plinth.
One design, three ways to use it:

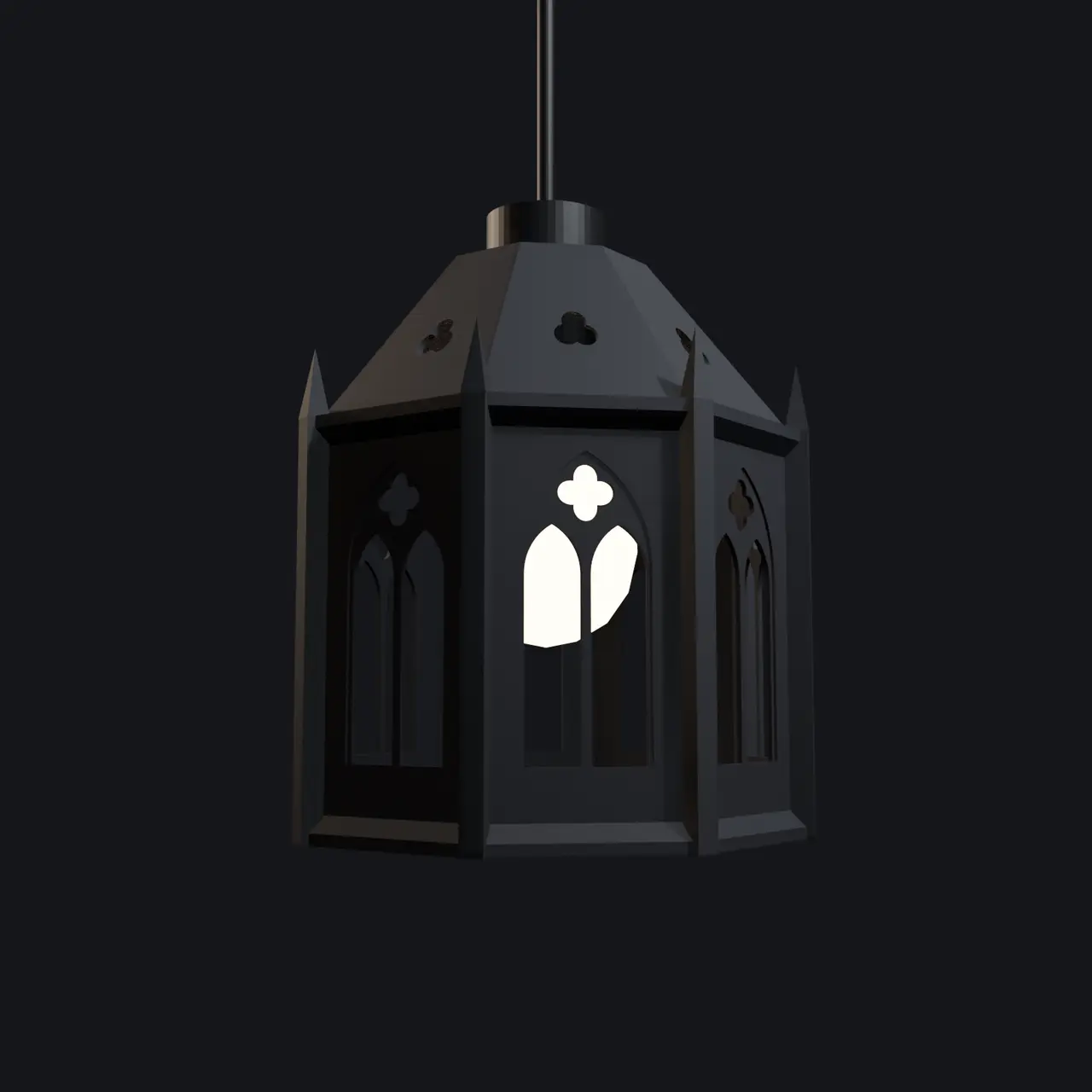

- PENDANT: hang the shade from the ceiling on any standard E27 pendant cord set.

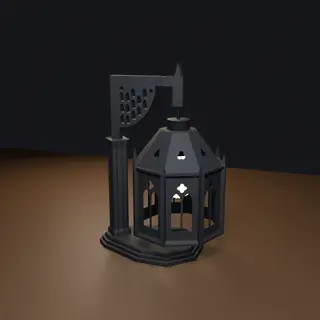

- TABLE LAMP: the shade hangs from the arm of a gothic stand. The shade hangs over a wide base,
so the lamp is very stable (it needs a tilt of about 23 degrees to tip over).

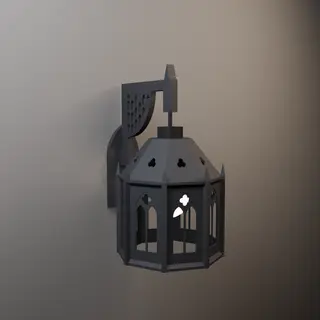

- WALL LAMP: the same arm drops into a wall plate fixed with two screws.
No rewiring, no glue, no screws in the lamp itself: you only need a standard E27 pendant cord set
(cable + lamp holder with shade ring) and an LED bulb. The cable snaps into hidden channels of the

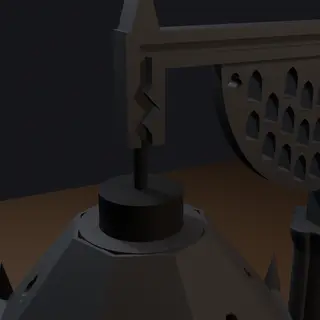

stand, and a zig-zag cable grip at the tip of the arm holds the shade at the height you choose.
Every part prints without supports and is already oriented in the STL files.
WHAT TO PRINT
- Pendant lamp ...... Shade
- Table lamp ........ Shade + Arm + Table_Column + Table_Base
- Wall lamp ......... Shade + Arm + Wall_Plate
PARAMETERS
- Shade: 172 mm diameter x 187 mm high. 8 lancet windows with Y-tracery and quatrefoils, 8 buttresses, 8 pinnacles, 8 trefoil roof vents.
- Stand: tracery bracket with spire, clustered pier column with capital, stepped octagonal plinth, lancet-arch wall plate with tracery.
- Mounting hole: 40.5 mm diameter with a 3 mm thick flat clamping area (standard E27 holder
with threaded sleeve and shade ring).
- Table lamp assembled: 240 x 172 x 345 mm (L x W x H), about 864 g printed
including the shade. Static tip-over angle about 23 deg in the weakest direction.
- Wall lamp: projects 223 mm from the wall, 300 mm high in total.
- Joints: 12 x 14 mm rectangular pegs in 12.5 x 14.5 mm sockets (0.25 mm clearance per side).
- Cable channel: snap-in, 5.4 mm mouth / 6.8 mm inside, for round 2-core cords of 6-7 mm.
- Bulb: A60 LED (60 x 108 mm) or LED filament ST64 / G80; at least 24 mm from glass to plastic.
- Approximate filament: shade 292 g, arm 70 g, column 97 g,
base 289 g, wall plate 70 g.
Descripción original del autor, publicada en Cults3D.
