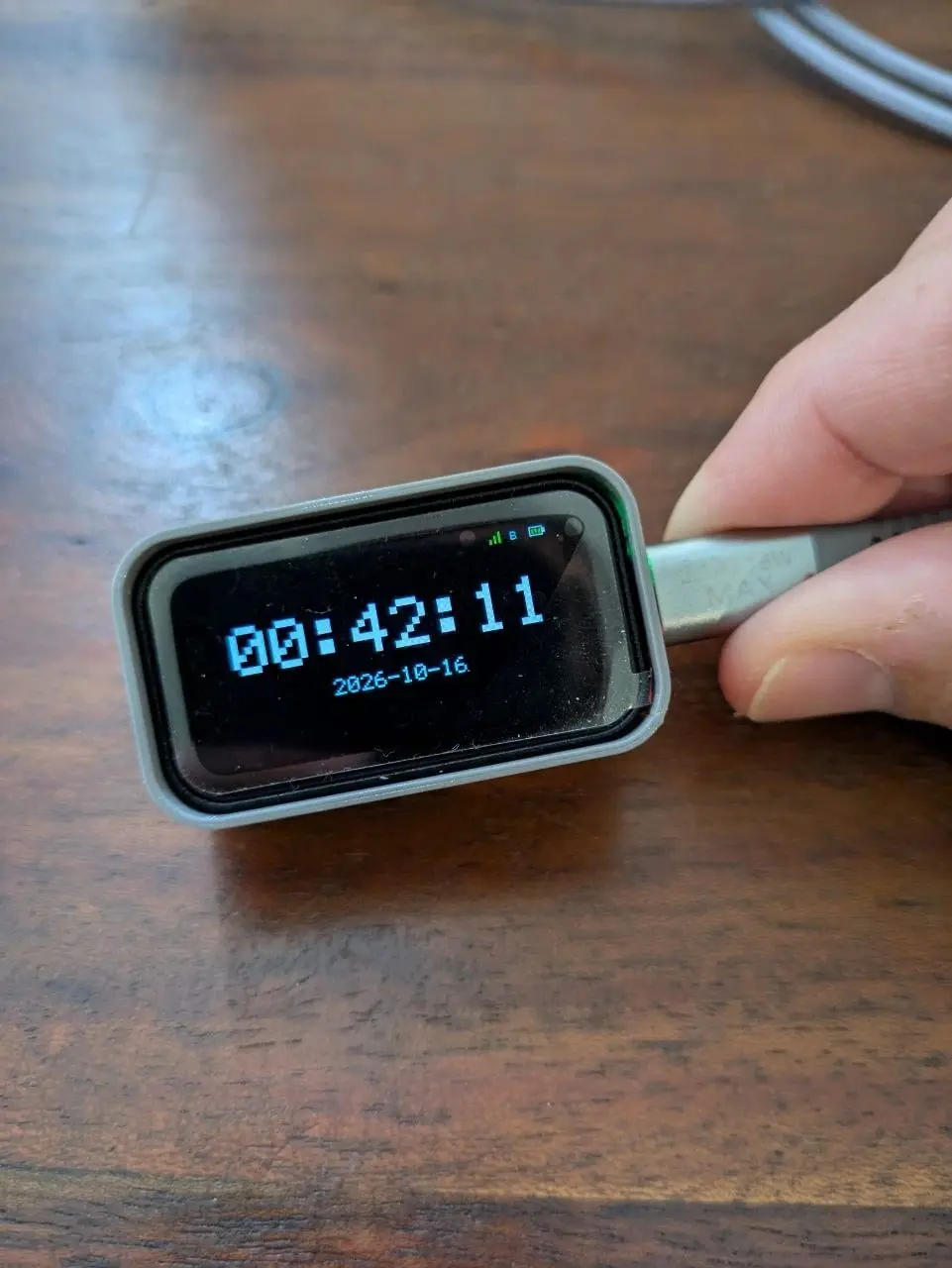

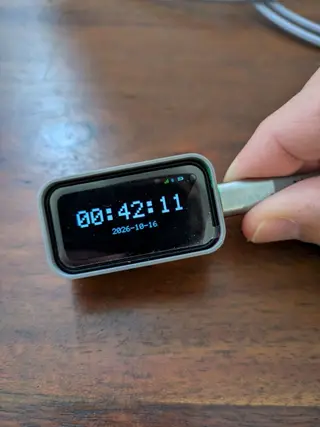

Case for Waveshare ESP32-C6 with 1.47'' touch display
por Matteo Bezzi en Thingiverse
A case for Waveshare ESP32-C6 with 1.47'' touch display. I made multiple versions to better fit my needs: case6 is for the device without header pins soldered. It's the smallest case possible Comes int 2 versions with or without fillet on the borders. There are 4 holes for the m2 screws if you want.
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Matteo Bezzi.
Archivos (5)
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 9
- Publicado
Sobre este modelo

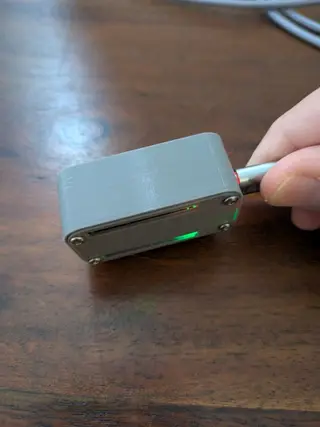

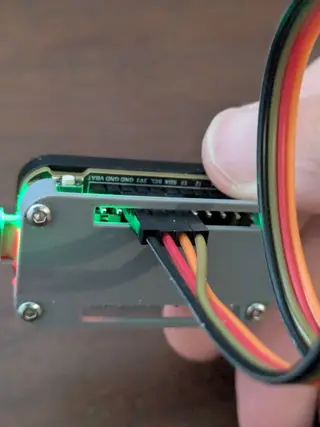

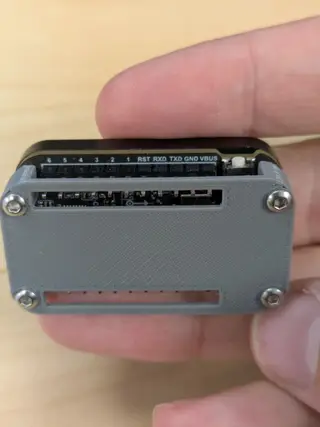

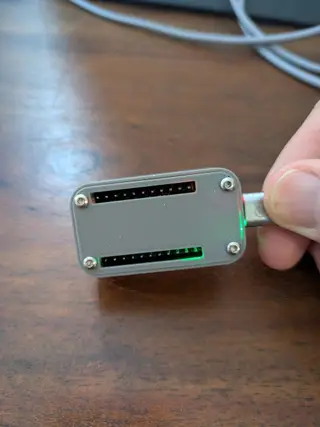

A case for Waveshare ESP32-C6 with 1.47'' touch display. I made multiple versions to better fit my needs: case6 is for the device without header pins soldered. It's the smallest case possible Comes int 2 versions with or without fillet on the borders. There are 4 holes for the m2 screws if you want but the it's not mandatory. case5 is for the device with headers on the bottom. It comes in 2 versions: - as a single piece - as base + walls, The walls can slide up to help during development: pin labels still visible. The base needs the 4 M2 screws
Descripción original del autor, publicada en Thingiverse.
