Casaclang Racing Magnetic RC Tool Caddy

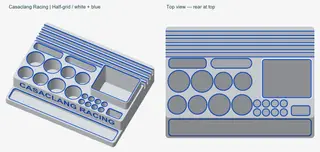

Track-tested magnetic RC pit tool caddy by Casaclang Racing. This white-and-blue magnetic version has been printed and used at the track. DEDICATED STORAGE Five MIP driver pockets (three 23.6 mm and two 20 mm), two 19.4 mm INJORA pockets, a 22 mm universal pocket, and a raised SKIL Twist 2.0 holder (54 x 42 mm opening, 40.8 mm depth; straight configuration). Includes a shock-plier slot, eight 7.2 mm bit pockets, four open-ended 720 Spin channels, a 159.5 x 18 mm shallow cutter tray, and two accessory pockets. Check your own tool dimensions; track use with the designer’s equipment is not a universal fit guarantee. SIZE AND MAGNETS 167.5 x 125.5 x 52.75 mm. 21 mm half-grid feet, equivalent to 4 x 3 standard Gridfinity cells. Forty-eight optional 6.5 mm diameter x 2.4 mm deep underside pockets for nominal 6 x 2 mm magnets. Install after printing; check fit and polarity before gluing. Full-grid alignment preserves standard 42 mm baseplate magnet alignment; half-cell shifts change it. FILES AND PRINTING The 3MF is a geometry-only multipart assembly, not a tested or sliced printer profile. Keep White Body and Blue Rims and Lettering together at their original coordinates. For STL import, import both color files as parts of one object. The accent regions are co-printed, not loose inserts. Assign main/accent filaments, or use the same filament for both parts for one-color printing. Includes the editable STEP assembly, optional magnet-fit coupon, and optional half-grid baseplate-fit coupon. These coupons check fit before a full print; they are not extra caddy components. Print at 100% scale, feet down. Suggested starting settings to evaluate: 0.4 mm nozzle, 0.20 mm layers, four walls, five top/bottom layers, and 15–20% infill. Select your actual printer and filament presets, leave room for any brim/purge tower, and inspect the slice preview. These are starting settings, not the recorded settings of the successful print. No printer-specific tested profile is claimed. PHOTOS AND VALIDATION The real photos show the caddy in white/blue at the track and in black/white as a finished print. Colors are selectable in your slicer. Surrounding cars, cases, bins, tools, and charger accessories are not included. CAD images illustrate the model. The designer confirmed track-tested status on October 14, 2026. Exported STL meshes passed watertightness, winding, and positive-volume checks. Experimental cooling shrouds and untested organizer revisions are excluded. Gridfinity interface reference: https://github.com/kennetek/gridfinity-rebuilt-openscad/blob/main/src/core/standard.scad
