Card Holder Wallet
por nanselm en Printables

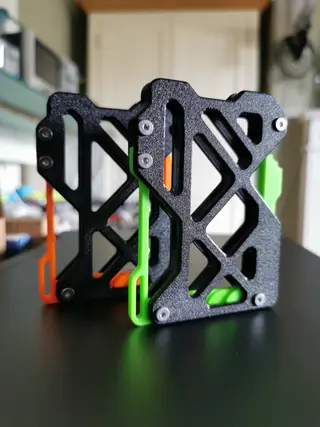

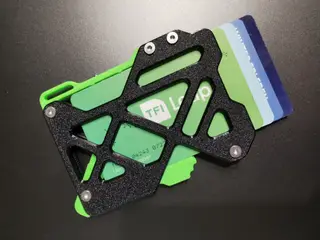

A mechanically inspired card holder for 4 cards.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a nanselm.
Archivos (14)
- frontplate.stl STL · 708 KB
- frontplate-v2-with-spring.stl STL · 726 KB
- backplate.stl STL · 789 KB
- backplate-v2-with-spring.stl STL · 790 KB
- trigger.stl STL · 151 KB
- ejector.stl STL · 159 KB
- sidepart.stl STL · 298 KB
- frontplate.step STEP · 267 KB
- frontplate-v2-with-spring.step STEP · 275 KB
- backplate.step STEP · 286 KB
- backplate-v2-with-spring.step STEP · 285 KB
- trigger.step STEP · 78 KB
- ejector.step STEP · 55 KB
- sidepart.step STEP · 121 KB
- Categoría
- Organización
- Formatos
- STL, STEP
- Descargas
- 3,908
- Publicado
Sobre este modelo

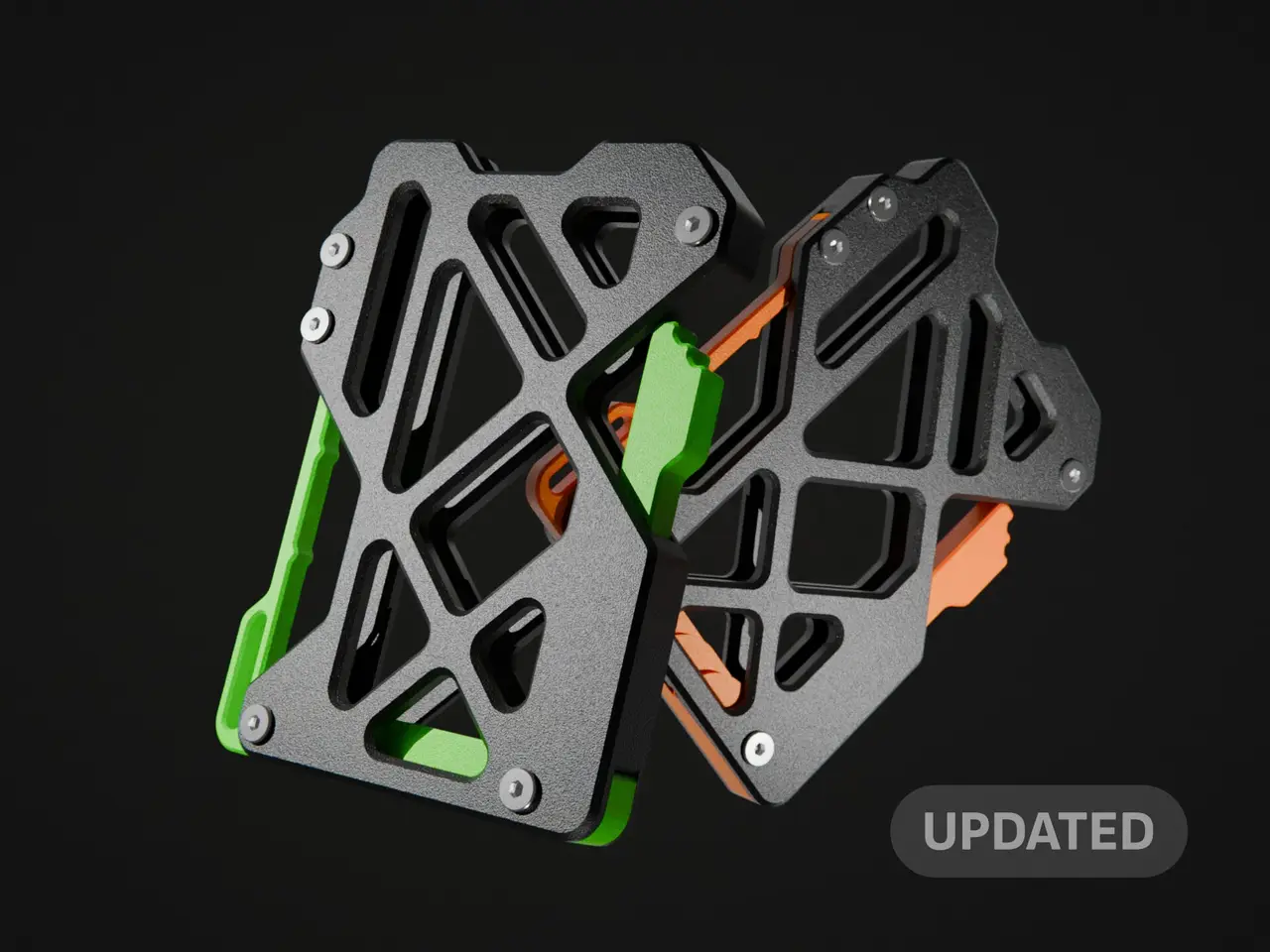

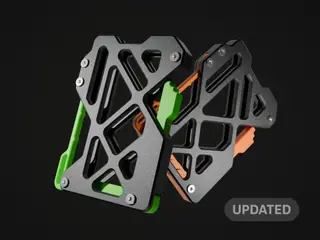

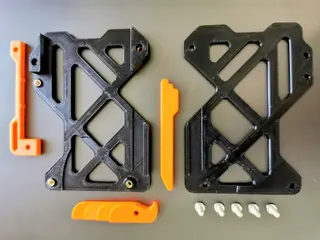

This model is inspired by Wallie(var) - Advanced Lever Action Wallet by SMACKMAX_. The holes in the back plate are designed for 4mm long M3 heat inserts (5 are needed). You will need 5x 10mm M3 flat head screws. No supports needed. Printed in PETG. Project link UPDATE (V2) Version 2 holds 3 or 4 cards in place with side springs. No extra parts are needed, just re-print V2 of the front and back plates. Also (because of the layer lines) the top part of the springs needs to be smoothed out (either sanded or with a sharp knife) to allow the cards to slide in easily.
