Sobre este modelo

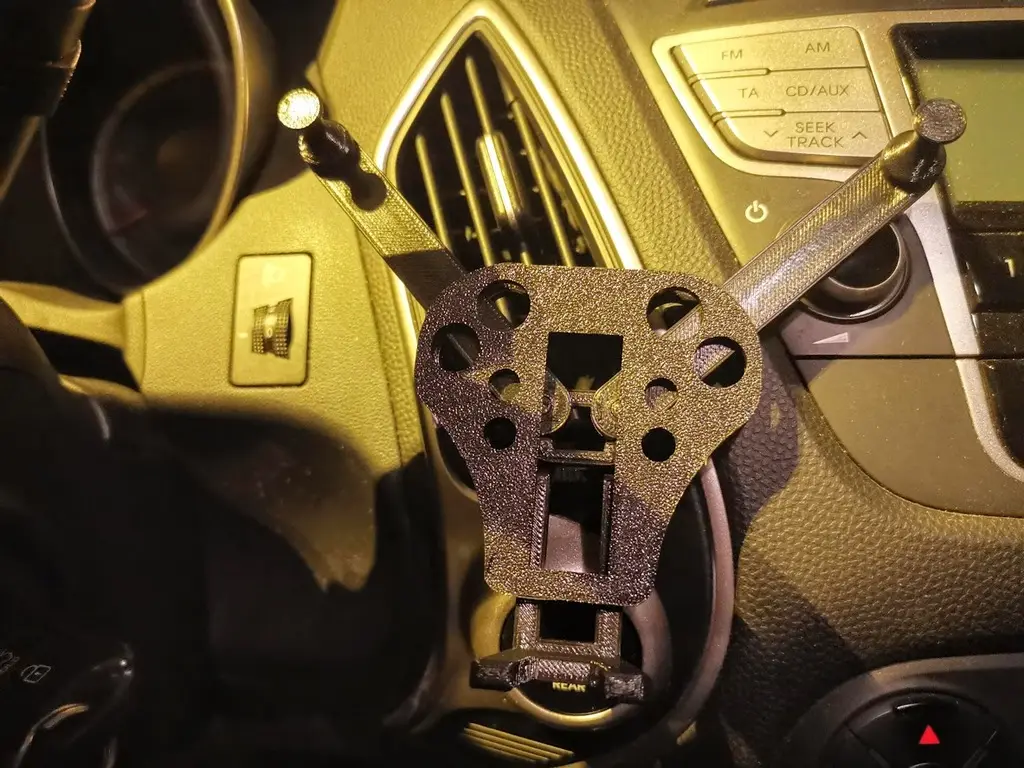

Originally the remix of the ingenious Car Vent Gravity Phone Holder by Abdel Darwish that in the version V3 I remodeled from the scratch, keeping the original idea and general outline. Main changes in V4 (2025-07-26) - Changed parts: - Arm
- Sled
- Clip
- Clip Knob
- Sled: Thicker pins that hold the arms (reported breaking in some cases)
- Arms: Bigger hole for the pins.
- Clip: - The clip profile changed to prevent its jaws from deforming when using for a long time in a hot car
- The tip is remodeled for better grip
- Clip: Remodeled to accept a screw for plastic (diameter 2.8-2.5mm, length 6-10mm)
- Clip Knob: Added a hole for the screw
- NOTE: The screw holding the clip to the clip knob is optional, but highly recommended.
Main changes in V3 - Remodeled body for tighter tolerances (in previous versions sometimes the front and the back plate would detach)
- Clip remodeled for better grip and easier removal from the fins when needed
- Tighter Clip + Clip Knob for click-fit
- Sled remodeled for a phone to sit better
- Arms remodeled for faster print
Main changes in V2 - The clip can rotate to adjust to various vent fins
- Openings in the body to allow air to pass and cool the phone
- UPDATED 2022-09-01: a “hooked” clip with a stronger grip to the ventilation fins and a longer “long” clip, also with a stronger grip. Try and see which one suits you best.
Longer arms to allow access to volume buttons for Huawei, Samsung and iPhone Press the Clip Knob to the Clip - it should snugly fit. It is highly recommended to fix the two with a screw for plastic, diameter 2.8-2.5mm, length 6-10 mm. Alternatively, fix the two with a tiny drop of superglue. There is no need for the glue if you use a screw. Do not glue the clip to the body. It must be allowed to rotate.
Print Settings Printer: - Prusa CORE One
Rafts - No
Supports - On Build-Plate only
Resolution - 0.20
Infill - Clip: 90% Gyroid infill
- Other parts: 30% Gyroid infill
Filament - ASA (Highly recommended) or other temperature-resistant filament
- PA / Nylon (best), ASA, or PETG (a non-brittle one) - The clip could soften when the car heating is on.
Category: Mobile Phone
