Cap that Hole
por Ziv Botzer en Thingiverse

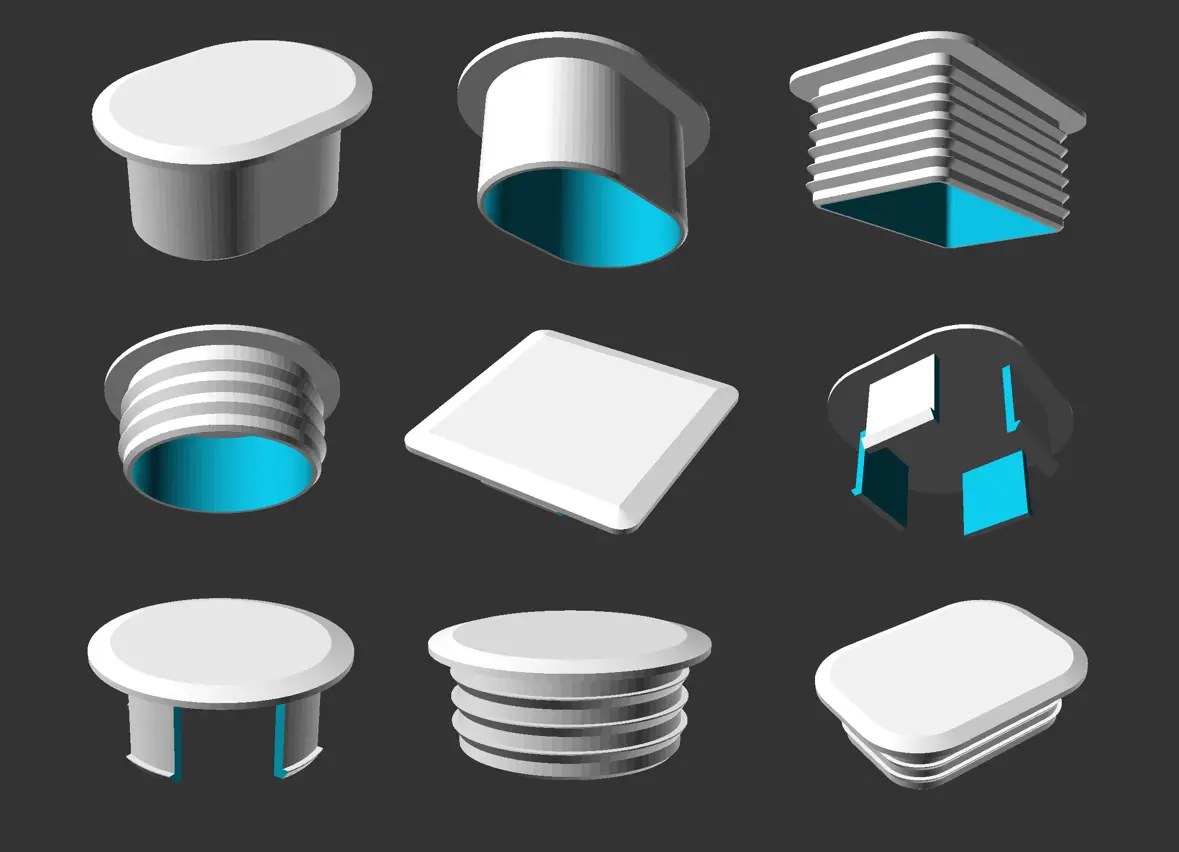

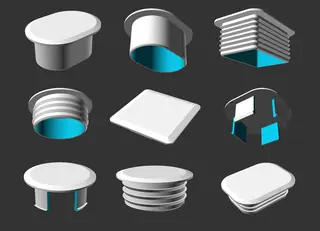

Customizes covers for holes in surfaces such as countertops, etc. Usage: - Enter hole's dimensions: shape (circular/square/rectangular), dimensions, fillet radius. - Define cover: overlap, thickness - Define plug dimensions: length, clearance - Choose if you like to have snaps or fins - Don't...
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Ziv Botzer.
Archivos (1)
- Categoría
- Repuestos
- Formatos
- SCAD
- Descargas
- 170,987
- Publicado
Sobre este modelo

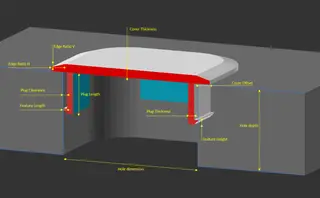

Customizes covers for holes in surfaces such as countertops, etc. Usage: - Enter hole's dimensions: shape (circular/square/rectangular), dimensions, fillet radius. - Define cover: overlap, thickness - Define plug dimensions: length, clearance - Choose if you like to have snaps or fins - Don't forget to TURN OFF "SHOW SLICE", so you'll get a full cap when you generate it.
For best cover surface quality, print upside-down (cover on printing surface) ***If you're having trouble with the online Customizer (which breaks down way too often), you should go and download OpenSCAD at https://www.openscad.org/ it will free you to try more things faster and with greater control.
Descripción original del autor, publicada en Thingiverse.
