Cap Button Propeller — modelo 3D

Cap Button Propeller

por tjeburasjka en MakerWorld

Description. At long last; after collecting feedback from this fantastic community, it's now here!

Descargar en MakerWorld

MakerWorld entrega los archivos a usuarios con cuenta gratuita

Licencia

Solo uso personal

Standard Digital File License

Licencia estándar de archivos digitales: solo uso personal. No se permite compartir, revender ni subir el archivo a otros sitios, ni vender las impresiones.

Al descargar aceptas respetar la licencia y dar crédito a tjeburasjka.

Archivos (4)
  • Claw.stl STL · 1,9 MB
  • Screw.stl STL · 1,5 MB
  • Propeller.stl STL · 941 KB
  • 3mf assembly.3mf 3MF · 2,3 MB
Categoría
Moda y joyería
Formatos
STL, 3MF
Descargas
11,665
Publicado

Sobre este modelo

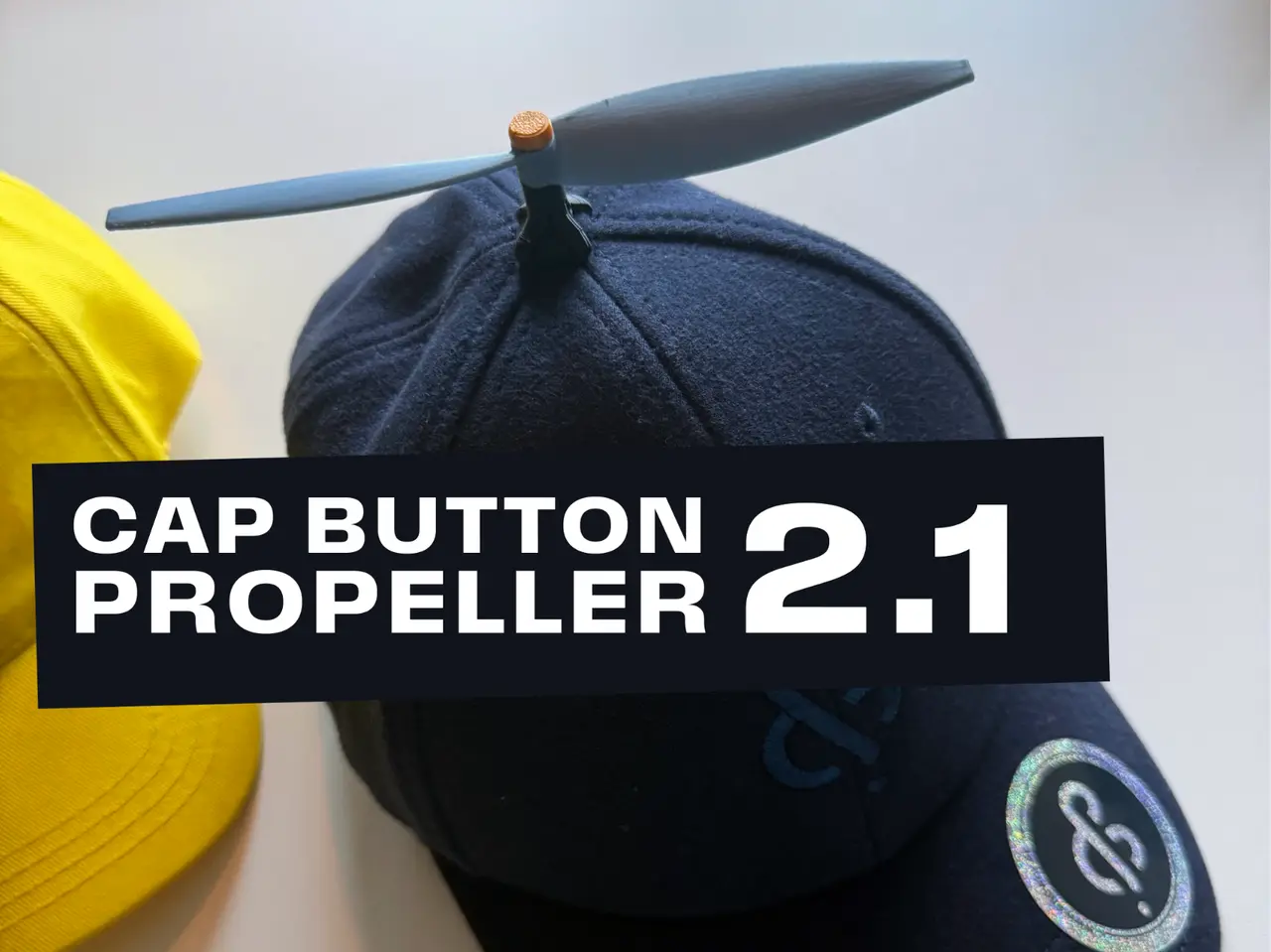

Description At long last; after collecting feedback from this fantastic community, it's now here! The second version of the high fashion accessory - the Cap Button Propeller V2!

- While the first version had a static mounting mechanism prone to breaking, the new version has had it claws enforced with some more plastic, one of the claws is also hinged for a better mounting experience!

- The propeller is a bit beefier as the previous version sometimes broke when removing the supports. The added weight also seems to improve spinning.

- The screw has a new clock crown design for better grip.

Instructions:

- After successful print - screw the screw in and out a few times to make assebly on cap easier.

- Loosen the hinged claw, as it's a small model, the tolerances are tight. Put it on the edge of a table and use some force to loosen it - It should fold outward.

- Find your special occasions cap.

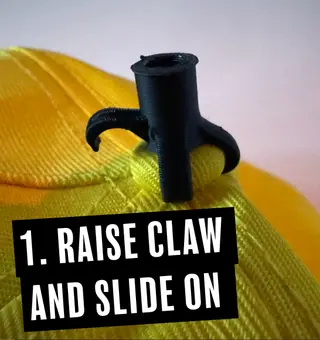

- Fold the hinged claw out and slide the mount onto the cap button.

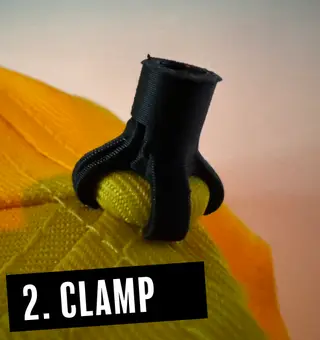

- Push the hinged claw inwards so that it clamps the button.

- Put the screw through the propeller.

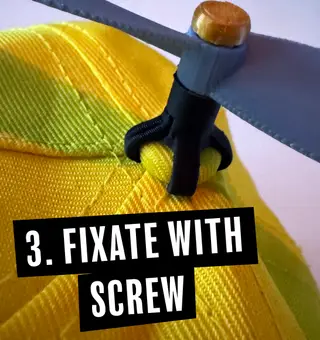

- Screw the propeller onto the mount, all the way down - this secures the hinged claw.

- Enjoy!

💡Going on a date? The propeller edges might come out a bit jagged, if you want to look your best you can go over the edges gently with a sand paper. Move the sanded edges quickly (so it doesn't get burn marks) over an open flame in order to restore the shine.

Boost MeI greatly appreciate any feedback and try to reply and solve issues when applicable. Also feel free to boost if you like the model.

Descripción original del autor, publicada en MakerWorld.
