CaneDock Basic Clip

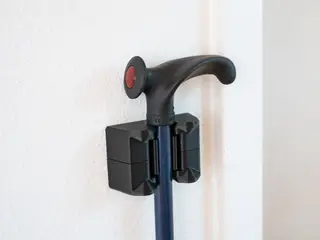

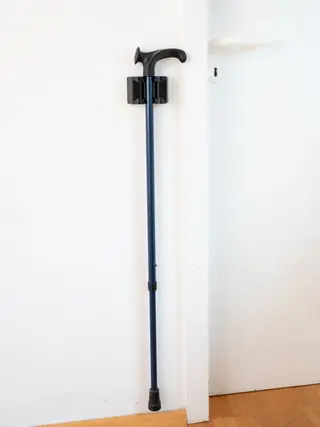

CaneDock Family – Universal Walking Aid & Crutch Holder I was asked to help design a holder for walking aids for elderly people and people with limited mobility. During the design process, I developed several different versions. I decided to release them all for free as the CaneDock Family, hoping they will be useful to others and make everyday life a little easier.

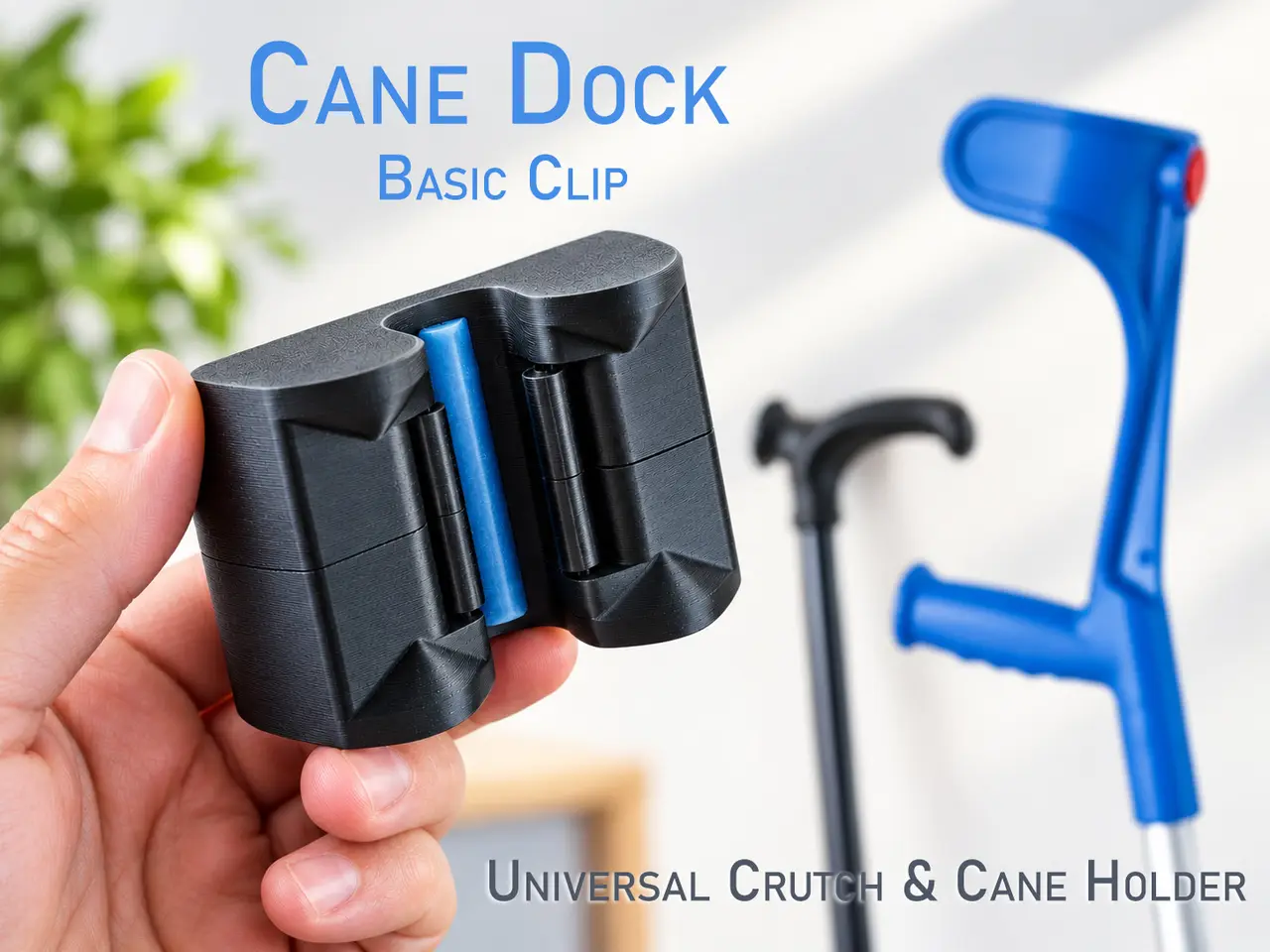

Fits cone sizes from ca. 17- 22 mm Diameter. The CaneDock Family There are four different base designs to choose from: 1. CaneDock Basic Clip Fully 3D printable – no adapter or special materials required. A simple, low-cost solution that works well for everyday use or as a holder for guests who don't have a dedicated adapter. 2. CaneDock Clip Adapter Requires a printed adapter and an optional TPU bumper. The adapter makes it possible to use a smaller wall-mounted holder. This version is especially useful if you want a compact installation.

3. CaneDock Magnetic Round Requires a printed adapter, magnets and an optional TPU bumper. The magnetic connection helps guide the walking aid into position. It allows for a slim, compact design and can also be used to attach the holder to a suitable magnetic surface.

4. CaneDock Magnetic Bar Requires a printed adapter, magnets and an optional TPU bumper. This version uses an elongated magnetic connection. Compared with the round version, the larger target area can make it easier to find the correct position when docking the walking aid.

Links to all four designs can be found at the end of this description. (coming soon) The Problem Many elderly people and people with disabilities or limited mobility have difficulty bending down to pick up their walking aids when they fall over. A suitable holder can help keep a cane or crutch within reach while opening a door, working in the kitchen, or moving around the bathroom. The goal of this project is to make everyday tasks a little easier and help keep walking aids securely stored when they are not in use. Design Goals - Universal fit: Designed to accommodate a wide range of walking aids.

- Durability: A robust design intended for everyday use.

- Tough spring mechanism: Designed to withstand repeated use without easily breaking.

- Rounded edges: Help guide the walking aid into place and reduce sharp edges.

- Easy to print: No special materials or complicated printing setups required.

- Easy installation: Designed for straightforward wall mounting.

- Clean appearance: A simple design that also looks at home in professional environments.

- Accessible design: The Basic Clip works without a dedicated adapter, making it convenient for visitors and shared spaces.

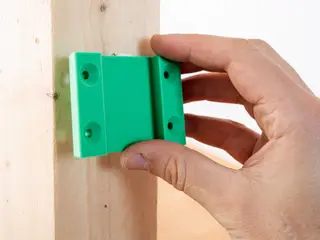

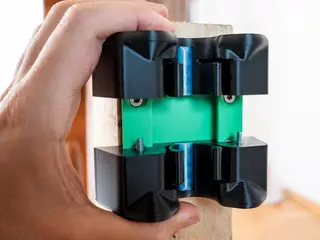

Available in 3 different design variants: - 1. 2-Piece Split Design: Hidden mounting for an ultra-clean, seamless look and maximum stability. (Requires a separate wall bracket).

- 2. 1-Piece Direct Design: Screws directly to the wall – quick, easy to install, and requires no extra mount. (Screws remain visible).

- 3. 1-Piece Hybrid Design: The perfect compromise offering easy installation, strength, and balanced aesthetics.

- 3. 1-Piece Hybrid Design: The perfect compromise offering easy installation, strength, and balanced aesthetics.

All variants provide the same core functionality, with minor differences in printing and mounting.

Printing Instructions I tested my prototypes using both PLA and PETG. Both worked well during testing, but I recommend PETG for long-term use because of its toughness and durability. Main holder - Material: PETG recommended; PLA may also work depending on the application

- Perimeters: 3–4

- Infill: 25%

Supports: You only need small supports (on the buildplate) for the Clipping mechanism. Optional TPU bumper - Material: TPU, 90A used for my prototype

- Perimeters: 2

- Infill: 15–20%, Gyroid

A softer TPU may also work nicely. Print settings may need to be adjusted depending on your printer, filament and the intended application. Required Hardware - Up to 4 screws for wall mounting, depending on the version and installation

- Recommended screw diameter: 3.5–4.5 mm

- For the split-design version: 2 × M4 screws, approximately 10–30 mm long.

-

Choose screws and wall plugs suitable for your wall material and the expected loads. Optional Add-on: Distance Plate Some forearm crutches have large armrests that may interfere with the wall when inserting the crutch into the holder. For these cases, I designed a simple distance plate that moves the holder farther away from the wall. You can scale the plate along the Z-axis to adjust its thickness to your needs. "Work in Progress" All four core designs have been completed and tested on a few walking aids. I already have some ideas for further versions and improvements, but for now, I think the CaneDock Family offers a good range of solutions to get the job done! 🙂 Have an idea, need a specific size, or have a suggestion for improvement? Don't hesitate to get in touch! I'm happy to hear your feedback and see how the designs could be improved. A quick note: While I've tested the designs on a few walking aids, I haven't been able to test them in everyday use myself. Real-world feedback would be greatly appreciated! If you try one of the designs, I'd love to hear how it works for you. Other Uses Of course, you might find other uses for the CaneDock, too — perhaps even as a holder for brims or other suitable items. 🙂 If you remix the design or find an interesting new application, I'd love to hear about it! I hope the CaneDock Family helps make everyday life a little easier for someone. Enjoy printing!
