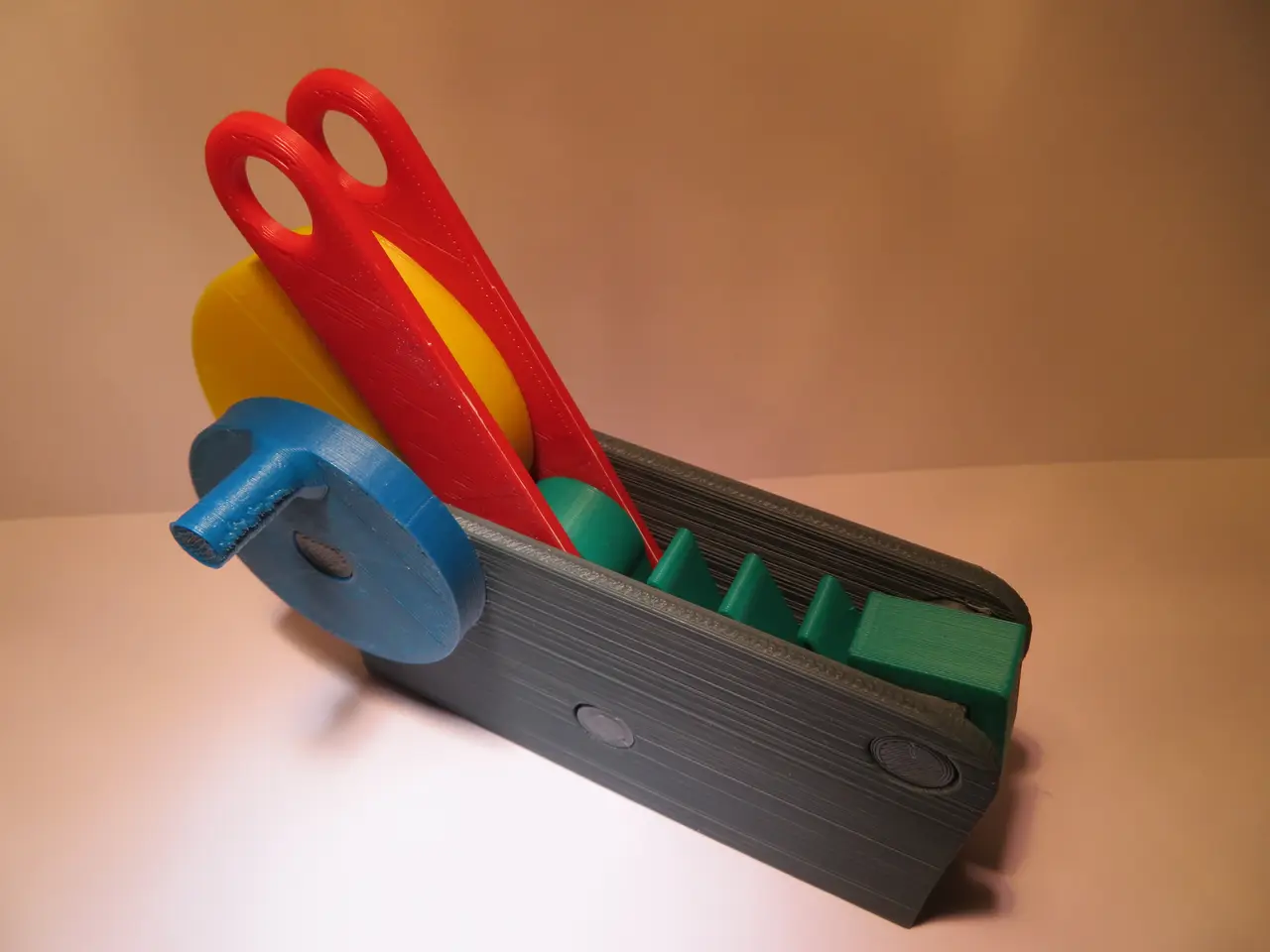

Camshaft spring mechanism
por EL3D en MyMiniFactory
This is a fun little project I did on a camshaft spring mechanism. It shows a back and forth movement, were it goes forth quit slow and then goes back really fast, when the rotational speed of the handle stays the same. The back going movement takes about ¼ of the forth going movement.
Licencia
Solo uso personalMyMiniFactory Exclusive - Credit - Remix - Noncommercial
Licencia de MyMiniFactory: puedes imprimirlo y remezclarlo dando crédito, sin fines comerciales.
Al descargar aceptas respetar la licencia y dar crédito a EL3D.
Archivos (10)
- Categoría
- Educación
- Formatos
- STL
- Descargas
- 264
- Publicado
Sobre este modelo
This is a fun little project I did on a camshaft spring mechanism. It shows a back and forth movement, were it goes forth quit slow and then goes back really fast, when the rotational speed of the handle stays the same. The back going movement takes about ¼ of the forth going movement.
I also challenged myself to only use 3D printed parts. So there are no fasteners needed.
This mechanism might be useful if one wanted to make something that requires a pick and place movement. For the moment it’s actually just a desk toy.
Descripción original del autor, publicada en MyMiniFactory.
