CamRoller

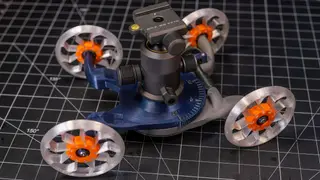

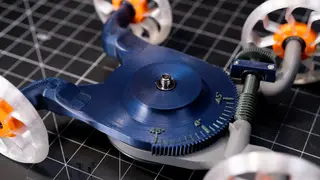

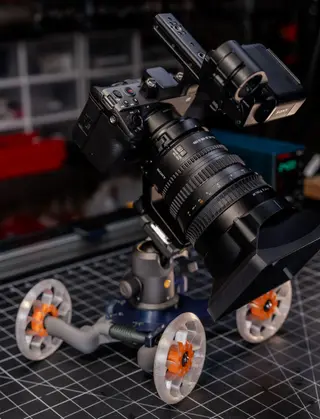

A tabletop camera roller for getting smooth, panning shots at low angles. Adjustable steering angle from -45 to + 45 degrees. I haven't tested it to max capacity, but it's handled my Sony FX3 with a pretty chunky lens (Sony FE PZ 28-135) without breaking a sweat.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Bubs B.
Archivos (18)
- BearingRetainer.3mf 3MF · 80 KB
- Rot_bot.3mf 3MF · 106 KB
- Rot_center.3mf 3MF · 735 KB
- Rot_top.3mf 3MF · 5,2 MB
- Wheel_Right_single.3mf 3MF · 510 KB
- AngleKnob_ad.stl STL · 590 KB
- BearingRetainer.stl STL · 142 KB
- Rot_bot.stl STL · 283 KB
- Rot_center.stl STL · 2,5 MB
- Rot_top.stl STL · 6,8 MB
- WheelFlex.stl STL · 808 KB
- WheelHub.stl STL · 274 KB
- Worm.stl STL · 1,8 MB
- WormRetainer.stl STL · 116 KB
- CameraRoller_V1 v5.step STEP · 17,8 MB
- Rot_top.step STEP · 4,1 MB
- Wheel_sub_ab.step STEP · 455 KB
- WheelHub_left.step STEP · 453 KB
- Categoría
- Tecnología
- Formatos
- 3MF, STL, STEP
- Descargas
- 1
- Publicado
Sobre este modelo

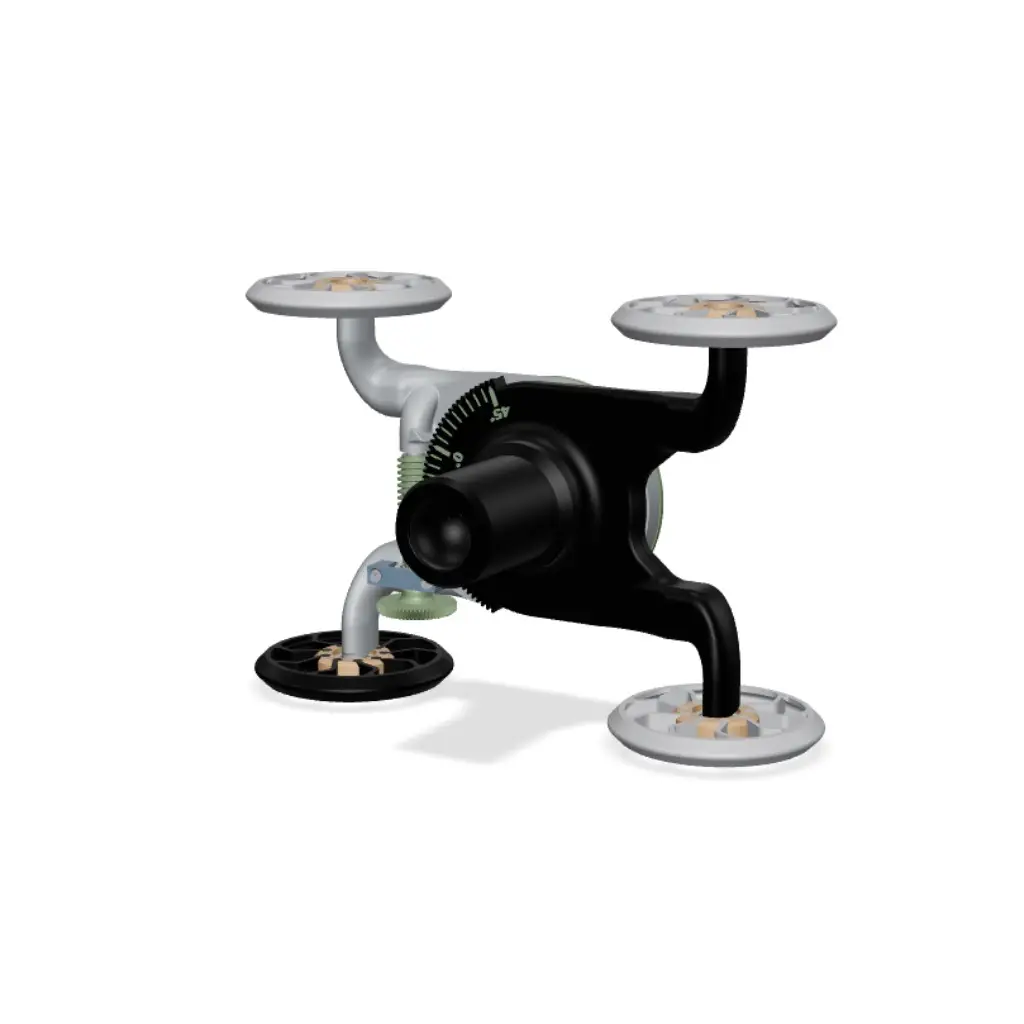

A tabletop camera roller for getting smooth, panning shots at low angles. Adjustable steering angle from -45 to + 45 degrees. I haven't tested it to max capacity, but it's handled my Sony FX3 with a pretty chunky lens (Sony FE PZ 28-135) without breaking a sweat.
It is designed for a 1/4-20 heat set in the top of the Rot_top part that interfaces to a ball head (or I suppose whatever mount of your choice). Above that 1/4-20 fastener is a 17mm diameter, 4mm depth counterbore that is intended for a male-to-male adapter while maintaining intimate contact between the ball head and Rot_top.
Full details on the design and parts used here (https://www.patreon.com/BubsBuilds/posts/camroller-165416908?utm_medium=clipboard_copy&utm_source=copyLink&utm_campaign=postshare_creator&utm_content=join_link)
A Short of it in action (https://youtube.com/shorts/uB8IcLz5CSs?feature=share)
Descripción original del autor, publicada en Thangs.
