Camera mount for Prusa i3 MK3/MK3S
por JSund en Printables
Camera mount that attaches to the aluminium extrusion of the frame of the Prusa i3 MK3/MK3S.
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a JSund.
Archivos (4)
- Categoría
- Para tu impresora
- Formatos
- STL, GCODE
- Descargas
- 5,248
- Publicado
Sobre este modelo

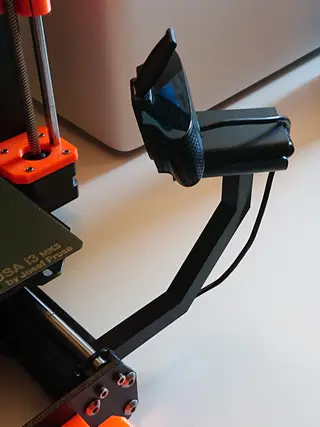

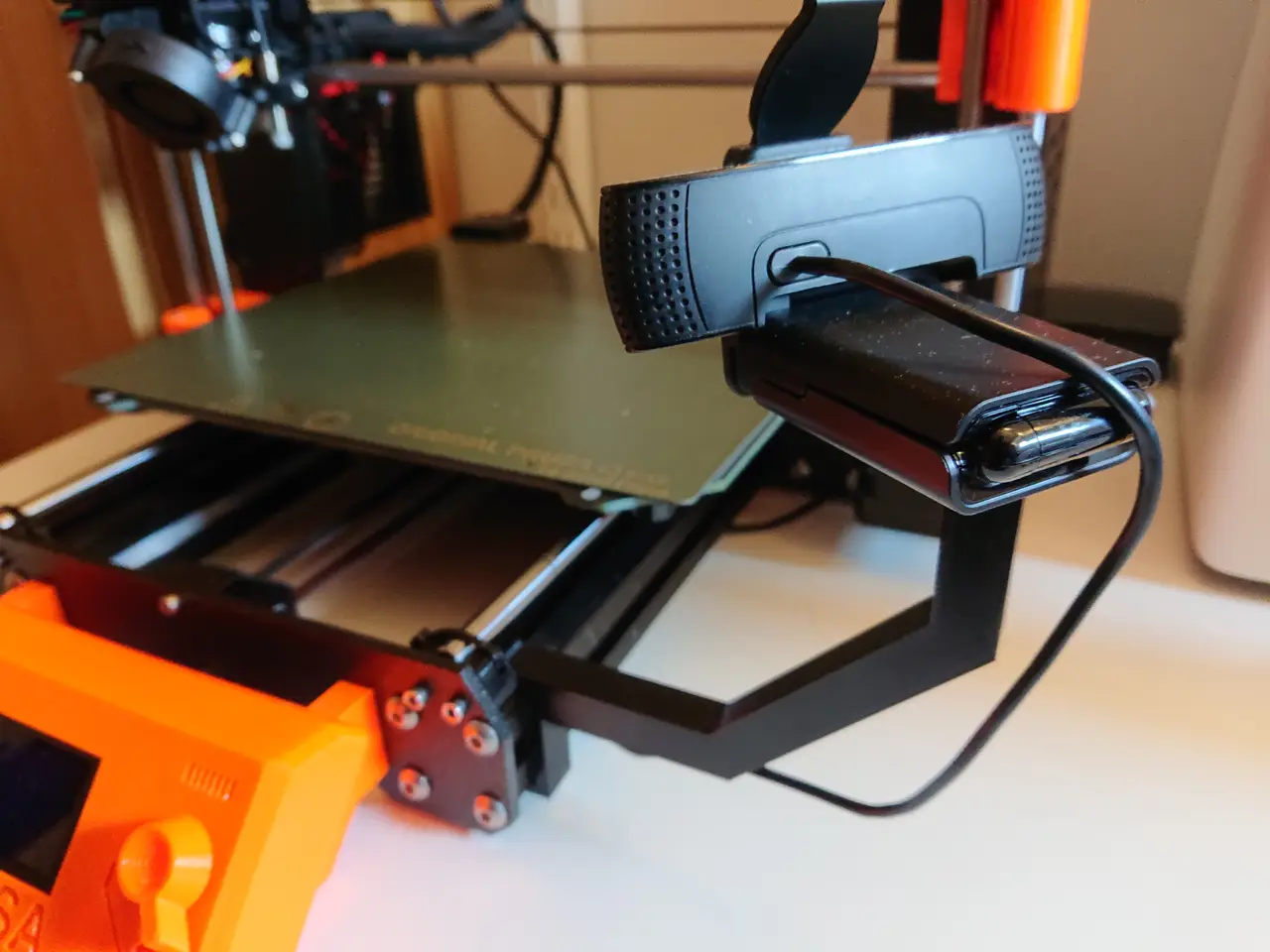

Camera mount that attaches to the aluminium extrusion of the frame of the Prusa i3 MK3/MK3S. The mount should fit any webcam with a 1/4" tripod mount by using a 1/4"-20 screw.
The clip might interfere with the Y carriage bearing if mounted on the left side of the printer, so it would need to be redesigned if it's to be used on that side.
The version with cable clips is designed to fit a 3 mm cable, such as that of a Logitech C920/C930e
Print instructions Prints well with the setting used for spare parts for the Prusa i3: PETG with 0.2 mm layer height and 20% grid infill.
Descripción original del autor, publicada en Printables.
