Camera mount for Elegoo Neptune 3 and Neptune 4 Pro Plus Max (Display Replacement - Klipper Webcam)
por Vaterabend en Printables
When you are using Klipper and don't need the original display then you can use the screw holes to mount your camera.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Vaterabend.
Archivos (2)
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 1,640
- Publicado
Sobre este modelo

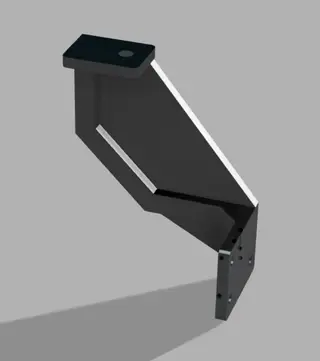

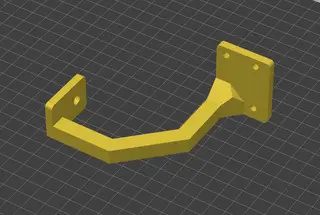

UPDATE The camera mount was working but when there were fast short movements with many direction changes it started to wobble. I added a V2, it doesnt look as nice but it is more stable. If you are into timelapse videos then you definitely should go with V2.

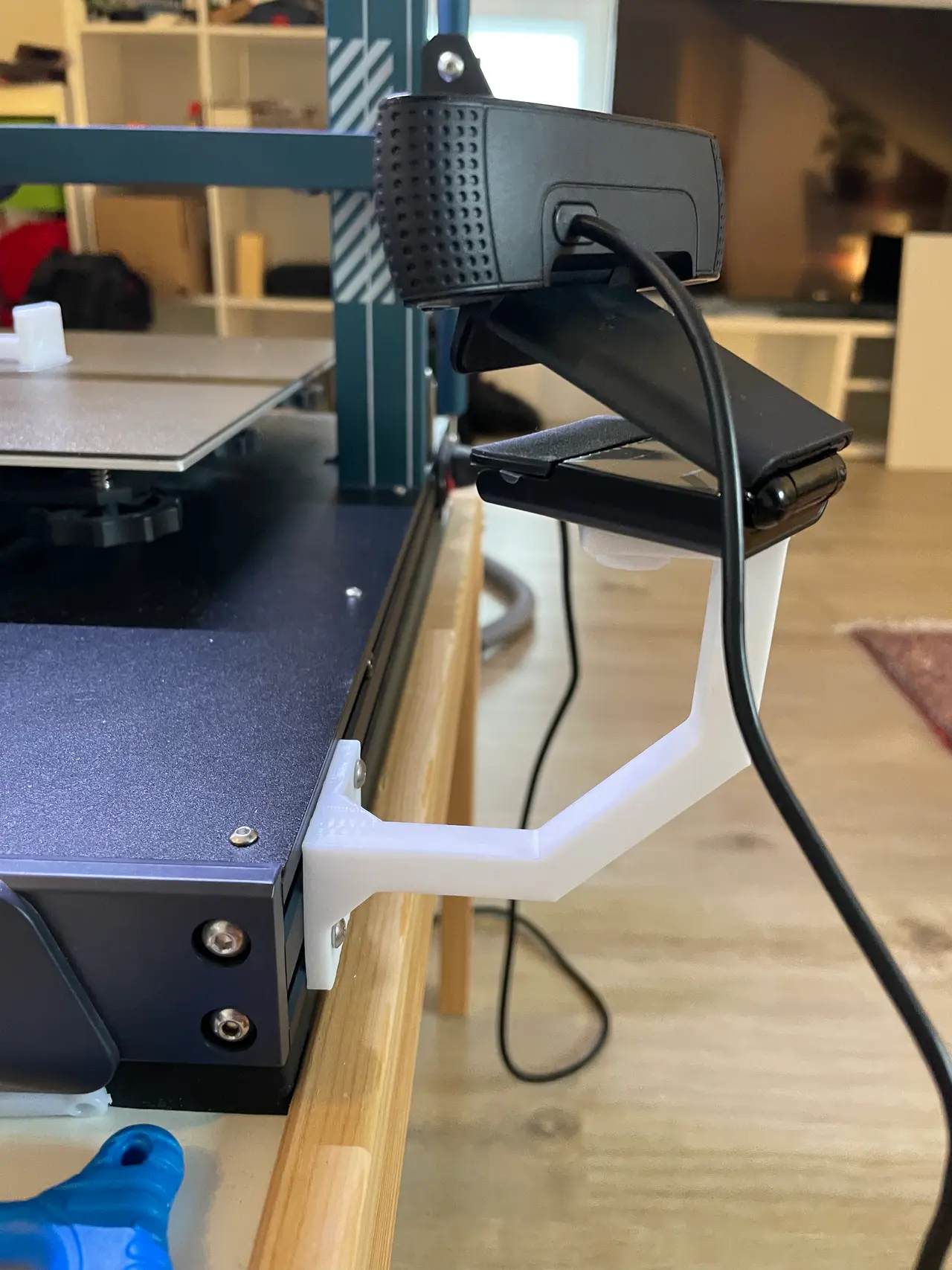

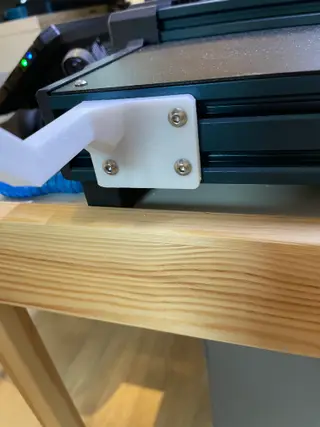

I am using the Sonic Pad with my Elegoo Neptune 3 Plus. I removed the now useless original display and created a camera mount which uses the screw holes of the display mount. I used the Knurled 1/4-20 Camera Mount Screw by jazzychad to connect my Logitech C920 to the camera mount. You can use all webcams with a ¼ mount screw hole.
The video I added is using a quick and dirty print of the camera mount with only 5% infill. It wasn't sturdy enough for my wobbling table. ;)
Print Material: PETG Infill: 25% Layer Height: 0.2mm Supports: none / support enforcers only (not sure if needed! Also new to FDM printing) You can print it flat and the build plate to avoid using supports.
Descripción original del autor, publicada en Printables.
