Camera Arm - Standard Tripod Mount

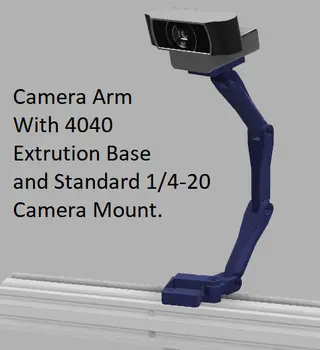

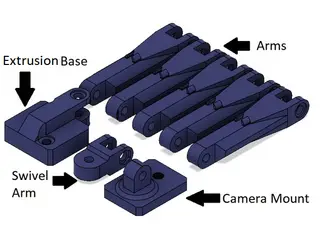

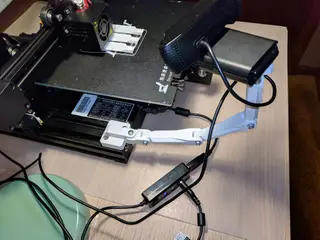

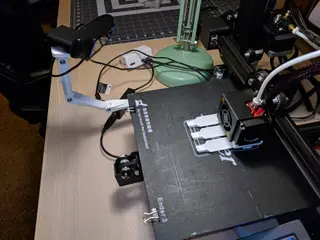

Arm style camera mount I made for Octoprint and my Logitech c920 webcam. This design is made to mount to 4040 or 2020 extrusion using two t-nuts. Tested and fitted on Ender 3. Default Setup is using 5 arms but this could be extended or shorted as needed. All nuts and screws have an inset for easy install and clean look. I am willing to create additional mounting styles, just send me a request! Print Settings: -Supports recommend, everywhere 50 degree overhangs - increase support gap to make support removal clean. -Recommend print speed 40mm -Infill density 15% or greater -Keep temp are best setting for your brand filament Hardware Needed For default setup : - 7 M5 hex nuts ( m4 if your unable to get a tight tolerance/print above .1 layer height) - 7 M5 Screws, 18-20mm length is recommended for flush fit.(m4 if tolerance is to tight) - 2 5mm t-nuts for mounting to 4040 or 2020 extrusion. - 2 5mm, 14mm length for mounting base to extrusion. - 1 M6 screw, 8mm length, For mounting camera on base with standard 1/4-20 tripod mount.

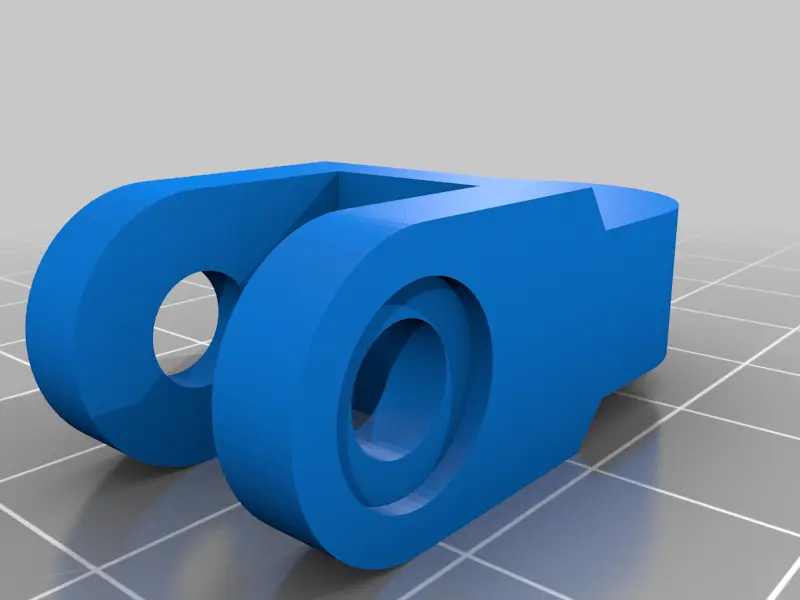

UPDATES V1.3 -Added STL for Swivel Arm Joint per request, now allows adding additional points of rotation. v1.2 -Added STEP file per request -Added 2020 base mount per request v1.1 - Added larger cable management clip. Now accommodates 2-5 mm cable thickness. - Added Gcode with all parts in correct print orientation, picture of print orientation added.
