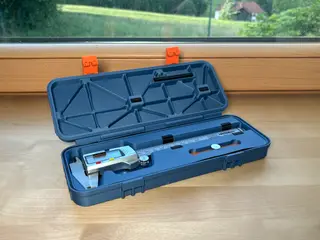

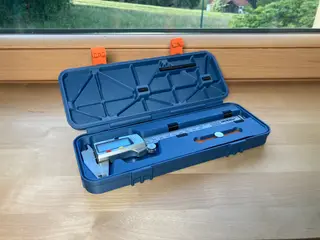

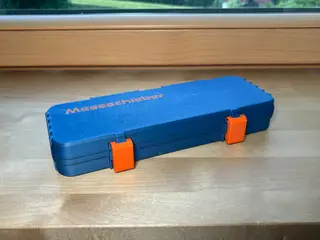

This is a universal, screwless and rugged caliper box, which should fit most of commonly used calipers.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a RDesigns.
Archivos (14)
- Standart Profile CR2032 Batterie.3mf 3MF · 548 KB
- Standart Profile LR44 Batterie.3mf 3MF · 538 KB
- Gummi 1.3mf 3MF · 45 KB
- Gummi 2.3mf 3MF · 27 KB
- Gummi 3.3mf 3MF · 5 KB
- Gummi 4.3mf 3MF · 17 KB
- Gummi 5.3mf 3MF · 9 KB
- Latch.3mf 3MF · 49 KB
- Lid.3mf 3MF · 219 KB
- Wheel.3mf 3MF · 23 KB
- Mainbody LR44.3mf 3MF · 222 KB
- Mainbody CR2032 Battery.3mf 3MF · 226 KB
- Caliper Box V1.1 CR2032 Battery.f3d F3D · 4,2 MB
- Caliper Box V1.1 LR44 Battery.f3d F3D · 4,3 MB
- Categoría
- Organización
- Formatos
- 3MF, F3D
- Descargas
- 26
- Publicado
Sobre este modelo

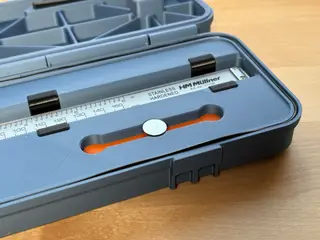

This is a universal, screwless caliper box, which should fit a lot of commonly used calipers. The TPU seal (which is made out of raw TPU filament) is optional, but it will improve the the tightness of the clamping mechanism. Special printsettings: The TPU parts should be extra soft, make sure to set the following settings or use my printprofile: Perimeters: 1 Top & bottom layer: 2 Infill type: Gyroid Infill: 5%
Customization: I have provided the Fusion 360 file for customization. Instructions and assembly guide: It's pretty straight forward, just use raw filament and push it into the provided hinge holdes. For the latch install the wheels also with raw filament. After that, attache the latch to the lid with raw filament. Now you can use TPU filament for the seal, you don't need to print something, just raw filament again which you can cut to size. That's it!

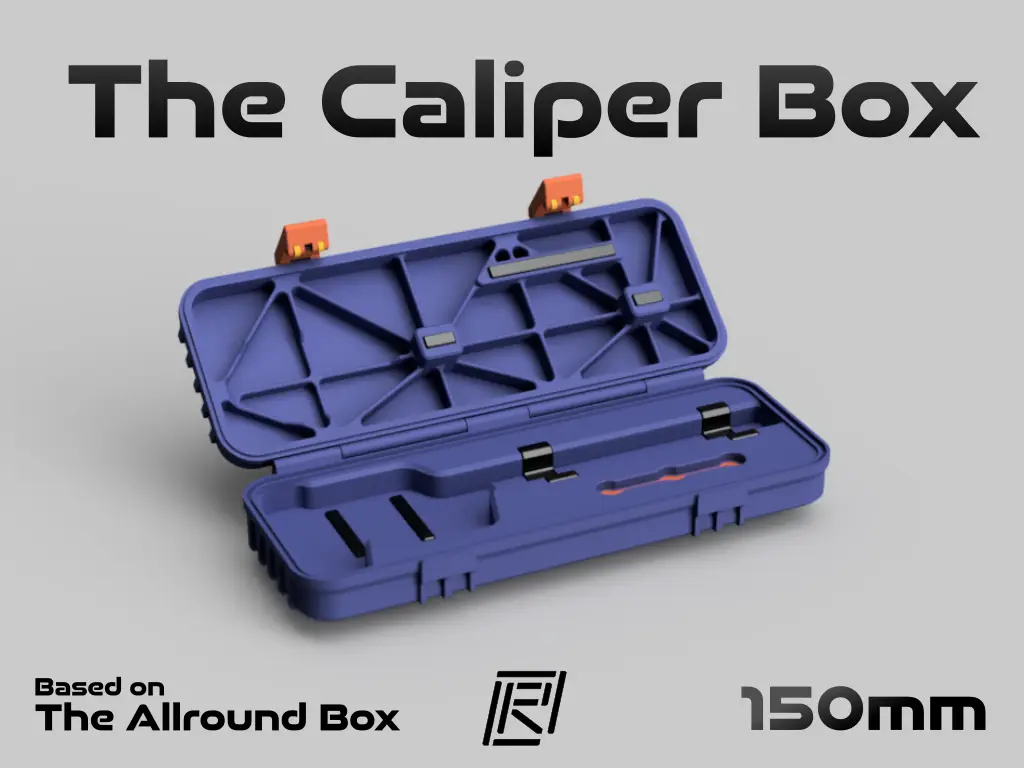

The base for this box design is provided through my previous box design “The Allround Box”
