Calibration Block_Ossfila
por Ossfila en MyMiniFactory
Test tube for 3D printer or new filaments.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Ossfila.
Archivos (1)
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 195
- Publicado
Sobre este modelo

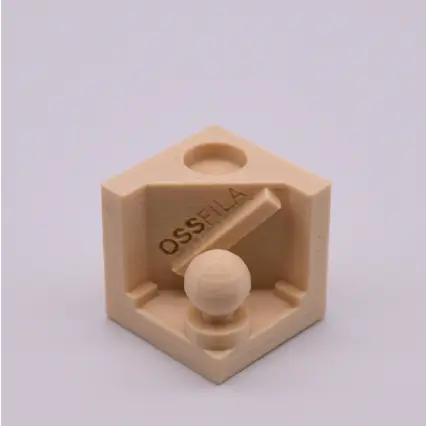

Test tube for 3D printer or new filaments.
With small amount of filament used, you can test your 3D printer with the following features.

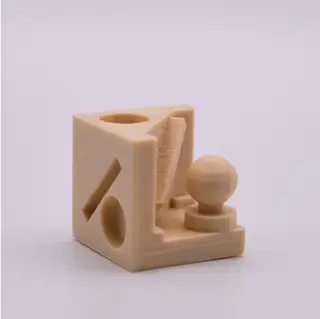

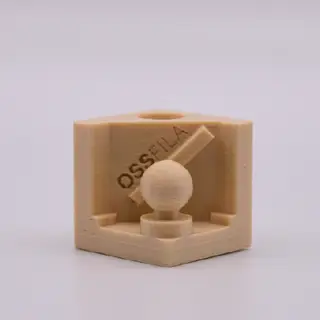

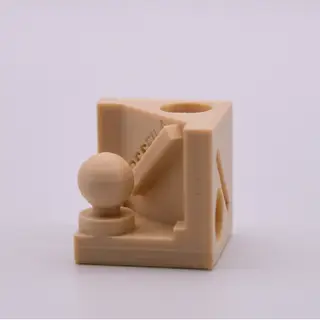

This cube includes features like small holes, troughs, crest, cylinders, and sphere.
You may understand the performance of your 3D printer or filament with comparison to our database.

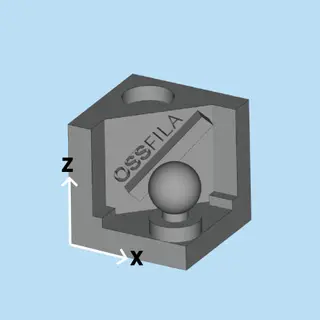

Measuring size:
- X, Y, Z axis: 25mm
- Holes diameter: 10mm
- Trough: 20mm
- Crest: 20mm
- Cylinders: 10mm
- Sphere: 10mm
Printing information:
- Ambient temperature: 25 degree C
- Humidity: 52%
- Printer brand: Intamsys
- Printer model: Funmat HT
- Rafts: Yes
- Support: touching build plate only
- Resolution: X&Y: 12.25 micron, Z: 1.25 micron
- Infill density: 30%
- Layer thickness: 0.15mm
- Print speed: 60mm/s
- Nozzle temperature: 210 degree C
- Build plate temperature: N/A
- Chamber temperature: N/A
- Filament brand: Ngai Hing Hong Company Limited
- Material: PLA classic, 15g
- Color: Casual Brown
- Print time: 1h 46min
Suggested instruction for measurement:
Descripción original del autor, publicada en MyMiniFactory.
