Cable Tie with Threads/Screw for multiboard

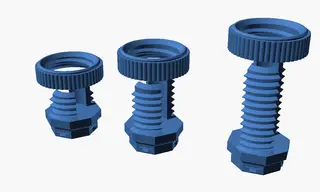

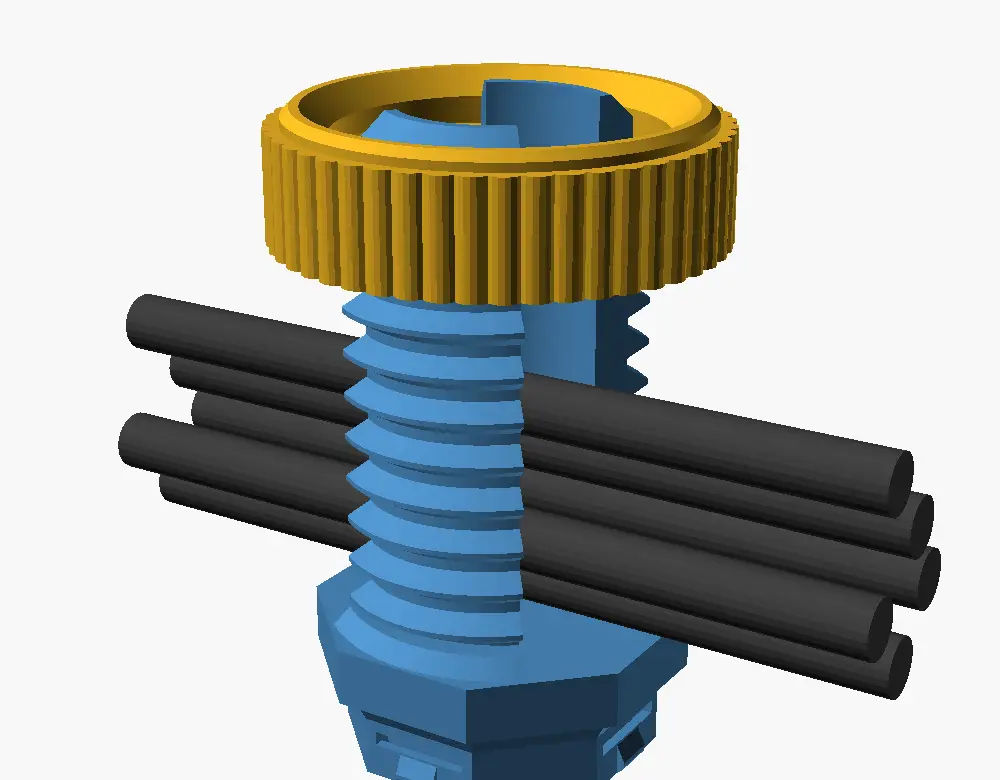

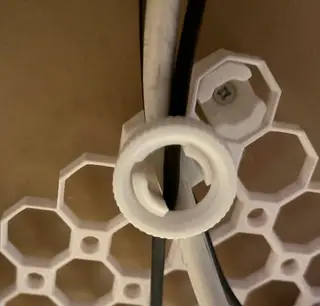

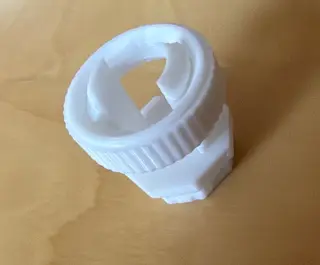

Under-Desk Cable Tie for Multiboard A screw-lock cable holder that snaps into a Multiboard multihole. Ideal for routing cables under your desk. How it works The threaded pot has two opposite windows. Lay your cables straight through the pot, then screw the knurled nut down from the top. The nut ring closes both windows, so the cables can't slip out. You can open it again any time without tools. Sizes All sizes use just one Multiboard cell (25 × 25 mm) and one snap. They differ mainly in height, because cables stack up inside the pot. ┌──────┬───────────┬─────────────┐ │ Size │ Cables │ Post height │ ├──────┼───────────┼─────────────┤ │ S │ 1–2 │ 12 mm │ ├──────┼───────────┼─────────────┤ │ M │ ~5 │ 22 mm │ ├──────┼───────────┼─────────────┤ │ L │ up to ~10 │ 36 mm │ └──────┴───────────┴─────────────┘ Thread Ø 22 mm, inner Ø 14 mm, usable channel width 10.7 mm. The M and L nuts are identical. S has a slightly lower nut (8 mm). Printing - No supports needed - Body: snap down on the bed, threaded post facing up - Nut: print flat; the thread is self-supporting - 0.16 mm layers (0.12 mm for a cleaner thread), 3 walls, 20–25 % infill - PLA or PETG Mounting Push the snap into a multihole and turn it about 1/8 until it locks. Because the base is octagonal, you get 8 orientations in 45° steps. Customize The source is fully parametric (OpenSCAD + BOSL2). If the nut is too tight on your printer, increase thread_slop. Source & STLs: https://github.com/rbartl/multiboard-cable-tie-screw Credits - Built for Multiboard by Jonathan / Keep Making (MULTIBOARD LTD) - Snap geometry by Andy Levesque (MultiConnectOpenSCAD), credit to @David D (Multiconnect) - Mechanism inspired by Under-Desk Cable Tie for OpenGrid System. The geometry here is designed from scratch. License CC BY-NC-SA 4.0 + Multiboard License. Non-commercial only: please don't sell prints. Remixes are welcome under the same terms, with attribution. Not an official Multiboard part, and not affiliated with or endorsed by MULTIBOARD LTD. --- Tags: multiboard, cable management, cable tie, under desk, cable holder, MultiboardRemix
