Cable Soldering Jig
por werz 99 en Printables
Helper for soldering Cables
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a werz 99.
Archivos (12)
- Soldering Jig.stl STL · 550 KB
- Soldering Jig v1.f3d F3D · 186 KB
- Soldering Jig-chamfered.stl STL · 14 KB
- Soldering Jig v5.f3d F3D · 472 KB
- Soldering Jig-Flexible-all.stl STL · 16 KB
- Soldering Jig-flex-bottom.stl STL · 2 KB
- Soldering Jig -flex-right.stl STL · 7 KB
- Soldering Jig-flex- Vice-Insert.stl STL · 2 KB
- Soldering Jig -flex-left.stl STL · 7 KB
- Soldering Jig_0.3mm_PETG_MK3S_54m.gcode GCODE · 964 KB
- Soldering Jig-chamfered_0.3mm_PETG_MK3S_57m.gcode GCODE · 988 KB
- Soldering Jig-Flexible_0.6n_0.4mm_PETG_MK3S_47m.gcode GCODE · 971 KB
- Categoría
- Herramientas
- Formatos
- STL, F3D, GCODE
- Descargas
- 44,425
- Publicado
Sobre este modelo

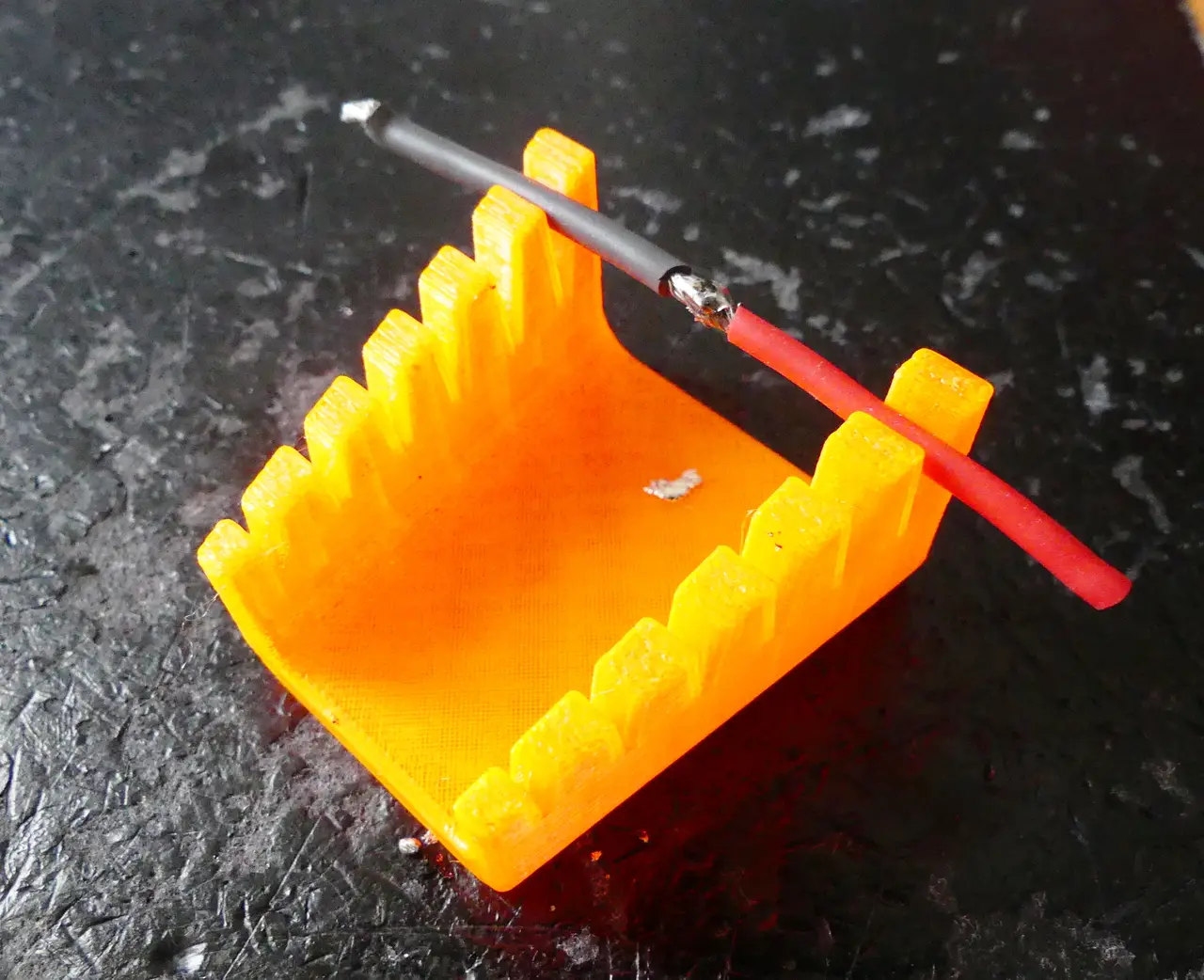

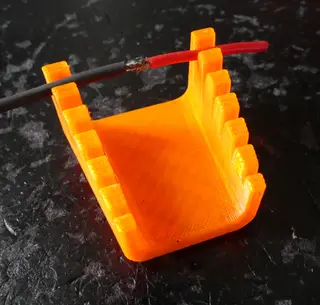

This is a helper for cable soldering. Exchanged to a faster to print design and attached CAD file. Update 16.04.2023: As requested I added a chamfered version of the model.

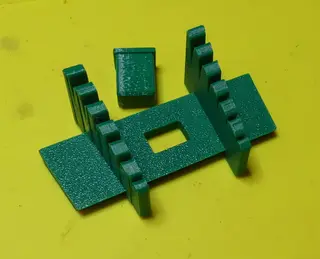

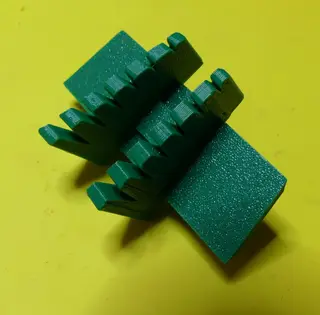

Thanks and Credits to the originator of this print: mistertech https://www.thingiverse.com/thing:1725308 Update 26.01.2024: As there were some remixes which added more fancy fuctionality to this soldering jig. e.g wider, narrower, vice holding capabilities etc. I added a flex-version with variable width and the possibility to add a post for vice clamping. It is based on a dovetail base and you can adjust the width of the jig. Optional you can press in the post. Also added updated Fusion 360 drawing.
