Cable Clip Organizer – Box with 8 Sorting Bins + 72 Printable Cable Clips
por David Vancl en Printables
Box with 8 sorting bins + 72 printable cable clips: saddle, adhesive, tie mounts, 2020/3030 profile, LED strip.
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo sin pedir permiso ni dar crédito.
Al descargar aceptas respetar la licencia y dar crédito a David Vancl.
Archivos (92)
- bin_1_saddle-1-hole.stl STL · 324 KB
- bin_5_tie-mount.stl STL · 260 KB
- bin_3_adhesive-clip.stl STL · 316 KB
- bin_4_screw-clip.stl STL · 312 KB
- bin_2_saddle-2-hole.stl STL · 328 KB
- bin_8_led-strip-clip.stl STL · 255 KB
- bin_6_panel-clip.stl STL · 303 KB
- bin_7_profile-clip.stl STL · 364 KB
- box_body.stl STL · 26 KB
- box_lid_print_face_down.stl STL · 729 KB
- box_lid_text_inlay_MMU.stl STL · 679 KB
- clip_adhesive-clip_D3_std.stl STL · 14 KB
- clip_adhesive-clip_D4_std.stl STL · 16 KB
- clip_adhesive-clip_D10_std.stl STL · 26 KB
- clip_adhesive-clip_D6_std.stl STL · 19 KB
- clip_adhesive-clip_D8_std.stl STL · 23 KB
- clip_adhesive-clip_D12_std.stl STL · 30 KB
- clip_led-strip-clip_W8_ip65.stl STL · 22 KB
- clip_led-strip-clip_W5_bare.stl STL · 22 KB
- clip_led-strip-clip_W15_ip65.stl STL · 22 KB
- clip_led-strip-clip_W10_bare.stl STL · 22 KB
- clip_led-strip-clip_W8_bare.stl STL · 22 KB
- clip_led-strip-clip_W12_bare.stl STL · 22 KB
- clip_led-strip-clip_W10_ip65.stl STL · 22 KB
- clip_led-strip-clip_W20_bare.stl STL · 22 KB
- clip_led-strip-clip_W20_ip65.stl STL · 22 KB
- clip_led-strip-clip_W15_bare.stl STL · 22 KB
- clip_led-strip-clip_W12_ip65.stl STL · 22 KB
- clip_led-strip-clip_W5_ip65.stl STL · 22 KB
- clip_panel-clip_D3_3.0.stl STL · 12 KB
- clip_panel-clip_D3_1.5.stl STL · 11 KB
- clip_panel-clip_D6_3.0.stl STL · 18 KB
- clip_panel-clip_D8_1.5.stl STL · 25 KB
- clip_panel-clip_D10_3.0.stl STL · 29 KB
- clip_panel-clip_D10_1.5.stl STL · 30 KB
- clip_panel-clip_D8_3.0.stl STL · 24 KB
- clip_panel-clip_D4_1.5.stl STL · 14 KB
- clip_panel-clip_D12_3.0.stl STL · 35 KB
- clip_panel-clip_D6_1.5.stl STL · 19 KB
- clip_panel-clip_D12_1.5.stl STL · 36 KB
- clip_panel-clip_D4_3.0.stl STL · 13 KB
- clip_profile-clip_D6_3030.stl STL · 18 KB
- clip_profile-clip_D3_3030.stl STL · 14 KB
- clip_profile-clip_D6_2020.stl STL · 20 KB
- clip_profile-clip_D10_2020.stl STL · 31 KB
- clip_profile-clip_D8_2020.stl STL · 25 KB
- clip_profile-clip_D3_2020.stl STL · 12 KB
- clip_profile-clip_D12_3030.stl STL · 34 KB
- clip_profile-clip_D4_3030.stl STL · 15 KB
- clip_profile-clip_D8_3030.stl STL · 24 KB
- clip_profile-clip_D12_2020.stl STL · 36 KB
- clip_profile-clip_D4_2020.stl STL · 14 KB
- clip_profile-clip_D10_3030.stl STL · 29 KB
- clip_saddle-1-hole_D3_std.stl STL · 20 KB
- clip_saddle-1-hole_D4_std.stl STL · 23 KB
- clip_saddle-1-hole_D8_std.stl STL · 32 KB
- clip_saddle-1-hole_D12_std.stl STL · 39 KB
- clip_saddle-1-hole_D10_std.stl STL · 35 KB
- clip_saddle-1-hole_D6_std.stl STL · 26 KB
- clip_saddle-2-hole_D6_std.stl STL · 34 KB
- Categoría
- Repuestos
- Formatos
- STL, 3MF
- Descargas
- 0
- Publicado
Sobre este modelo

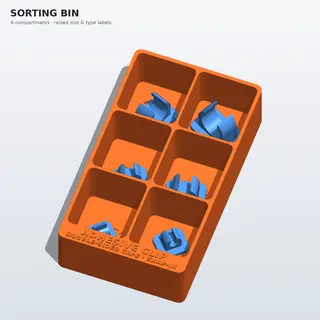

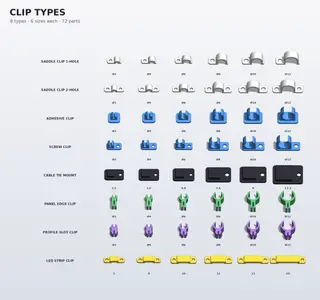

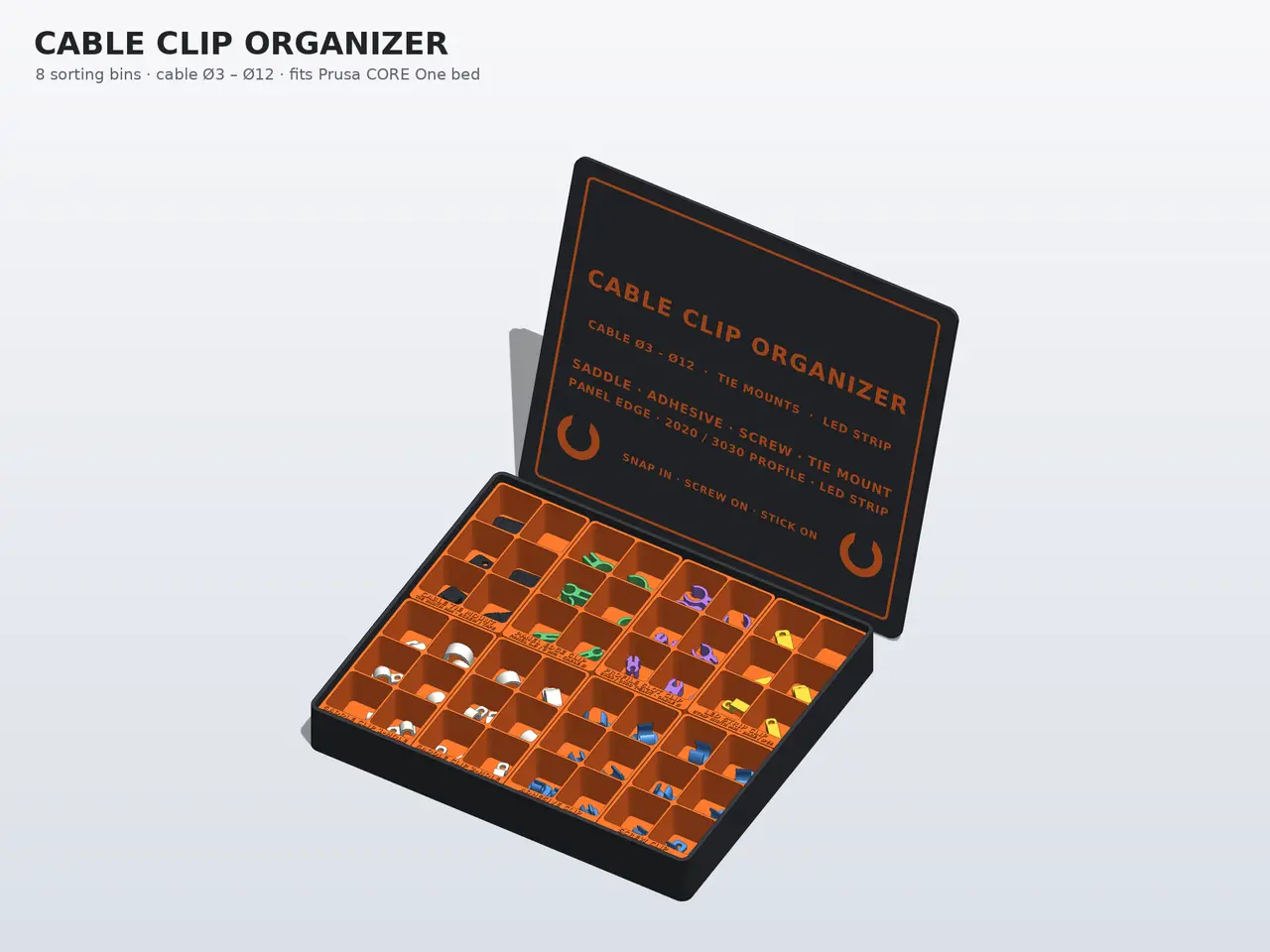

A box with 8 removable bins, one per clip type, and 72 printable cable clips for cables from Ø3 to Ø12 mm. Every bin has 6 compartments with raised size labels. The lid has an engraved title. Clip types - SADDLE CLIP 1-HOLE / 2-HOLE – screw-on, cable Ø3–12
- ADHESIVE CLIP – snap-in, base for double-sided tape
- SCREW CLIP – snap-in, side screw tab
- CABLE TIE MOUNT – for ties 2.5–12.5 mm, screw or tape base

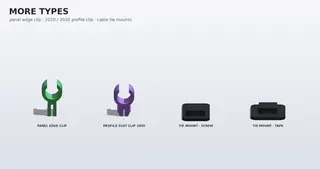

- PANEL EDGE CLIP – pushes onto 1.5 / 3 mm panel edges
- PROFILE SLOT CLIP – snaps into 2020 / 3030 T-slot profiles
- LED STRIP CLIP – strips 5–20 mm wide, bare or IP65
Printing - Clips: PETG (it flexes for snap-in), 100 % infill, no supports. Panel and profile clips print flat, the others print standing.

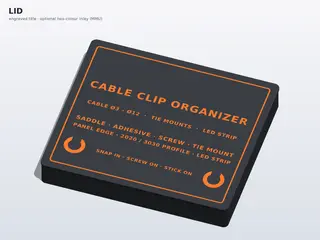

- Box, bins and lid: PLA or PETG, 0.2 mm, 15 % infill. The lid prints face-down, and a text inlay is included for two colours.
- Optional colour labels on the bins: add M600 at 1.2 mm and 24.0 mm.
- Screw holes: M3 (small clips) and M4 (Ø8+).
Designed & built by Ing. TULák GitHub: https://github.com/davidvancl Printed it? Share a Make! Questions or ideas? Drop them in the comments. Thanks for printing – may your cables never tangle again! 🔌
