ButtPals Bread Clip - Remix
por MERoy en Printables
More flexible and slimmer design, harder to break
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a MERoy.
Archivos (3)
- Categoría
- Hogar
- Formatos
- STL, GCODE
- Descargas
- 4,319
- Publicado
Sobre este modelo

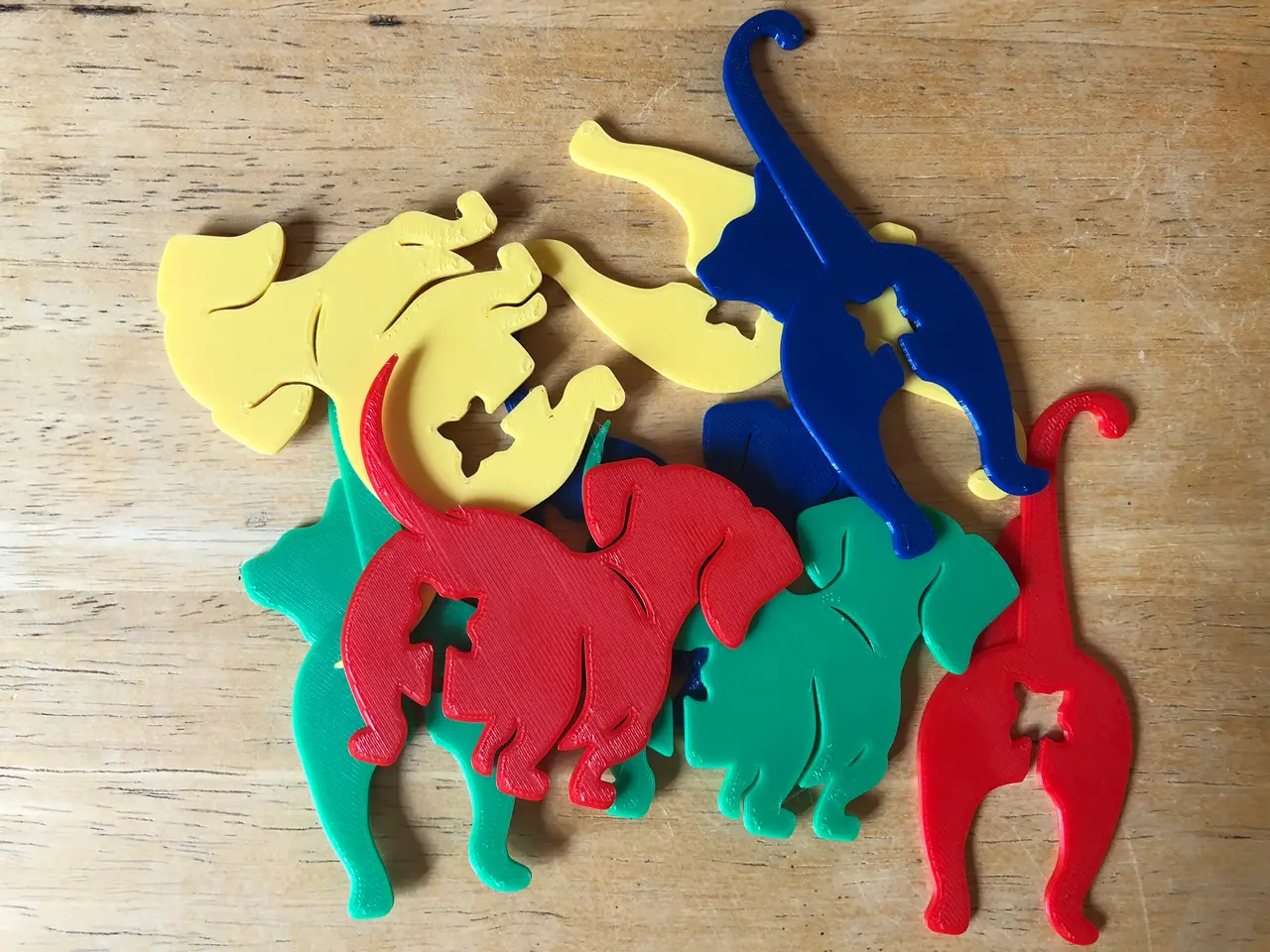

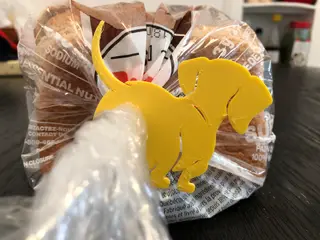

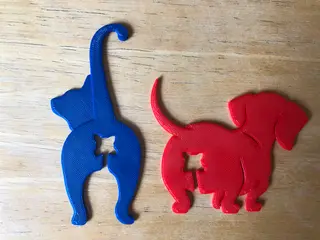

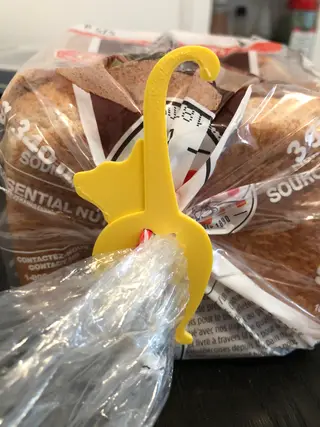

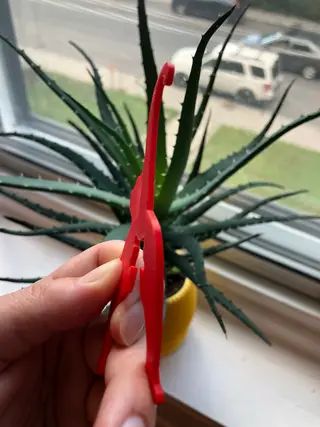

I love the original ButtPals design by dgoalva but I like to twist my bread clip to put it on and off and the original design was to thick to give me that freedom. So I printed them at 2 mm height and noticed a weak point breaking the clip at the first use if printed in PLA or PETG. In this remix, I lowered their butts so the weak point from the butt to the tail is strong enough to support torsion. The STL files are 2 mm thick, which is the thickness I've tested. I added pictures comparing the remix (green or blue) with the original design (silver), both printed at 2 mm thickness, after I've put them on and off a bread bag once. We can clearly see the difference at the weak point.
My printer settings Printer: Prusa iMK3S+ Filament: PLA or PETG Nozzle: 0.4 mm Layer height: 0.2 mm I added the GCODE file I used to print them.
Descripción original del autor, publicada en Printables.
