Bushnell Match Pro Arca Tripod Adapter
I threw together this model to attach my Match Pro ED 15x56 Binoculars to my tripod that has a ball head with an Arca clamp. The way these work, remove the protector on the front that the "Bridge Set" adapter would go into. I used the screw from the bridge set adapter as well, you just undo a circli
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesLICENSE
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Drew C.
Archivos (4)
- Match Pro Tripod Adapter.3mf 3MF · 32 KB
- Binocular Tripod Adapter v8.step STEP
- Binocular Tripod Adapter v9.f3d F3D
- Binocular Adapter.3mf 3MF
- Categoría
- Varios
- Formatos
- 3MF, STEP, F3D
- Descargas
- 3
- Publicado
Sobre este modelo

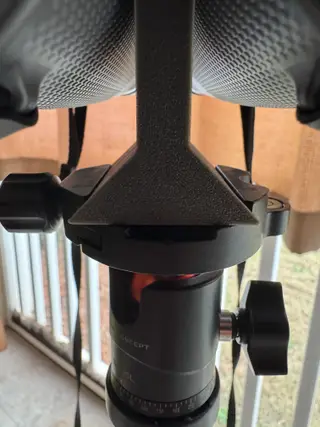

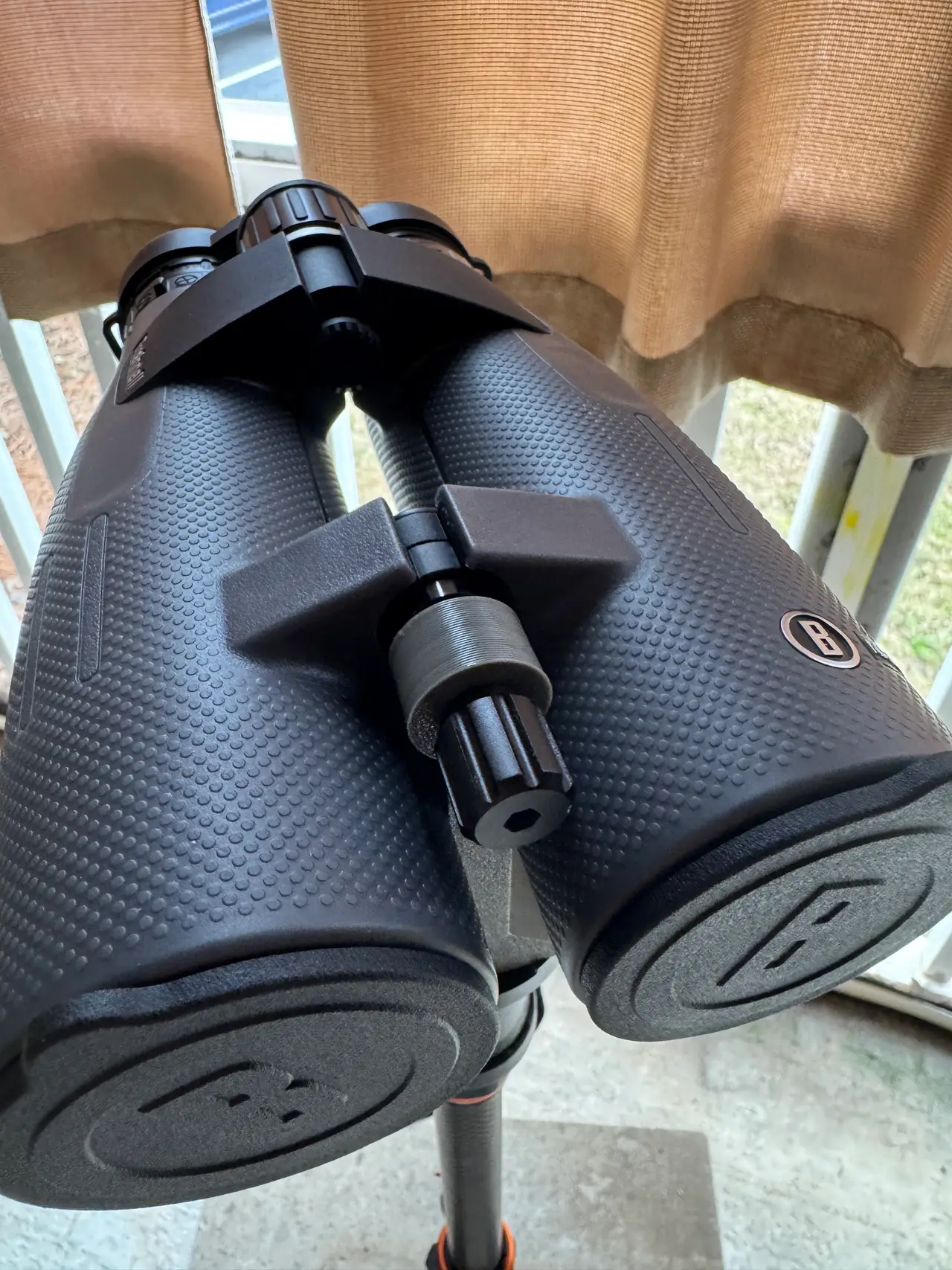

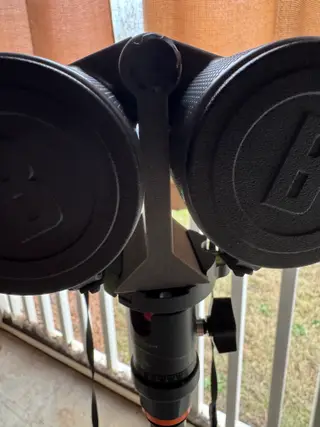

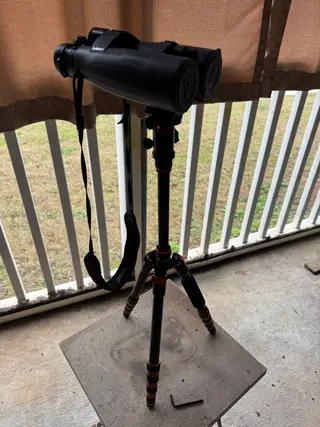

I threw together this model to attach my Match Pro ED 15x56 Binoculars to my tripod that has a ball head with an Arca clamp. The way these work, remove the protector on the front that the "Bridge Set" adapter would go into. I used the screw from the bridge set adapter as well, you just undo a circlip and then it'll come apart.
I've also uploaded the Fusion 360 file and a step file. The F3D file is parametric and you can adjust the screw diameter, thicknesses, length, etc.
Descripción original del autor, publicada en Thangs.
