Build-A-Droid: CyberBrick based robot kit
por Neebick en MakerWorld
I am proud to offer a custom astromech droid kit that is compatible with the CyberBrick kit. Please be aware that there is a lot of pieces to this kit. It is best to view it as model that will take a little bit to assemble. I did this to offer better color choices and to make print failures less…
MakerWorld entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Neebick.
Archivos (112)
- Astromech Body.stl STL · 8,1 MB
- Body Button.stl STL · 143 KB
- Body Leg Grill (1).stl STL · 247 KB
- Body Leg Grill Detail (1).stl STL · 13 KB
- Body Leg Grill Detail.stl STL · 13 KB
- Body Leg Grill.stl STL · 244 KB
- Body Panel Grill (2).stl STL · 309 KB
- Body Panel Grill Detail (1).stl STL · 10 KB
- Bearing Roller.stl STL · 484 KB
- Body Panel Lower (1) (1) (1) (1) (1).stl STL · 310 KB
- Body Panel Grill.stl STL · 308 KB
- Body Panel Lower.stl STL · 288 KB
- Body Panel Lower (1) (1) (1) (1).stl STL · 310 KB
- Body Power Coupler Triangle 6.stl STL · 350 KB
- Body Power Coupler Triangle 3.stl STL · 130 KB
- Body Panel Grill Detail.stl STL · 10 KB
- Body Utility Arm Lower.stl STL · 1,1 MB
- Body Utility Arm Upper.stl STL · 1,1 MB
- Center Foot (1).stl STL · 4,0 MB
- Center Foot Rod.stl STL · 82 KB
- Center Foot Ankle.stl STL · 464 KB
- Cyberbrick Droid.step STEP · 60,2 MB
- Electronics Housing Brace.stl STL · 1,1 MB
- Dome Gear.stl STL · 394 KB
- Double Screen Diffuser.stl STL · 964 KB
- Body Power Coupler.stl STL · 1,4 MB
- Foot End Cover Blank.stl STL · 65 KB
- Foot End Cover Cable.stl STL · 102 KB
- Leg Ankle Detail Blue (2).stl STL · 1 KB
- Electronics Housing.stl STL · 445 KB
- Leg Ankle Detail Silver.stl STL · 533 KB
- Leg Cylinder Center.stl STL · 129 KB
- Leg Cylinder End.stl STL · 226 KB
- Leg Cylinder Rod.stl STL · 76 KB
- Leg Hip Joint Left.stl STL · 785 KB
- Leg Lubrication Fitting.stl STL · 561 KB
- Leg Collar.stl STL · 305 KB
- Dome Rear Round Light Mount.stl STL · 81 KB
- Dome Double Screen Light Mount.stl STL · 52 KB
- Leg rotation Peg.stl STL · 4 KB
- Leg Rotaton Limiter.stl STL · 4 KB
- Leg Stabilizer.stl STL · 459 KB
- Lower Outer Leg.stl STL · 713 KB
- Motor Housing Cover Righ.stl STL · 268 KB
- Motor Housing Cover.stl STL · 268 KB
- Motor Housing.stl STL · 314 KB
- Octagon vent.stl STL · 791 KB
- Motor Housing Right.stl STL · 314 KB
- Outer Leg Center Detail.stl STL · 730 KB
- Power Switch Cover.stl STL · 331 KB
- Rear Motor Axle.stl STL · 96 KB
- Outer Leg Center.stl STL · 663 KB
- Leg Hip Joint Right.stl STL · 803 KB
- Rotation Limit.stl STL · 9 KB
- Side Foot Cable Coupler.stl STL · 444 KB
- Side Foot Cap.stl STL · 458 KB
- Side Foot Detail Jewel.stl STL · 219 KB
- Side Foot Detail.stl STL · 405 KB
- Side Foot Rod.stl STL · 85 KB
- Side Foot.stl STL · 3,6 MB
- Categoría
- Varios
- Formatos
- STL, STEP, 3MF
- Descargas
- 10,435
- Publicado
Sobre este modelo

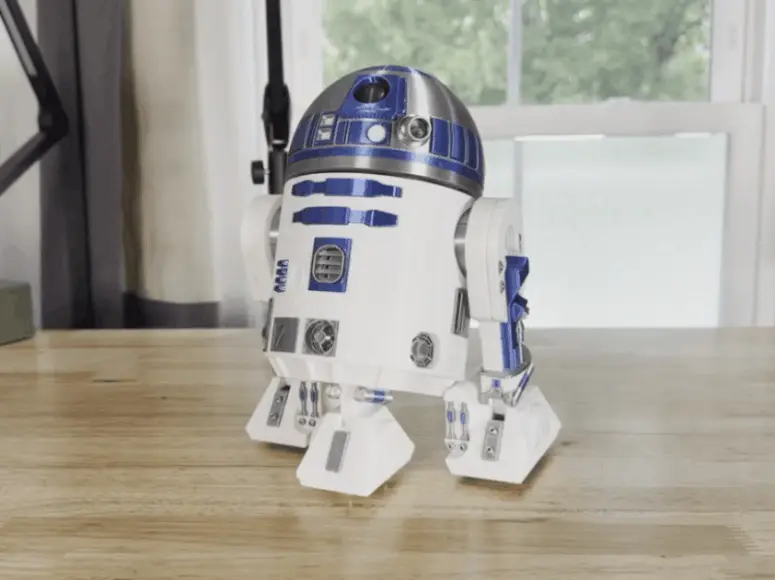

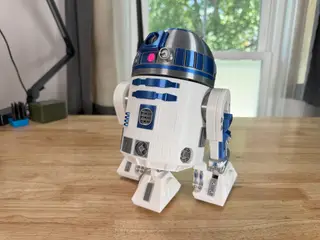

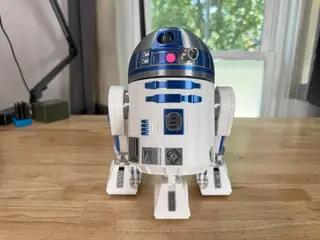

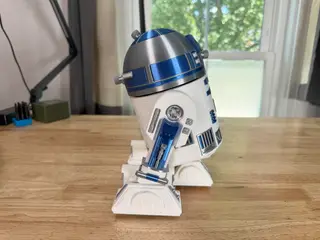

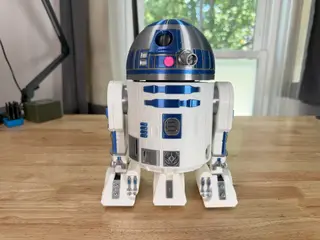

I am proud to offer a custom astromech droid kit that is compatible with the CyberBrick kit. Please be aware that there is a lot of pieces to this kit. It is best to view it as model that will take a little bit to assemble. I did this to offer better color choices and to make print failures less of an issue with filament usage. I printed the dome and many components in silk pla with great results.
The body and legs are shorter but this was done for easier printing and better stability. I have rounded and simplified many surfaces to give a “cuter” appearance for the size. This also allows faster better printing due to less sharp changes in print direction.
It currently can move about and rotate its head 180 degrees both directions. There are led lights in the dome.
Please see included pdf for assembly instructions.
I have tried to keep to only the parts in the Cyberbrick kit but there some extra parts that will be needed: ball bearing ring for the dome rotation, 12mm balls for omnidirectional movement of center foot, wire extension for motors in feet, and a coupler for that wire. All screws required are already in the cyberbrick kit.
There are holes on the side feet that are intended for tubing/wiring. They are sized for standard filament. Copper wire could also be used.
The dome is a separate profile to make it more clear that the body can be swapped with different heads. Hope to have some other choices soon.
I have added a 3mf file of an assembled droid. Use it to test out color combos instead of guessing how it will look. Look for file “Full Body Color Testing DO NOT PRINT.3mf” under the download option and open in Bambu studio.
I am publishing this under a creative commons license for others to remix and add new components. Please see the included step file if you are interested. Possible future add-ons are new head options, faster motors, better led programming, more leds, and much more. I look forward to everyone's ideas.
