Brennenstuhl Premium-Line Power Strip Clip-On-Adapter for SKADIS

Motivation I wanted to design a flexible holder for Brennenstuhl power strips of various types (n-way). It should work with any housing from the Brennenstuhl Premium-Line (single row). Easy mounting and unmounting should be possible, while still providing firm hold. The mounting brackets should not interfere with plugs or switches on the front side of the outlet.

Depending on the usage of the n-way power strip (only small power supplies / regular plugging or unplugging of Schuko-cables), two designs were created:

a) horizontal power strip position, light weight, medium retention force, medium plugging forces, model file: BrennenstuhlPremiumLineHolderSkadis_v00.stl

b) horizontal power strip position, strong version, higher retention force, stronger plugging forces model file: BrennenstuhlPremiumLineHolderSkadis_v05.stl

this model for SKADIS pegboards from another hook project: Print The material recommended is PETG, as during usage the holders have to keep the extension lead n-way housing in position and must support the weight of the housing plus cables and power supplies plugged into it.. Printed with SUNLU PETG (Red).

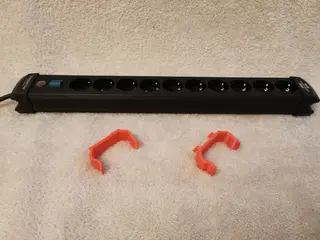

[ SKADIS Brennenstuhl Premium-Line Clip-On-Brackets] 2x Clip-On bracket (light) = BrennenstuhlPremiumLineHolderSkadis_v00.stl or 2x Clip-On bracket (strong) = BrennenstuhlPremiumLineHolderSkadis_v05.stl

For models with large housings, an optional third bracket can enhance stability.

(support: organic) (brim: recommended (depending on sheet: smooth, satin -> no brim / textured -> brim) (print orientation: side face of bracket down) (colour: Any colour you like ;-) Assembly Two holders are required for each Brennenstuhl Premium-Line Extension Lead n-Way (minimum) Larger housings might require an additional bracket for a firm fit during use. The brackets are designed for a horizontal assembly of the power strip.

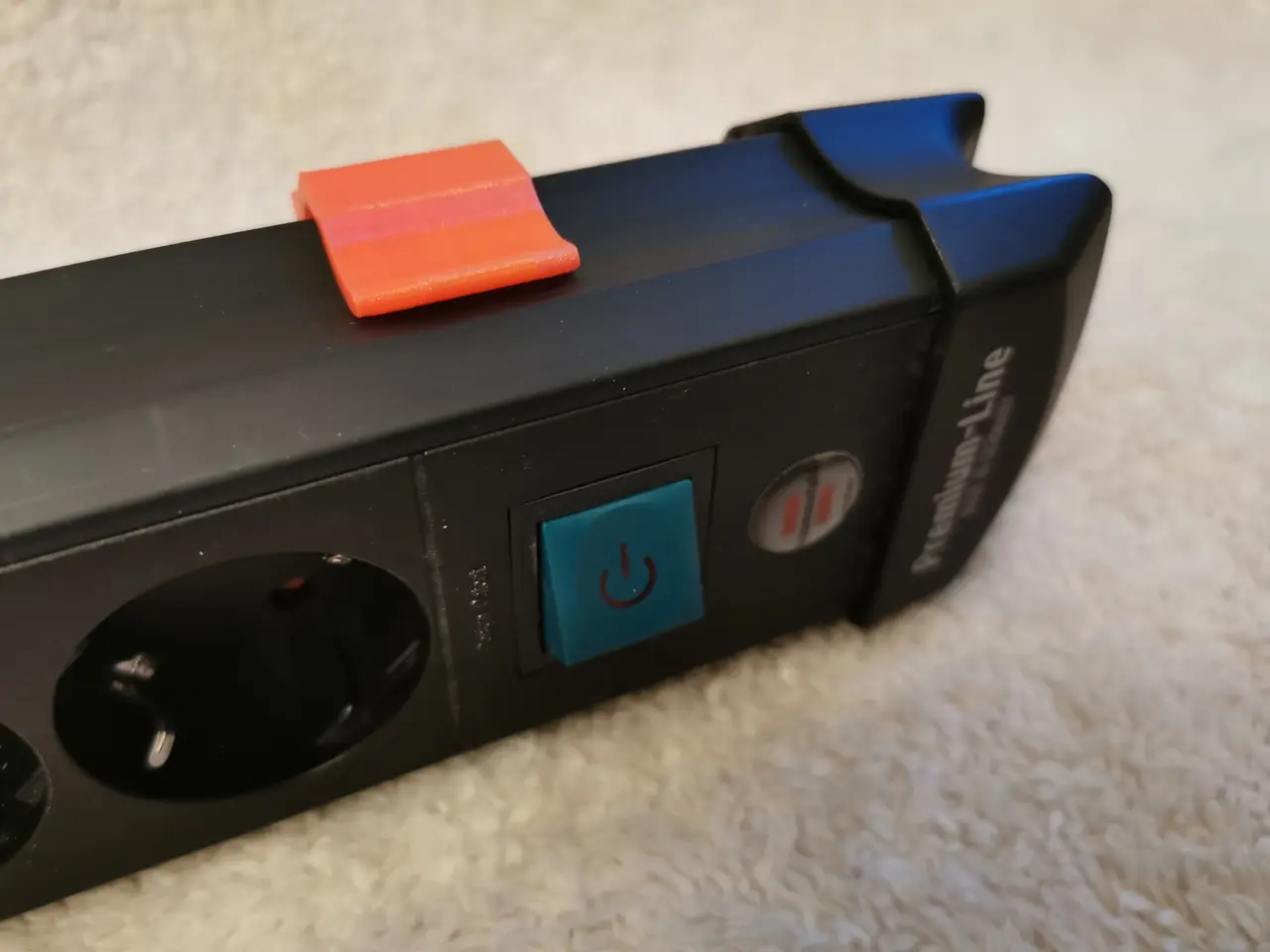

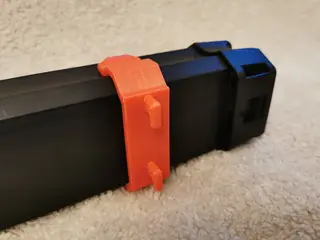

Just clip the brackets onto the Brennenstuhl housing, noses of the SKADIS-hooks facing downwards (same direction).

You easily can adjust the position of the brackets, so they are aligned with the corresponding holes on the SKADIS-pegboard. This will work for any Brennenstuhl Premium-Line housing (single row).

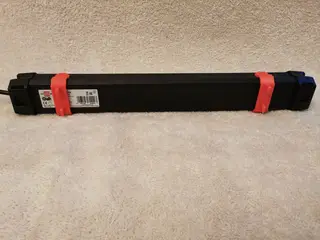

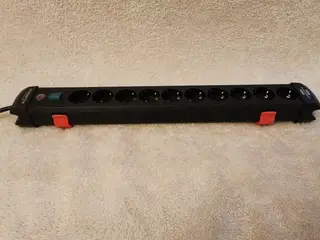

Place the brackets on opposite sides of the housing for stable support.

Hook the brackets into the pegboard ... and have fun using it!
