Breadboard Spring Vise for Arduino or Raspberry Pi
por Pat Regan en Thingiverse
The Breadboard Spring Vise makes it easy to hold circuit boards of various sizes in place next to your breadboard. It has no trouble accommodating larger, full-size Arduino Uno or Leonardo boards, and it has no trouble grabbing onto a diminutive ESP-01 ESP8266 board. The Raspberry Pi fits in the...
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Pat Regan.
Archivos (5)
- Categoría
- Tecnología
- Formatos
- STL, SCAD
- Descargas
- 14,651
- Publicado
Sobre este modelo

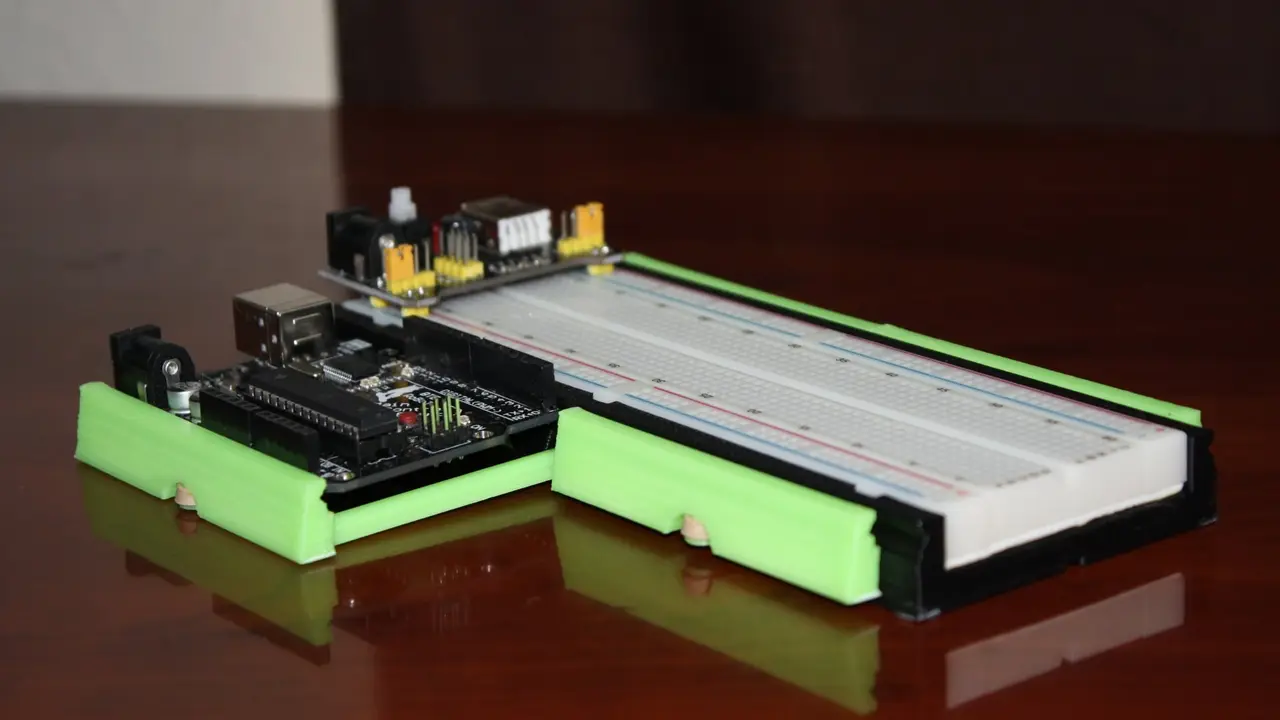

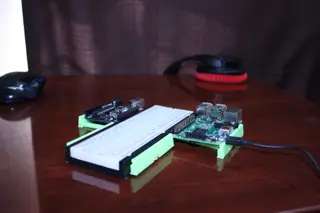

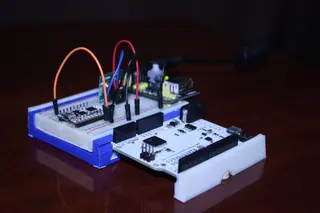

The Breadboard Spring Vise makes it easy to hold circuit boards of various sizes in place next to your breadboard. It has no trouble accommodating larger, full-size Arduino Uno or Leonardo boards, and it has no trouble grabbing onto a diminutive ESP-01 ESP8266 board. The Raspberry Pi fits in the jaws, and it stays in place quite well, but the micro USB and HDMI ports prevent the outside of the board from landing correctly in the grooves of the jaw. The "version 3" jaws are narrow enough at the top to allow a USB cable to be plugged into the Pi. - Breadboard Spring Vise at Tindie - Breadboard Spring Vise at patshead.com - Breadboard Spring Vise at Github - Breadboard Spring Vise at YouTube
You should also check out the Simple Component Box for Breadboard Spring Vise! I am using #32 rubber bands.
Descripción original del autor, publicada en Thingiverse.
