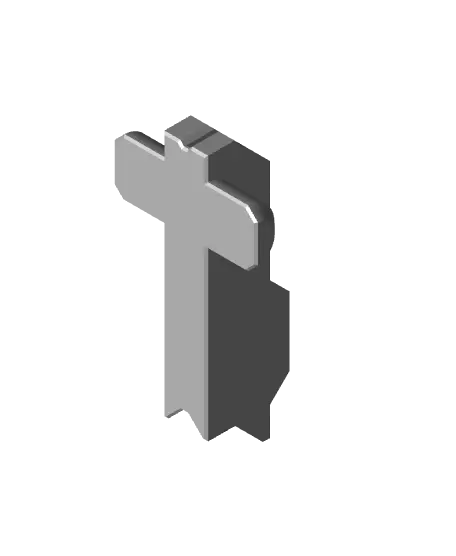

Bracket to Bin Joint - 1 LU Bin Fit - OX Fold-In Locked Lite Rail (1 MU Rail)
por Jonathan K en Thangs
Use this part to connect a horizontal Multibin Shell to a Bolt-Locked Bracket (https://link.Multiboard.io/bolt-locked-brackets). You will also need a Locking Bolt To Small Thread (https://than.gs/m/1323138).
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesMULTIBOARD LICENCE - Download Terms and Conditions - 12-June-2024
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Jonathan K.
Archivos (1)
- Bracket to Bin Joint - OX Rail Pop-In.stl STL · 143 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 1,404
- Publicado
Sobre este modelo

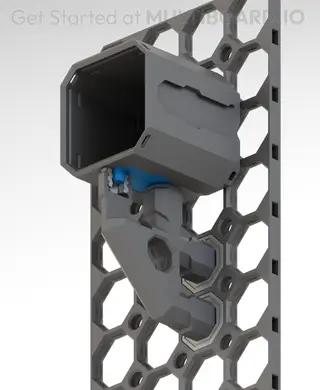

Use this part to connect a horizontal Multibin Shell to a Bolt-Locked Bracket (https://link.Multiboard.io/bolt-locked-brackets). You will also need a Locking Bolt To Small Thread (https://than.gs/m/1323138).

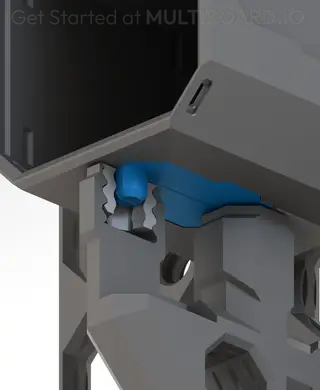

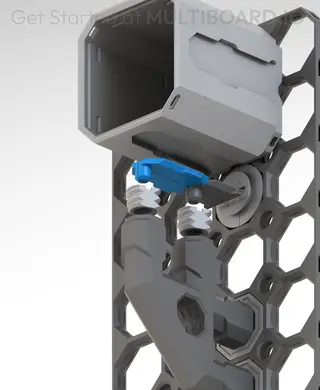

"Rail Pop-Ins" securely attach to the Rail Slots of Multibins by unfolding and "popping" into place. Unlike a Rail, Pop-Ins will not slide off.

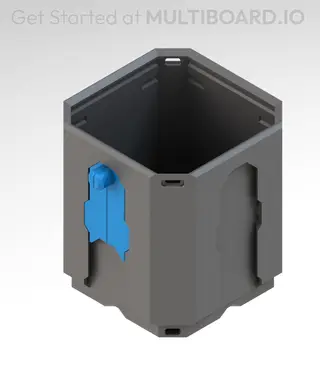

This is an "OX" Pop-In, which represents its shape and length (Look at the images to understand).
Learn more about this part at https://multiboard.io/knowledge-hub
Printing Guidelines:
Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.
The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
---
This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
