Bracket Mount for Elecrow 7 Inch screen and Raspberry Pi 4B with PoE
A simple wall mount bracket for the Elecrow 7inch touchscreen and Raspberry Pi 4B mounted on the back with PoE hat. Can be mounted to the wall in any direction with the mounting slots.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Bryan W.
Archivos (2)
- Elecrow 7 Inch Pi 4B PoE Enclosure.3mf 3MF · 476 KB
- Elecrow 7 Inch Pi 4B PoE Enclosure.step STEP · 467 KB
- Categoría
- Tecnología
- Formatos
- 3MF, STEP
- Descargas
- 82
- Publicado
Sobre este modelo

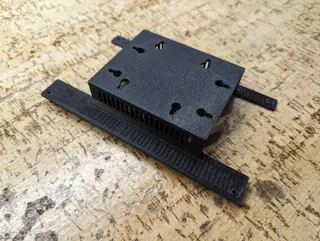

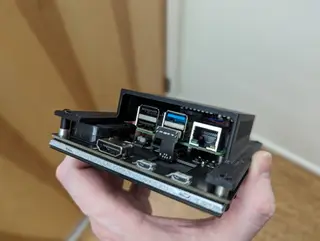

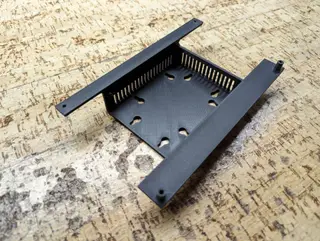

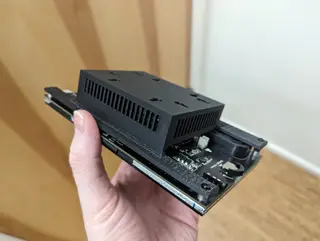

A simple wall mount bracket for the Elecrow 7inch touchscreen and Raspberry Pi 4B mounted on the back with PoE hat. Can be mounted to the wall in any direction with the mounting slots.
Takes two M2.5x12 and two M2.5x4 to mount to the back of the touch screen.
OnShape project here (https://cad.onshape.com/documents/4222d7943f6eac6b572cbde4/w/8acca6989d116c24a060c20a/e/d4e2f695cb3beede0677bd85)
