Brabeast
por Steve Wood en Thingiverse
Based upon the famous walking Strandbeest from Theo Jansen ( http://www.strandbeest.com ). This is a modular clip together system that is FDM printer friendly. No support required. I have curved the links in an organic way such that the shape of the leg section looks ahem "bra" like, hence the...
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Steve Wood.
Archivos (18)
- PIN.stl STL · 23 KB
- CRANK_ARM.stl STL · 21 KB
- CRANK_SHAFT.stl STL · 20 KB
- MID_LINK.stl STL · 45 KB
- BEAM.stl STL · 81 KB
- UPPER_LINK.stl STL · 65 KB
- INNER_LINK.stl STL · 53 KB
- OUTER_LINK.stl STL · 80 KB
- LEG.stl STL · 88 KB
- BRABEAST_LEG_SECTION.stl STL · 312 KB
- END_BEAM.stl STL · 61 KB
- TRIANGLE_BRACE.stl STL · 97 KB
- PLATE_PRINT_ONCE.stl STL · 71 KB
- CRANK_SHAFT_ADAPTER.stl STL · 10 KB
- SPACER.stl STL · 16 KB
- PLATE_LEG_SECTION.stl STL · 1,2 MB
- BRABEAST.stl STL · 3,7 MB
- BRABEAST.stp STP · 2,5 MB
- Categoría
- Figuras y arte
- Formatos
- STL, STP
- Descargas
- 37,189
- Publicado
Sobre este modelo

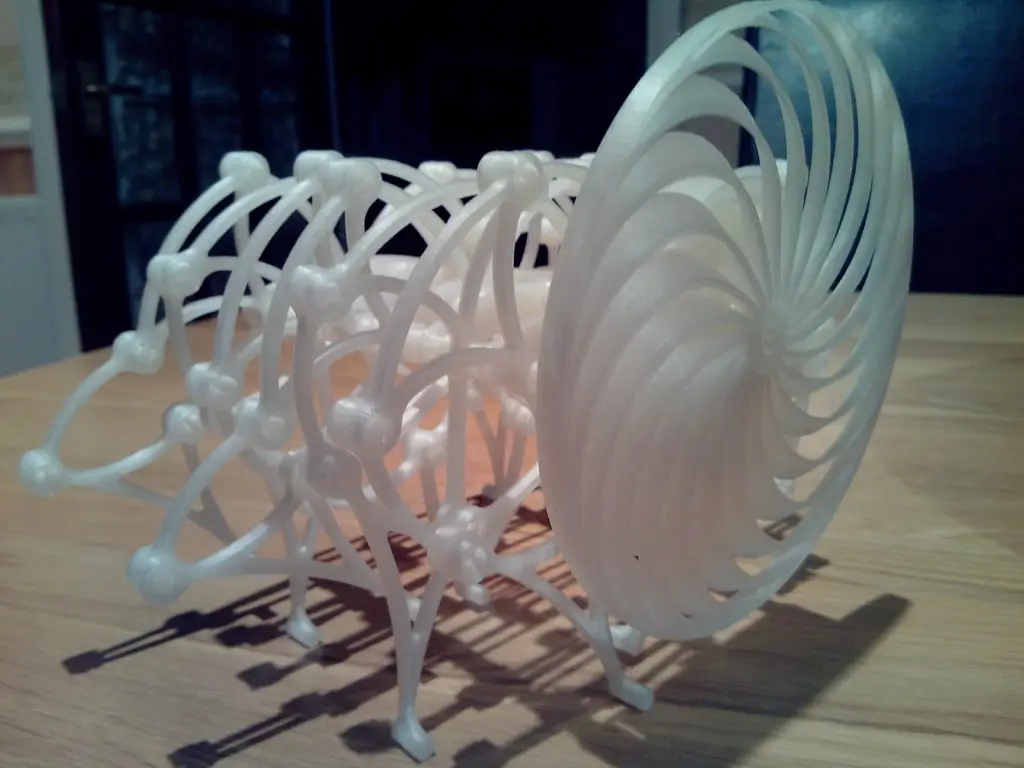

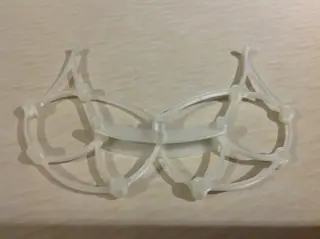

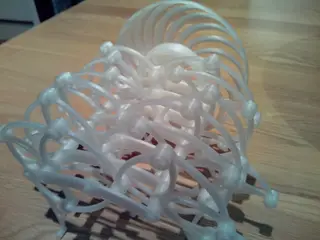

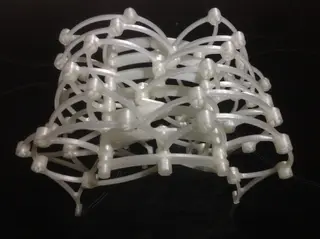

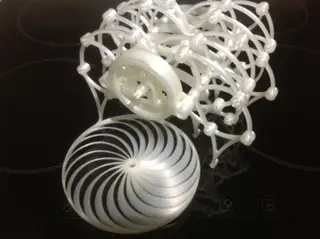

Based upon the famous walking Strandbeest from Theo Jansen ( http://www.strandbeest.com ). This is a modular clip together system that is FDM printer friendly. No support required. I have curved the links in an organic way such that the shape of the leg section looks ahem "bra" like, hence the name. If you are having trouble with the cranks, try this re-mixed version from Vivifyer: http://www.thingiverse.com/thing:207351 EDIT 07/09/2015 : Added a step file of the assembly so you can import into the CAD package of your choice. See videos : http://youtu.be/PdvfL4GfMk0 http://youtu.be/vUjEQ_0bEqg http://www.gyrobot.co.uk http://www.facebook.com/gyrobotuk
Descripción original del autor, publicada en Thingiverse.
