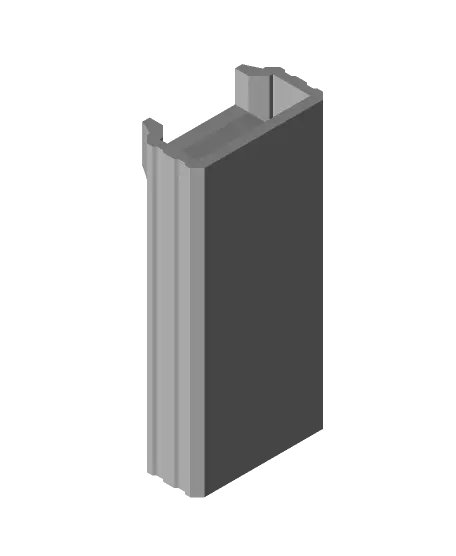

Box for Chorus RF Laptimer
Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:2473007.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesLICENSE
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Luís C.
Archivos (8)
- BT-Box.stl STL · 14 KB
- BT-Lid.stl STL · 9 KB
- LT-FixingBar-A.stl STL · 62 KB
- LT-FixingBar-B.stl STL · 163 KB
- LapTimerBoxSideA_ShortVersion.stl STL · 128 KB
- LapTimerBoxSideA_TallVersion.stl STL · 128 KB
- LapTimerBoxSideB_ShortVersion.stl STL · 42 KB
- LapTimerBoxSideB_TallVersion.stl STL · 41 KB
- Categoría
- Repuestos
- Formatos
- STL
- Descargas
- 4
- Publicado
Sobre este modelo
Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:2473007.

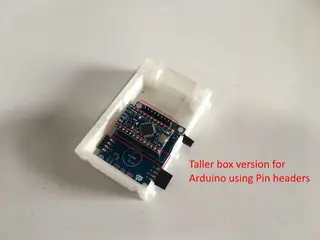

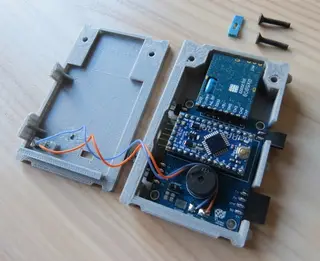

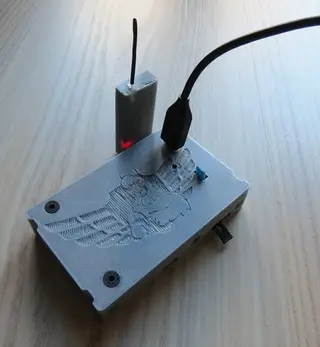

Simple box for the Chorus RF Laptimer. My teammate (João Reis) made the PCB project for this fantastic open project and i decided that it should have a box for protection and ease of use. Made two versions, one using the arduino directly soldered to the PCB, and the other for the arduino plugged with Pin Headers. We are powering the laptimer from a powerbank using a micro usb port.

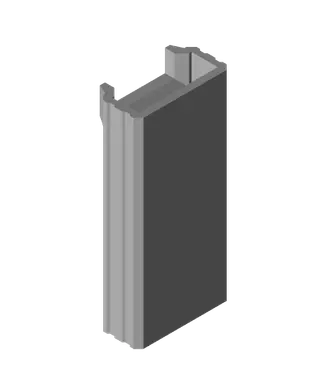

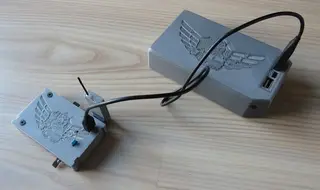

I Inclued aswell a small protection for the bluetooth module and simple rack system to mount the 4 laptimer together.
Main project from Andrey Voroshkov. All Credits goes to him, thanks for this awesome project.
https://github.com/voroshkov/Chorus-RF-Laptimer
